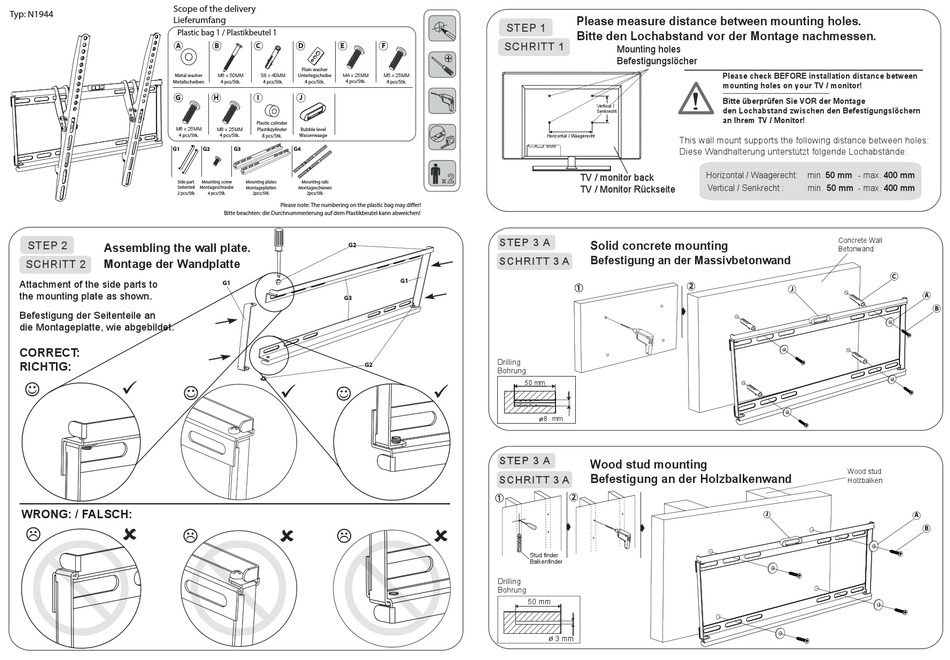

Scope of the delivery

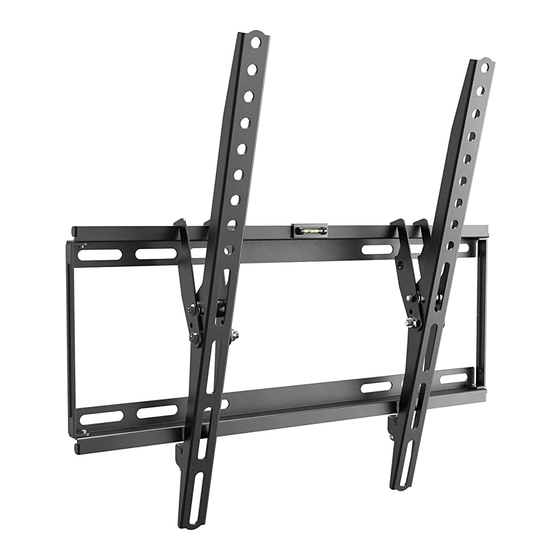

Typ: N1944
Lieferumfang
Plastic bag 1 / Plastikbeutel 1
A
Metal washer
Metallscheiben
G
M6 x 25MM
4 pcs/Stk.
G1
Side part
Seitenteil
2 pcs/Stk.
STEP 2
Assembling the wall plate.
Montage der Wandplatte
SCHRITT 2
Attachment of the side parts to
the mounting plate as shown.
Befestigung der Seitenteile an
die Montageplatte, wie abgebildet.
CORRECT:
RICHTIG:
WRONG: / FALSCH:
B
C
D
E
Plain washer
M6 x 50MM
S8 x 40MM
M4 x 25MM
Unterlegscheibe
4 pcs/Stk.
4 pcs/Stk.
4 pcs/Stk.
4 pcs/Stk.
H
I
J
Plastic cylinder
M8 x 25MM
Plastikzylinder
Bubble level
4 pcs/Stk.
8 pcs/Stk.
Wasserwaage
G4
G2
G3
Mounting screw
Mounting plates
Mounting rails
Montageschraube
Montageplatten
Montageschienen
4 pcs/Stk.
2pcs/Stk.
2pcs/Stk.
Please note: The numbering on the plastic bag may di er!
Bitte beachten: die Durchnummerierung auf dem Plastikbeutel kann abweichen!
G2
G1
G3
G2
STEP 1
SCHRITT 1
F
M5 x 25MM
4 pcs/Stk.
Horizontal / Waagerecht
STEP 3 A
SCHRITT 3 A
G1
Drilling
Bohrung
50 mm
8
STEP 3 A
SCHRITT 3 A
1
Stud finder
Balkenfinder
Drilling
Bohrung
50 mm
3 mm
Please measure distance between mounting holes.
Bitte den Lochabstand vor der Montage nachmessen.
Mounting holes
Befestigungslöcher
Please check BEFORE installation distance between
mounting holes on your TV / monitor!
!
Bitte überprüfen Sie VOR der Montage
Vertical /
den Lochabstand zwischen den Befestigungslöchern
Senkrecht
an Ihrem TV / Monitor!
This wall mount supports the following distance between holes:
Diese Wandhalterung unterstützt folgende Lochabstände:
Horizontal / Waagerecht:
TV / monitor back
Vertical / Senkrecht :
TV / Monitor Rückseite
Solid concrete mounting
Befestigung an der Massivbetonwand
1
Wood stud mounting
Befestigung an der Holzbalkenwand
min. 50 mm - max. 400 mm
min. 50 mm - max. 400 mm
Concrete Wall
Betonwand
C
J
A
B
Wood stud
Holzbalken
J
A
B
