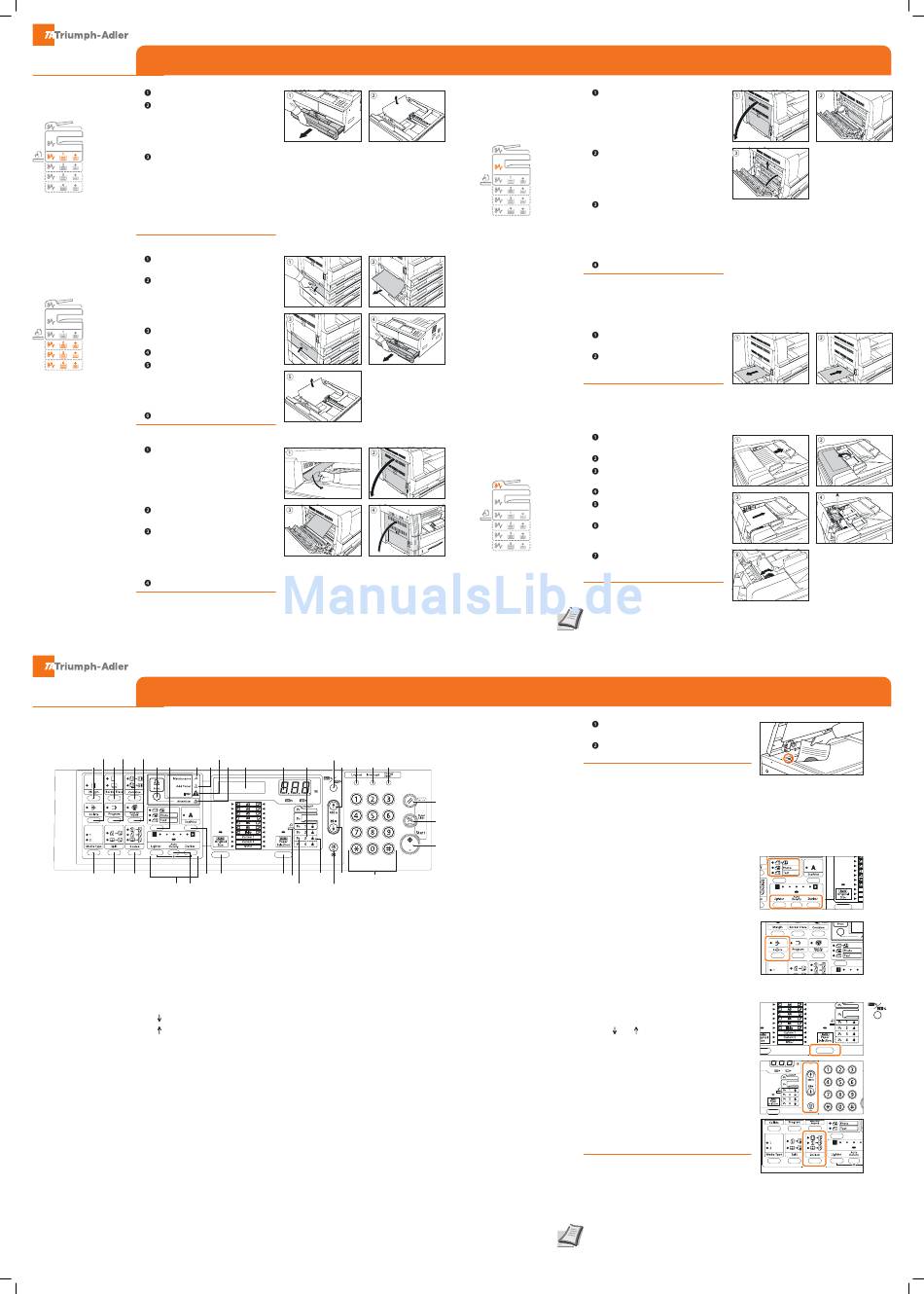

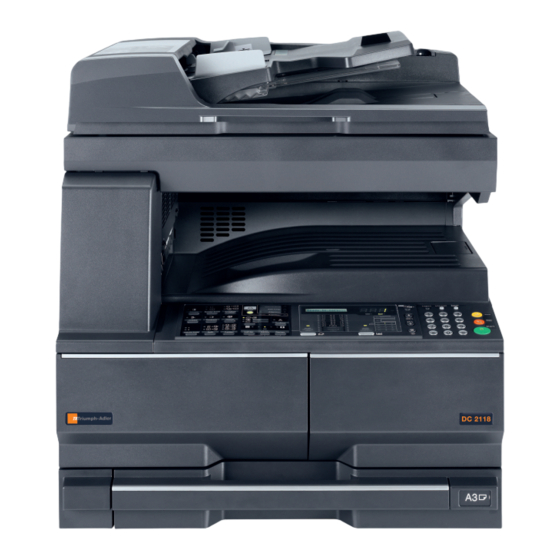

TA Triumph-Adler DC 2118 Schnellanleitung

QUICKGuide
Clearing paper jams
Cassette 1
Pull out the cassette.
(J11, J21)
Remove any jammed paper with-
out tearing it.
If the paper does happen to
NOTE
tear, remove any loose scraps from
inside the machine.
Push the cassette back in fi rmly.
Check to see if paper is out of
NOTE
position in the cassette. If the paper
is out of position, set the paper
properly.
If JAM21 is displayed, remove
NOTE
the jammed paper referring to Paper
Jam in the Left Cover.
Inside Cassette
Open the left cover of the cassette
being used.
2 to 4
(J12 to 16,
Remove any jammed paper with-
J22 to 24) out tearing it.
If the paper does happen to
NOTE
tear, remove any loose scraps from
inside the machine.
Close the left cover of the
cassette.
Pull out the cassette.
Remove any jammed paper with-
out tearing it.
If the paper does happen to
NOTE
tear, remove any loose scraps from
inside the machine.
Push the cassette back in fi rmly.
Paper Output
If jammed paper is seen through
Slot (J50) the paper output slot, pull it out to
remove it.
If the paper does happen to
NOTE
tear, remove any loose scraps from
inside the machine.
Pull the left cover handle up to
open the left cover.
Remove any jammed paper with-
out tearing it.
If the paper does happen to
NOTE
tear, remove any loose scraps from
inside the machine.
Close the left cover.
QUICKGuide
Operation panel
36 33 30
37 34 31 28 27 26 25
35 32 29 20
22 21
1 Start Key (Indicator)
2 Stop/Clear Key
3 Reset Key
4 Energy Saver Key
5 Numeric Keys
6 Interrupt Key
7 Logout Key
8 Key
9 Key
10 OK Key
11 Auto%100% Key
12 Paper Supply Indicator
13 Paper Selection Key
14 Paper Supply Level Indicator
15 Paper Misfeed Indicator
16 MP Indicator
17 No. of Copies/Zoom Display
18 Message Display
19 Original Size Key
20 EcoPrint Key
21 Auto Density Key
DC 2118
DC 2118
24 11
23 18 17 14 9 7 6 4
12
19 13 16 8 5
15 10
22 Density Adjustment Key/Density
Display
23 Attention Indicator
24 Error Indicator
25 Add Toner Indicator
26 Maintenance Indicator
27 Image Quality Selection Key
28 Printer Key (Indicator)
29 2-sided Key
30 Mixed Original Size Key
31 Combine Key
32 Split Key
33 Program Key
34 Border Erase Key
35 Media Type Key
36 Collate Key
37 Margin Key
Clearing paper jams
Inside the left Cover
Pull the left cover handle up to
(J20 to 50, J52 to open the left cover.
57, J60, J61)
CAUTION
hot. Take suffi cient care when work-
ing in this area, as there is a danger
of getting burned.
Remove any jammed paper with-
out tearing it.
If the paper does happen to
NOTE
tear, remove any loose scraps from
inside the machine.
If the optional duplex unit is
installed, raise the duplex unit and
remove any paper.
If the paper does happen to
NOTE
tear, remove any loose scraps from
inside the machine.
Close the left cover.
Multi-Purpose
Remove all of the paper remaining
Tray in the multi-purpose tray.
(J10)
Reset the paper in the multi-
purpose tray. The error message
disappears.
Optional Document
Remove all of the originals
Processor remaining in the original table.
(J70-75, J78)
Open the left cover.
Remove any jammed original
without tearing it.
Raise the paper feed unit A.
Remove any jammed originals
without tearing them.
Turn the dial as shown in the
illustration to remove the jammed
original.
Close the left cover to its original
position. Reset all the originals and
start copying again.
For more details refer to the Operation
Guide on the co-packed CD-ROM.
Copy Operation
Preparations
Place the originals on the platen or in the
optional document processor.
Enter the number of copies with the
key.
PAD
Optional settings Paper source
Select the desired paper source by pressing
PAPER SELECTION
3
active, the selected cassette will automati-
cally match the original format. Special sizes
2
or papers should be used through the multi
purpose tray.
Adjusting the copy exposure
1
Choose the document type between
Press
LIGHTER
exposure, if needed.
Sort mode
Press
COLLATE
of copies with the
button.
Note The device is able to rotate each set, if
A4 and A4-R paper is avaliable.
has to be enabled to use this function. Refer
to the chapter System Setting in the user
manual.
Preset Zoom
Press
100%/AUTO%
indicator. Press
paper. Press
Choosing Zoom ratio
Press
displayed using up or down. The percentage
can also be input using the
Press
OK
Duplex copy
Press
2-SIDED
mode is selected. Choose between:
· 1-side original --> 2 sided copy
· 2-sided original --> 2 sided copy
· Book --> 2 sided copy
When choosing book, refer to the original size
indicators of the platen.
For more details refer to the Operation
Guide on the co-packed CD-ROM.
The fi xing unit is extremely
TEN
button. If the setting APS is
TEXT &
, and .
PHOTO TEXT
or button to adjust the
DARKER
button. Enter the number
key. Press
TEN PAD START
ROTATE/OFFSET
to light up the Auto%
and select the
PAPER SELECTION
to begin copying.
START
and . Change the zoom percentage
keys.
TEN PAD
. Press .
START
button until the desired duplex
