5. Driver Installation

All Operating Systems

After completion of the hardware installation, the DIP-Switch 1 should be set to enabled
and DIP-Switches 2, 3 & 4 to disabled and the EX-1330M should be connected to the
PC. The position of the DIP-Switches is therefore important because the operating sys-
tem does not install the ports in the correct order when all DIP-Switches are set to ac-
tive at the same time.
1. The DIP-Switch 1 is set to ON and the DIP-Switches 2, 3 & 4 are set to OFF.
2. The EX-1330M is properly connected to the PC with the supplied USB cable.
3. Now you can start the PC.

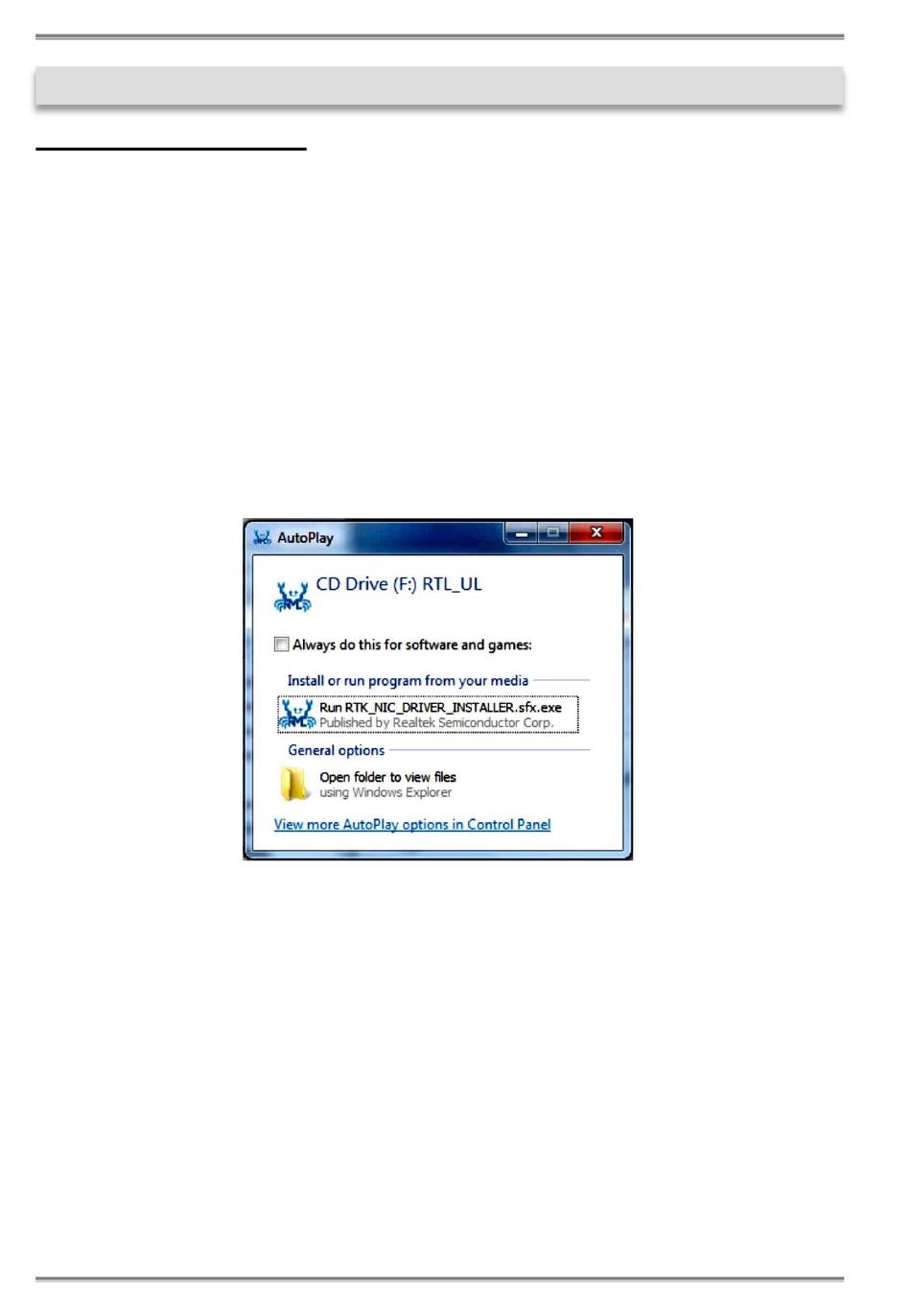

4. Your operating system automatically detects the EX-1330M and opens the following
window
5. Now run the „Run RTK_NIC_DRIVER_INSTALLER.sfx.exe" and follow the instruc-
tions of the installation manager.
6. After successful installation, the Ethernet Port 1 will be listed as „Ethernet Port #1"
in the device manager.
7. Now set the DIP-Switch 2 to ON, while the DIP-Switch 3 & 4 remain in the OFF
position. The operating system will be install automatically the Ethernet Port 2 and
it will be also listed as „Ethernet Port #2" in the device manager. If the installation
Fails, please reset the DIP-Switch to OFF and then set it to ON again!
8. Set DIP-Switch 3 to ON and the Ethernet Port 3 will be added to device manager.
9. Set DIP-Switch 4 to ON and the Ethernet Port 4 will be added to device manager.
