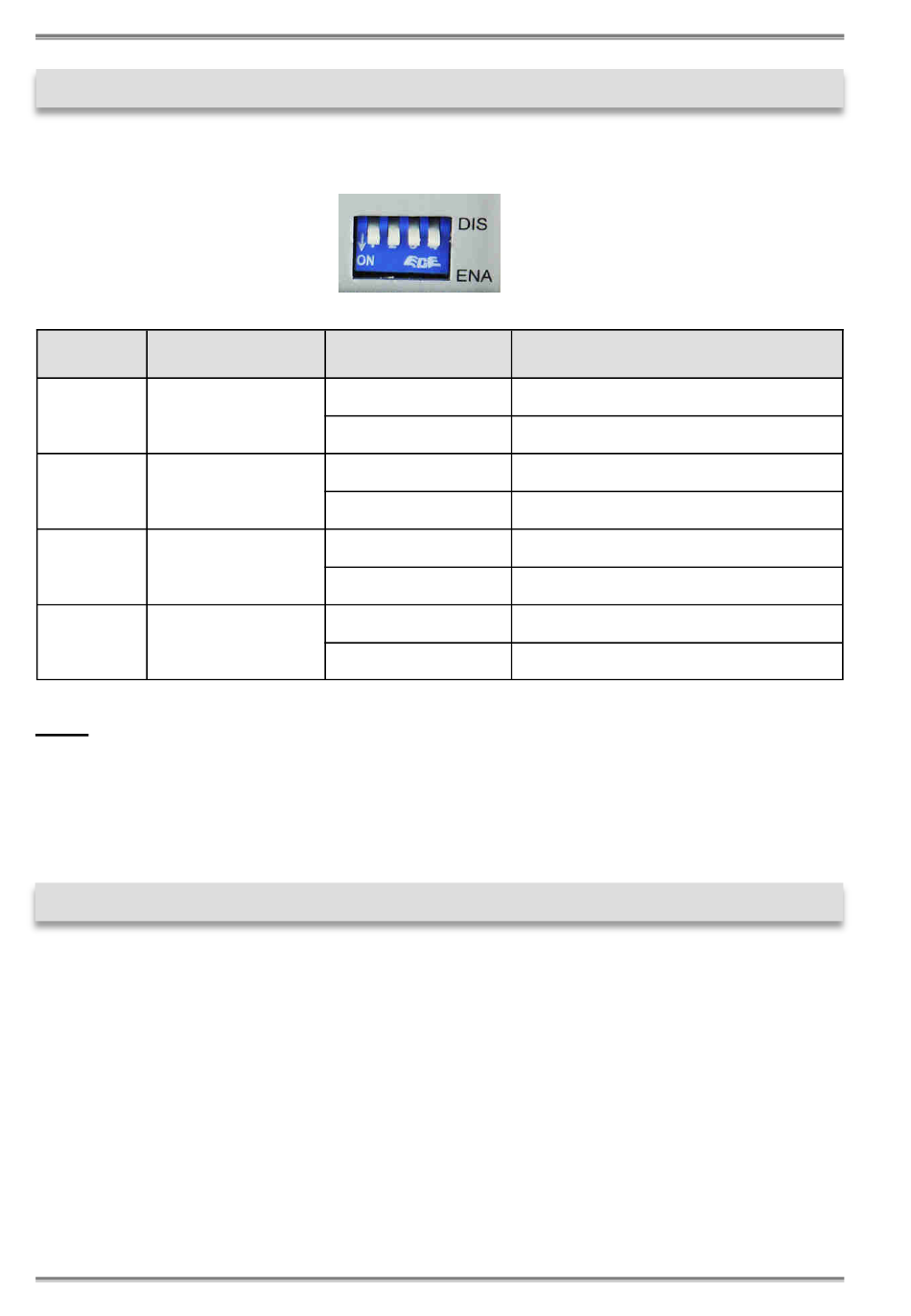

3. Layout, Connections & DIP-Switch

3.3 DIP-Switch

DIP-Switch
Ethernet Port
1
2
3
4
Note!
*DIP-Switch 1 controls the Onboard Windows Driver. If DIP-Switch 1 is enabled,
then also the driver is enabled. Otherwise the DIP-Switch 1 is disabled, then also
the driver is disabled.

4. Hardware Installation

Because there are large differences between PC's, we can give you only a general in-
stallation guide. Please refer your computer's reference manual whenever in doubt.
1. If you want to install the EX-1330M on a wall or on a DIN-RAIL, then please go
ahead with the steps 4 & 5 on page 15 before proceeding to step 2.
2. Set the DIP-Switches 2, 3 & 4 to disabled and only the DIP-Switch 1 to enabled and
connect the included USB cable to the USB C-Port of the hub.
3. Now connect the other end from the USB cable (A-Plug) to the A-Port at your PC.
© Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved
DIP-Switch
Port 1
Port 2
Port 3
Port 4
Position
OFF
ON
OFF
ON
OFF
ON
OFF
ON
14
EX-1330M
Description
Disabled*
Enabled* (Factory Setting)
Disabled
Enabled (Factory Setting)
Disabled
Enabled (Factory Setting)
Disabled
Enabled (Factory Setting)
