MOUNTING

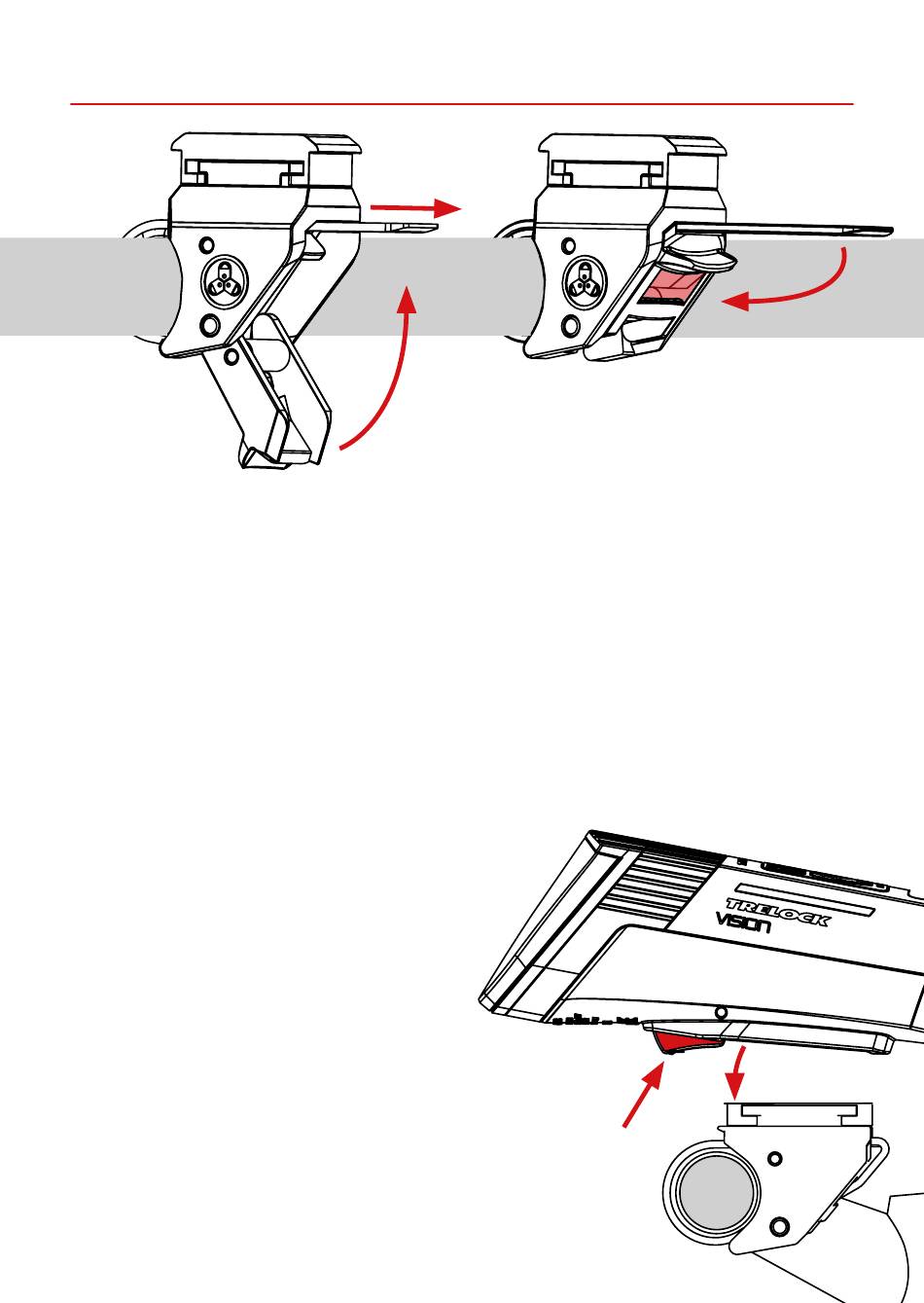

1 Wrap the ZL 760 mount around
the handlebar, pull loop A through
and tighten as much as possible
by hand. The mount is suitable
for handlebars with a diameter of
22 – 35 mm.
2 Fit closing mechanism B.
The front light LS 760 I-GO® VISION
can now be mounted to the bracket.
To do this, simply fit the LS 760
I-GO® VISION to the mount. A notice-
able click signalises that the head
light has been secured properly.
Hold button C to remove the front
light.
More information about the correct
adjustment front lamp can be found
on page 17.
14
1
A
2
B
3 Loop A can also be wrapped
around and secured in closing
mechanism B.
! The ZL 760 mount has been op-
timised for tool-free installation.
Any use of tools may damage the
mount.
C
3
