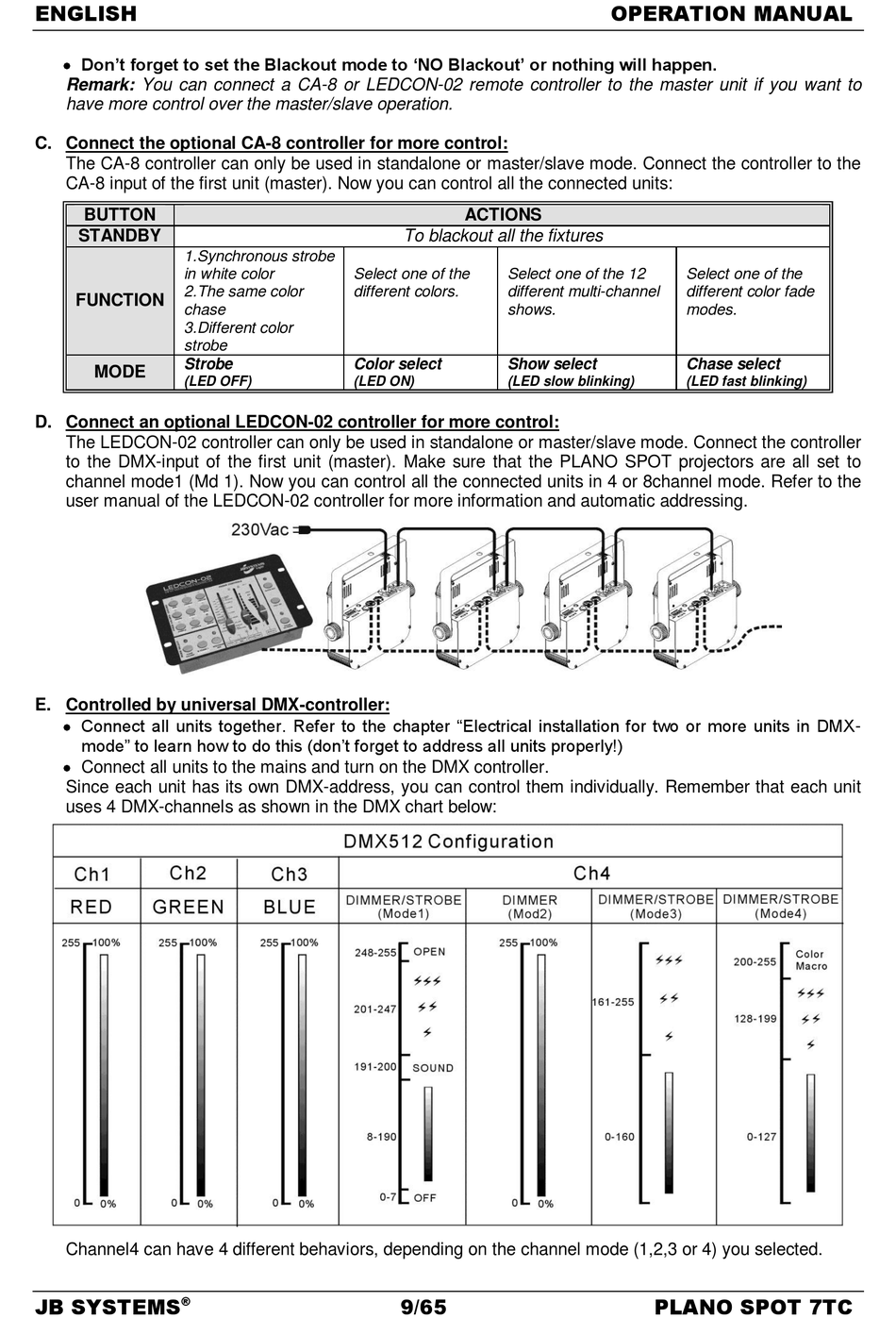

ENGLISH
 Don't forget to set the Blackout mode to 'NO Blackout' or nothing will happen.
Remark: You can connect a CA-8 or LEDCON-02 remote controller to the master unit if you want to
have more control over the master/slave operation.
C. Connect the optional CA-8 controller for more control:
The CA-8 controller can only be used in standalone or master/slave mode. Connect the controller to the
CA-8 input of the first unit (master). Now you can control all the connected units:
BUTTON
STANDBY
1.Synchronous strobe
in white color
2.The same color
FUNCTION
chase
3.Different color
strobe
Strobe
MODE
(LED OFF)
D. Connect an optional LEDCON-02 controller for more control:
The LEDCON-02 controller can only be used in standalone or master/slave mode. Connect the controller
to the DMX-input of the first unit (master). Make sure that the PLANO SPOT projectors are all set to
channel mode1 (Md 1). Now you can control all the connected units in 4 or 8channel mode. Refer to the
user manual of the LEDCON-02 controller for more information and automatic addressing.
E. Controlled by universal DMX-controller:
 Connect all units together. Refer to the chapter "Electrical installation for two or more units in DMX-
mode" to learn how to do this (don't forget to address all units properly!)
 Connect all units to the mains and turn on the DMX controller.
Since each unit has its own DMX-address, you can control them individually. Remember that each unit
uses 4 DMX-channels as shown in the DMX chart below:
Channel4 can have 4 different behaviors, depending on the channel mode (1,2,3 or 4) you selected.
JB SYSTEMS
®
ACTIONS
To blackout all the fixtures
Select one of the Select one of the 12
different colors. different multi-channel
shows.
Color select Show select
(LED ON) (LED slow blinking)
9/65
OPERATION MANUAL
Select one of the
different color fade
modes.
Chase select
(LED fast blinking)
PLANO SPOT 7TC
