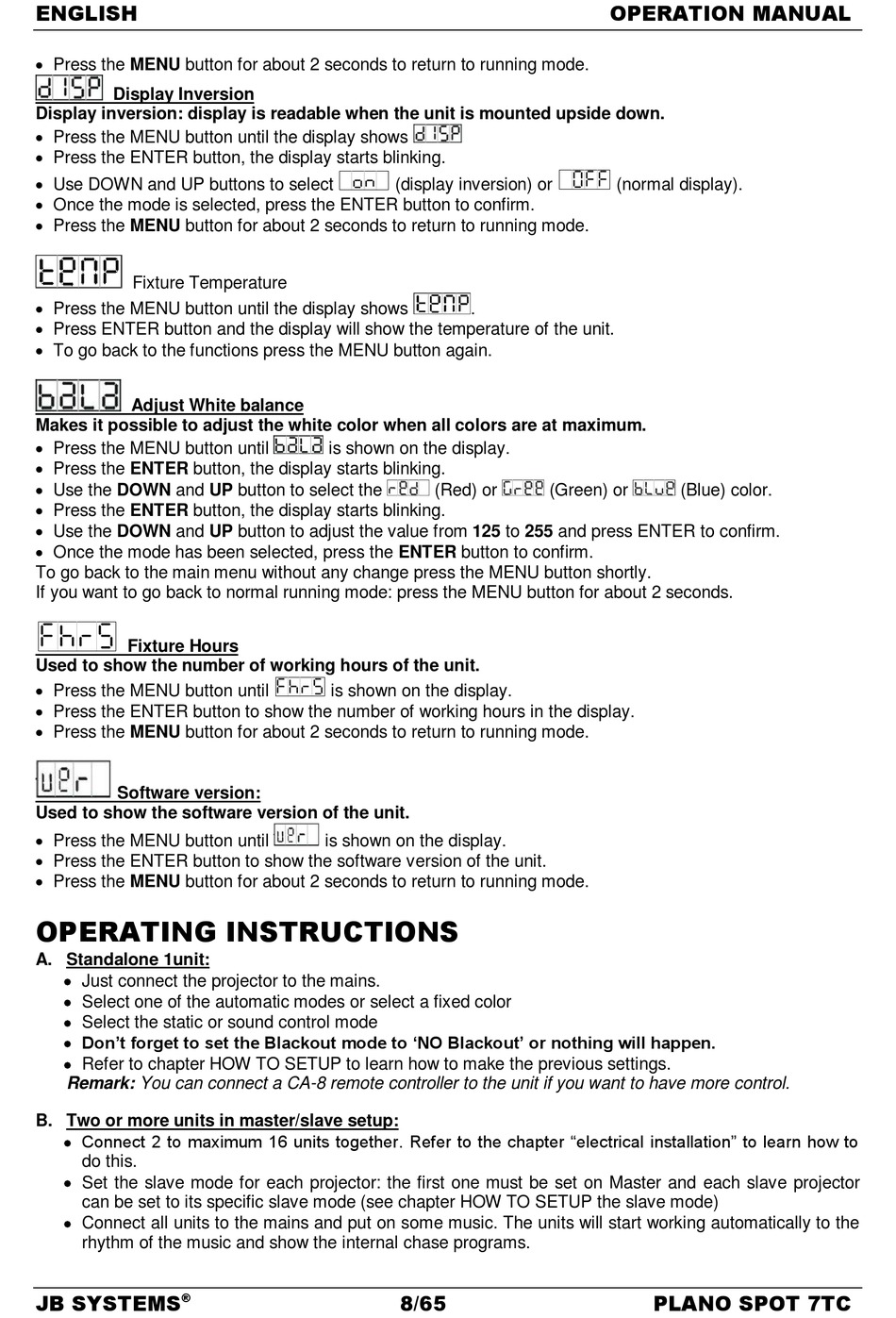

ENGLISH
 Press the MENU button for about 2 seconds to return to running mode.
Display Inversion
Display inversion: display is readable when the unit is mounted upside down.
 Press the MENU button until the display shows
 Press the ENTER button, the display starts blinking.
 Use DOWN and UP buttons to select
 Once the mode is selected, press the ENTER button to confirm.
 Press the MENU button for about 2 seconds to return to running mode.
Fixture Temperature
 Press the MENU button until the display shows
 Press ENTER button and the display will show the temperature of the unit.
 To go back to the functions press the MENU button again.
Adjust White balance
Makes it possible to adjust the white color when all colors are at maximum.
 Press the MENU button until
 Press the ENTER button, the display starts blinking.
 Use the DOWN and UP button to select the
 Press the ENTER button, the display starts blinking.
 Use the DOWN and UP button to adjust the value from 125 to 255 and press ENTER to confirm.
 Once the mode has been selected, press the ENTER button to confirm.
To go back to the main menu without any change press the MENU button shortly.
If you want to go back to normal running mode: press the MENU button for about 2 seconds.
Fixture Hours
Used to show the number of working hours of the unit.
 Press the MENU button until
 Press the ENTER button to show the number of working hours in the display.
 Press the MENU button for about 2 seconds to return to running mode.
Software version:
Used to show the software version of the unit.
 Press the MENU button until
 Press the ENTER button to show the software version of the unit.
 Press the MENU button for about 2 seconds to return to running mode.
OPERATING INSTRUCTIONS
A. Standalone 1unit:
 Just connect the projector to the mains.
 Select one of the automatic modes or select a fixed color
 Select the static or sound control mode
 Don't forget to set the Blackout mode to 'NO Blackout' or nothing will happen.
 Refer to chapter HOW TO SETUP to learn how to make the previous settings.
Remark: You can connect a CA-8 remote controller to the unit if you want to have more control.
B. Two or more units in master/slave setup:
 Connect 2 to maximum 16 units together. Refer to the chapter "electrical installation" to learn how to
do this.
 Set the slave mode for each projector: the first one must be set on Master and each slave projector
can be set to its specific slave mode (see chapter HOW TO SETUP the slave mode)
 Connect all units to the mains and put on some music. The units will start working automatically to the
rhythm of the music and show the internal chase programs.
JB SYSTEMS
®
(display inversion) or
.
is shown on the display.
(Red) or
is shown on the display.
is shown on the display.
8/65
OPERATION MANUAL
(normal display).
(Green) or (Blue) color.
PLANO SPOT 7TC
