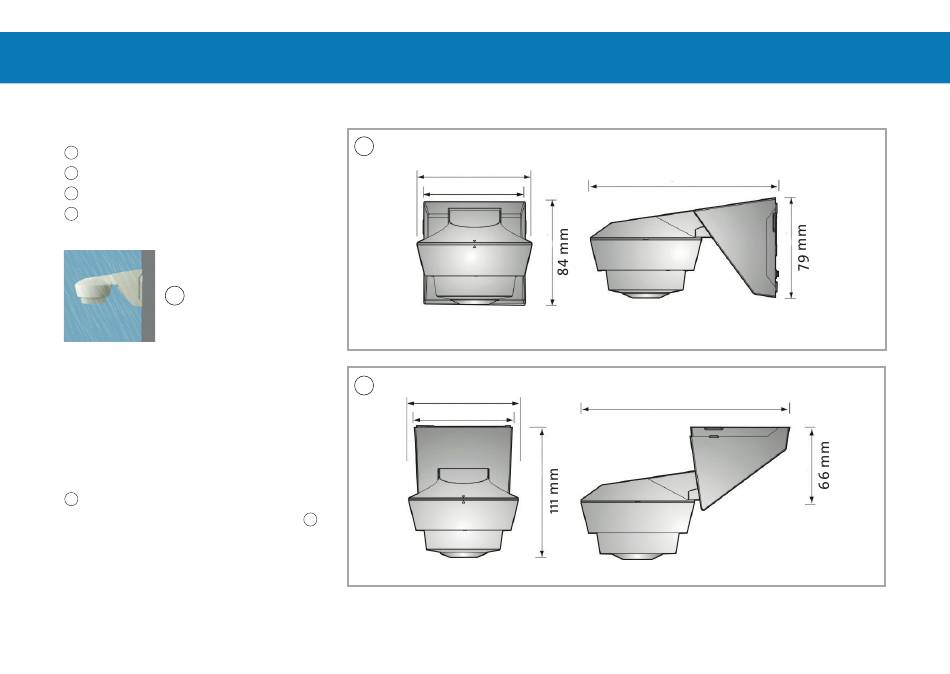

Mounting Options
Wall mounting
1
Ceiling mounting
2
Corner mounting (outside corner)
3
Corner mounting (inside corner)
4
6
Note:
In the case of corner mounting,
use the enclosed corner bracket. In
order for protection class IP55 to be
complied with, the motion switch
should not be installed at an angle
outside. The device ca withstand
5
weather conditions, e.g., rain
However, in order to ensure optimal
use of sensor properties, a weather-
protected installation is recommen-
ded.
74
1
Ø 90 mm
80 mm
2
Ø 90 mm
80 mm
.
6
150 mm
166 mm
