Range
The range is 240°.
The specified range refers to a
mounted/installation height of 2.5 m.
(See technical data information)
The most reliable motion switch
behaviour is demonstrated if the
detection area is passed through
crossing by the movement switch
and not moving toward it in a frontal
direction.

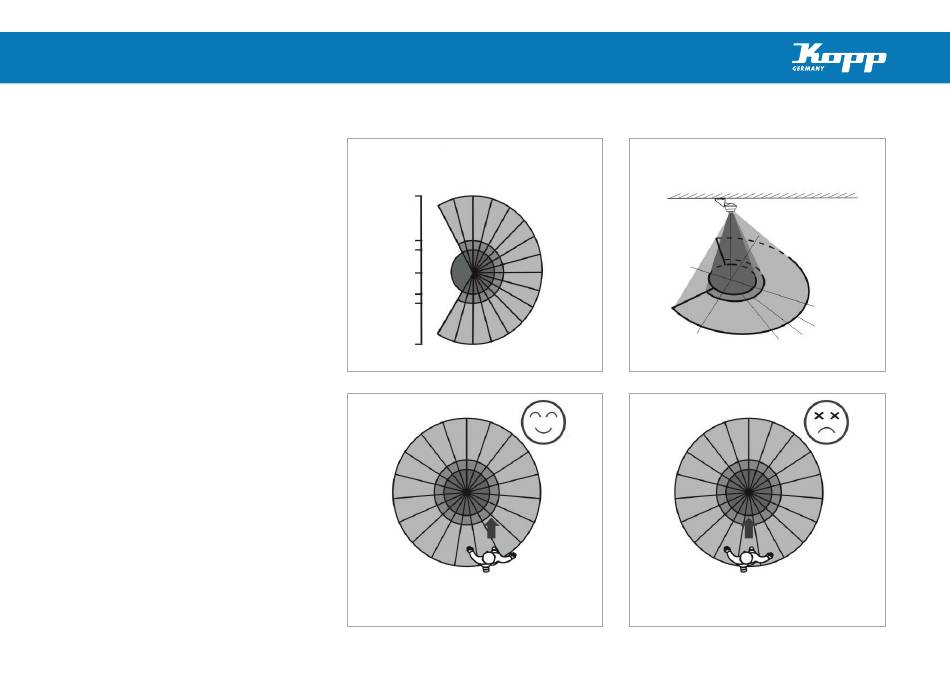

(See figure)
Top View
240°
16 m
7 m
5 m
0 m
5 m
7 m
16 m
High performance throughout the entire
detection area
Side View
H = 2,5 m
Ø 14 m
Ø 10 m
Low detection frontally or directly below
the motion switch
Ø 32 m
