Operating instructions

Using OSD controller

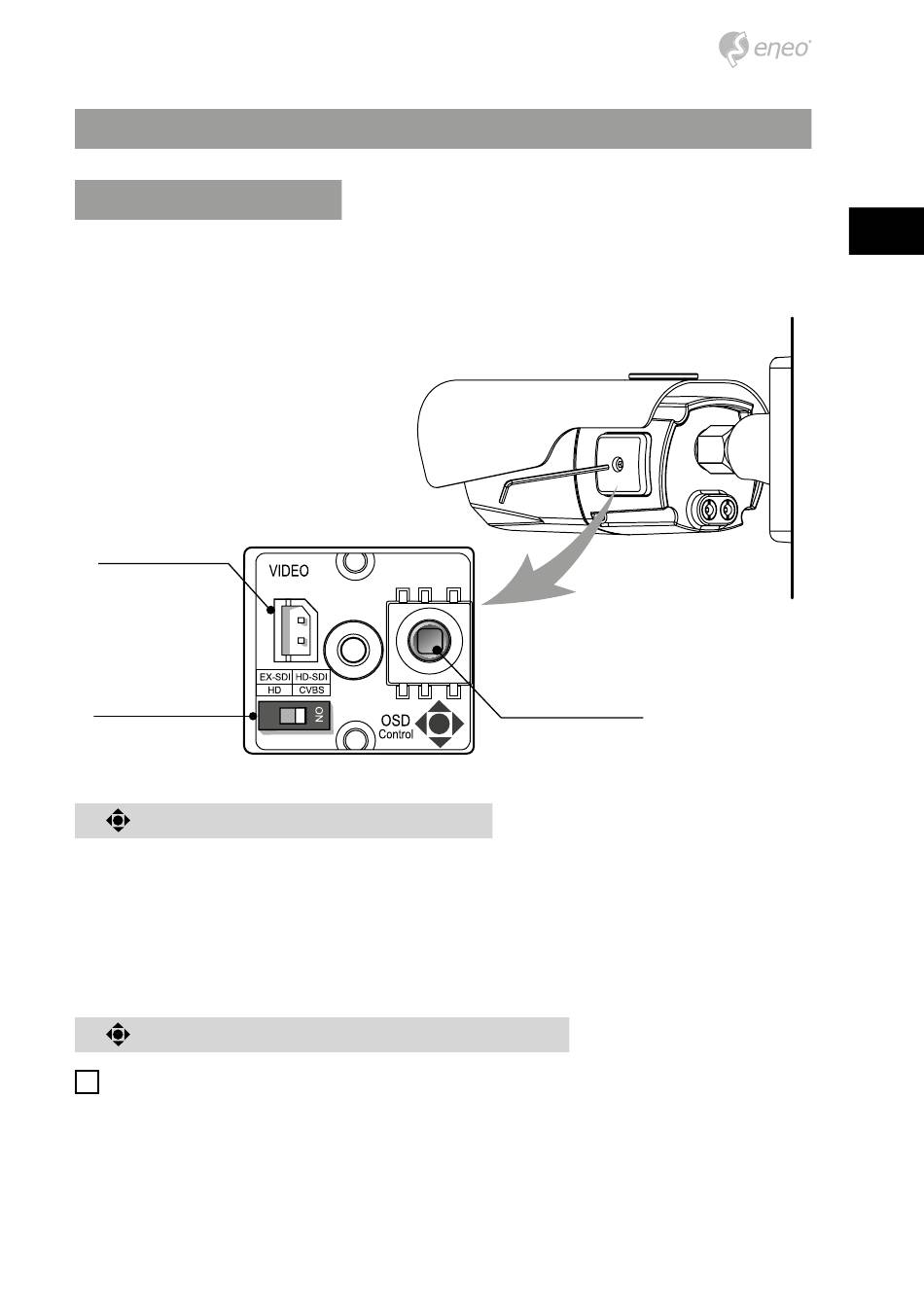

Setup menu can be accessed and controlled by OSD control joy stick on the side of cam-
era unit. Five commands are available with the joy stick.
Video Sub-out Connector
Video format Switch

Description of the joystick operation

1. SET Key (●) : Access to the menu or enter the setting.
2. UP/DOWN Key (▲/▼) : Choose the desired sub-menu and to move the cursor up or
down.
3. LEFT/RIGHT Key (◄/►) : Set up the value of the selected menu. Used to adjust the
desired menu selection and to move the cursor left or right.
Description of the ZOOM&FOCUS adjustment
Works only when OSD Menu is inactive.
i
1. ▲ : Zoom In
2. ▼ : Zoom Out
3. ◄ : Focus Near
SUB-OUT
Cover Open
OSD Control Joy Stick
