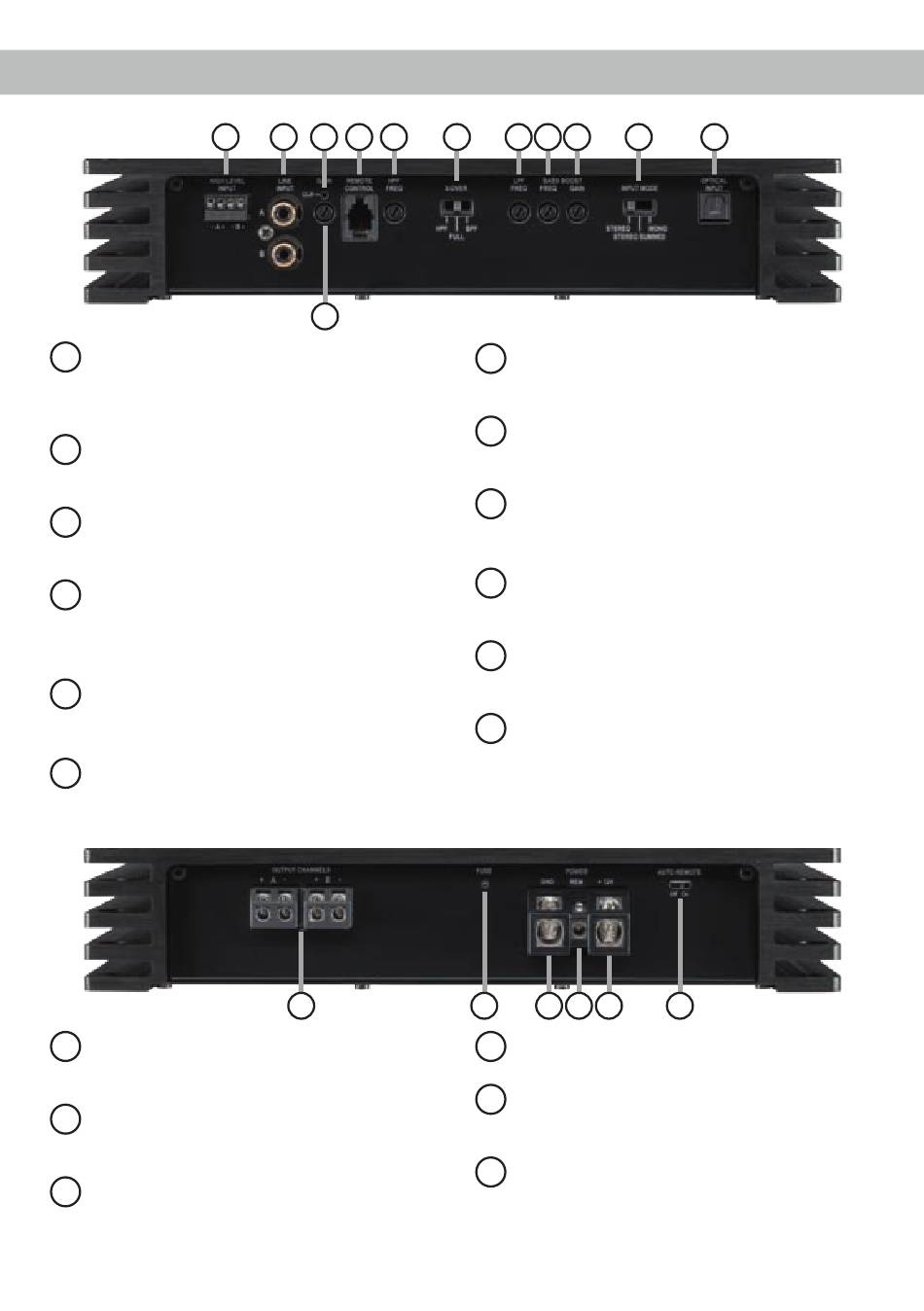

Connectors and control units
Highlevel Input
1
Highlevel speaker inputs for connecting a
factory radio or an aftermarket radio without
lowlevel line outputs.
Line Input
2
RCA inputs for connecting lowlevel line sig-
nals.
Clipping LED
3
This LED lights up red if one of the inputs is
overdriven.
Gain
4
Control for adjusting the input sensitivity of
the lowlevel Line Inputs, Highlevel Inputs and
Optical Input.
Remote Control
5
Input for connecting the included cable re-
mote control for volume adjustment.
HPF Frequency
6
Control for adjusting the highpass filter from
15 Hz bis 4,000 Hz.
Output Channels
13
Speaker outputs for connecting speaker
systems.
Fuse LED
14
This LED indicates the operating mode of the
amplifier.
GND
15
Connector for the ground cable (negative
terminal of the battery or metal body of the
vehicle).
14
1
2
3
5
6
4
13
7
8
9 10
X-Over
7
Switch for activating the filters for channel A
and B.
LPF Frequency
8
Control for adjusting the lowpass filter
from15 Hz bis 4,000 Hz.
Bass Boost Frequency
9
Control for adjusting the center frequency of
the bass boost from 40 Hz bis 120 Hz.
Bass Boost Gain
10
Control for adjusting the bass boost from 0 to
9 dB.
Input Mode
11
Switch to route input signals to respective
amplifier channels.
Optical Input
12
Optical input for digital stereo signals (SPDIF
format).
14
15 16
17
REM
16
Connector for the remote cable.
+12 V
17
Connector for the +12 V power cable of the
positive terminal of the battery.
Auto Remote
18
This switch allows to activate / deactivate the
automatic turn-on feature via the highlevel
inputs of the amplifier.
11
12
18
