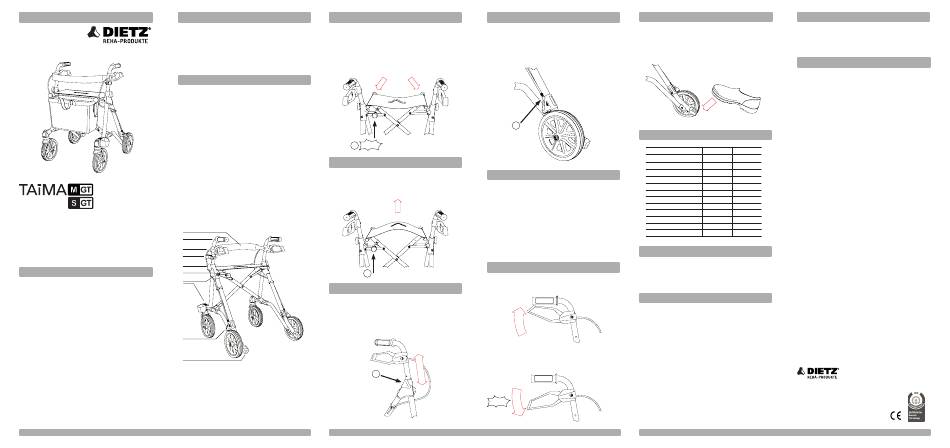

Dietz TAiMA Gebrauchsanweisung Seite 2

Users Manual Specifications and intended purpose
The TAiMA rollator is intended as a walking aid for persons
with impaired mobility who weigh up to 150 kg. It also
provides a limited seating function for temporary rest.
The rollator should be used only on firm, flat surfaces. It is not
intended to be used for any other purpose – in particular as a
climbing aid or to carry heavy loads. Any such use can be
dangerous!
Safety information
Do not hang bags on the handles as this could cause the
rollator to tip over.
Use the service brake (by pulling the brake lever up) on inclines.
Only use the rollator on firm, flat surfaces.
Do not lean too heavily on the handles. Otherwise, the rollator
could tip over backwards.
Be careful not to trap your fingers or clothes when folding up
the rollator.
Upholstered parts become hot when exposed to direct sunlight
and can cause damage to the skin if you touch them. These
parts should be covered over. Alternatively, keep your rollator
away from direct sunlight.
Before using your rollator, make sure the locking pin is
correctly engaged and the rollator can not fold up randomly.
Always lock both brakes before sitting on your rollator.
The maximum load for the shopping bag is 5kg.
1
2
3
4
5
Introduction
6
7
The TAiMA rollator is exceptionally light, strong and can easily
be folded to stow away. It provides ideal support during all your
daily ventures as well a seat to rest.
Before using the rollator for the first time please read this
manual carefully and make sure to be familiar with all features
of the product.
The rollator described on this information sheet complies with
EU Directive 93/42 for medical products.
These instructions for use are an integral part of the scope of
delivery.
8
The user should keep them available at all times and keep them
with the product if this is passed on to a third party.
The manufacturer reserves the right to make changes relative to 9
the information provided in these instructions as a result of
technical developments and improvements.
1. Backrest
This document may be reprinted, translated and/or duplicated
2. Ergonomic handgrips
in any form whatsoever, in part or in full, only subject to the
3. Brake lever
manufacturer's prior written consent.
4. Cane holder
5. Height adjustment screw
There is no update service for this users manual. Please contact
6. Locking pin
the manufacturer to keep abreast of new developments.
7. Reflectors
8. Brake
9. Curb climber
DIETZ TAiMA Gebrauchsanweisung I Version 1.2 I Stand 15.01.14
Setting up / unfolding your rollator Brake adjustment
Place the rollator in front of you in the direction of travel. The brake is set up correctly if there is no play in either the
brake lever or the Bowden cable and if the wheels turn
Using both hands, press the tubes on either side of the seat without any rubbing or grating.
down to the left and right until the locking pin A clicks into
place.
The braking power can be adjusted using the set screw C of the
Bowden cable on the brake blocks of the back wheels.
Caution! The rollator must never be used unless the locking
pin A is properly engaged.
A
CLICK!
Folding up your rollator
Walking with your rollator
Release the locking pin A by pulling it slightly backwards and
pull up the seat by it´s folding strap.
Position yourself inside the rollator. Grab the handgrips with
The rollator will now fold up automatically.
both hands. As soon as you stand safely, you can loosen the
parking brakes.
- Do not push the rollator too far in front of you. In order to
give good support, the rollator should be kept close to your
body.
- Control your speed by gently applying both brakes evenly.
- Walk upright and look forwards to be able to avoid any
upcoming obstacles early. Walking backwards with your
rollator is difficult, and not recommended.
Braking
A
To reduce speed while walking just pull both levers evenly and
gently upwards. Always apply the same amount of power on
Grip handle adjustment
both brake levers.
Loosen screw B and remove it completely.
Adjust the grip handles to the height desired.
Place screw B back in it´s hole and tighten it firmly.
To lock the brakes, push the levers downwards. The brake
levers will lock audibly into place. To release the brakes just
pull the lever upwards again.
B
CLICK!
DIETZ TAiMA Gebrauchsanweisung I Version 1.2 I Stand 15.01.14
Curb climber
To make climbing curbs easier you can lift the front wheels by
pushing the rubber cap at the very end of the rollator frame
downwards with your foot. Make sure to stand securely before
using the curb climber.
C
Technical data
Height
Height folded
Seat height
Seat width
Length
Width
Width folded
Max. user weight
Weight
Tyre dimensions
Grip handle adjustment
Max. load shopping bag
Scope of delivery
- Rollator TAiMA
- Backrest
- Cane holder L/R use
- Shopping bag
- Users manual
Cleaning / Maintenance / Reuse
Cleaning
Clean and desinfect the rollator at regular intervals. To do so,
use mild soapy water with no scouring additives. You can
disinfect the rollator using commercially available products.
Never use steam degreasers. Never use scouring or caustic
cleaning agents.
Maintenance
The TAiMA rollator requires no maintenance. If the braking
function weakens, wheel movement becomes stiff or you
notice any other functional impairment, please take the
rollator to your specialist dealer for a service.
Reuse by third parties
If you pass on your rollator to a new user, please remember
also to hand over all the technical documentation needed to
ensure safe operation. In accordance with specifications, the
rollator must first be inspected, cleaned and returned to
pristine condition by a specialist dealer.
Warranty
The TAIMA rollator has a five-year warranty on the aluminum
frame and a 24-month warranty on all other parts.
Parts subject to wear or are excluded from warranty. Warranty
does not cover any sort of misuse of your rollator.
Accessories (optional)
Backrest „Comfort" extra wide, extra soft
Art. 290038
One hand brake system L or R
Art. 200100 / 200101
Extended push handles
Art. 200102
Bright single LED light for improved visibility in the dark
White Art. 999990
Bright single LED light for improved visibility in the dark
Red Art. 999989
TAiMA_S_GT TAiMA_M_GT Super bright triple LED white front light
Art. 999991
76 - 86 cm 79- 95 cm
76 cm 81 cm
Umbrella to protect from sun or rain.
Art. 601227 (red)
51 cm 59 cm
Art. 601228 (grey)
39 cm 44 cm
62 cm 68 cm
58 cm 63 cm
23 cm 23 cm
150 kg 150 kg
6.2 kg 6.3 kg
20 x 3.5 cm 20 x 3.5 cm
5 x 2.5 cm 5 x 4 cm
5 kg 5 kg
Dietz Reha - Produkte
Reutäckerstrasse 12
76307 Karlsbad Ittersbach
Fax: +49 (0) 7248 / 9186 - 86
Fon: +49 (0) 7248 / 9186 - 0
www.dietz-reha.com
DIETZ TAiMA Gebrauchsanweisung I Version 1.2 I Stand 15.01.14
