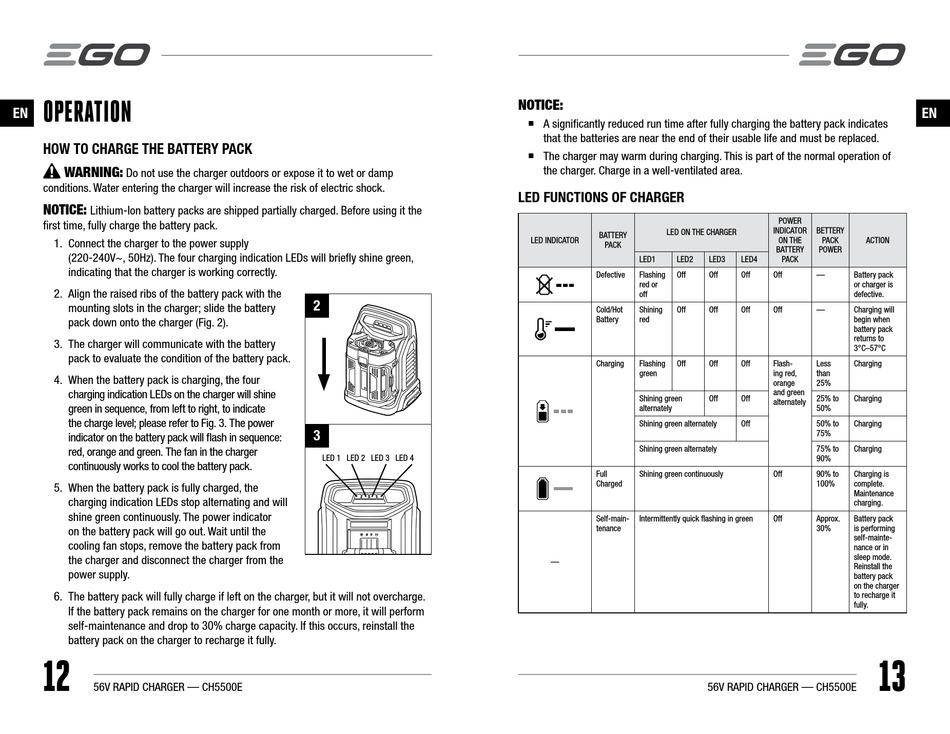

OPERATION

EN
HOW TO CHARGE THE BATTERY PACK
WARNING:
Do not use the charger outdoors or expose it to wet or damp
conditions. Water entering the charger will increase the risk of electric shock.
NOTICE:
Lithium-Ion battery packs are shipped partially charged. Before using it the
first time, fully charge the battery pack.
1. Connect the charger to the power supply
(220-240V~, 50Hz). The four charging indication LEDs will briefly shine green,
indicating that the charger is working correctly.
2. Align the raised ribs of the battery pack with the
mounting slots in the charger; slide the battery
pack down onto the charger (Fig. 2).
3. The charger will communicate with the battery
pack to evaluate the condition of the battery pack.
4. When the battery pack is charging, the four
charging indication LEDs on the charger will shine
green in sequence, from left to right, to indicate
the charge level; please refer to Fig. 3. The power
indicator on the battery pack will flash in sequence:
red, orange and green. The fan in the charger
continuously works to cool the battery pack.
5. When the battery pack is fully charged, the
charging indication LEDs stop alternating and will
shine green continuously. The power indicator
on the battery pack will go out. Wait until the
cooling fan stops, remove the battery pack from
the charger and disconnect the charger from the
power supply.
6. The battery pack will fully charge if left on the charger, but it will not overcharge.
If the battery pack remains on the charger for one month or more, it will perform
self-maintenance and drop to 30% charge capacity. If this occurs, reinstall the
battery pack on the charger to recharge it fully.
12
56V RAPID CHARGER — CH5500E
2
3
LED 1 LED 2 LED 3 LED 4
NOTICE:
◾ ◾
A significantly reduced run time after fully charging the battery pack indicates
that the batteries are near the end of their usable life and must be replaced.
◾ ◾
The charger may warm during charging. This is part of the normal operation of
the charger. Charge in a well-ventilated area.
LED FUNCTIONS OF CHARGER
LED ON THE CHARGER
BATTERY
LED INDICATOR
PACK
LED1 LED2
Defective Flashing Off
red or
off
Cold/Hot Shining Off
Battery red
Charging Flashing Off
green
Shining green
alternately
Shining green alternately
Shining green alternately
Full Shining green continuously
Charged
Self-main- Intermittently quick flashing in green
tenance
—
POWER
INDICATOR BETTERY
ON THE PACK ACTION
BATTERY POWER
LED3 LED4 PACK
Off Off Off — Battery pack
or charger is
defective.
Off Off Off — Charging will
begin when
battery pack
returns to
3°C–57°C
Off Off Flash- Less Charging
ing red, than
orange 25%
and green
Off Off 25% to Charging
alternately
50%
Off 50% to Charging
75%
75% to Charging
90%
Off 90% to Charging is
100% complete.
Maintenance
charging.
Off Approx. Battery pack
30% is performing
self-mainte-
nance or in
sleep mode.
Reinstall the
battery pack
on the charger
to recharge it
fully.
13
