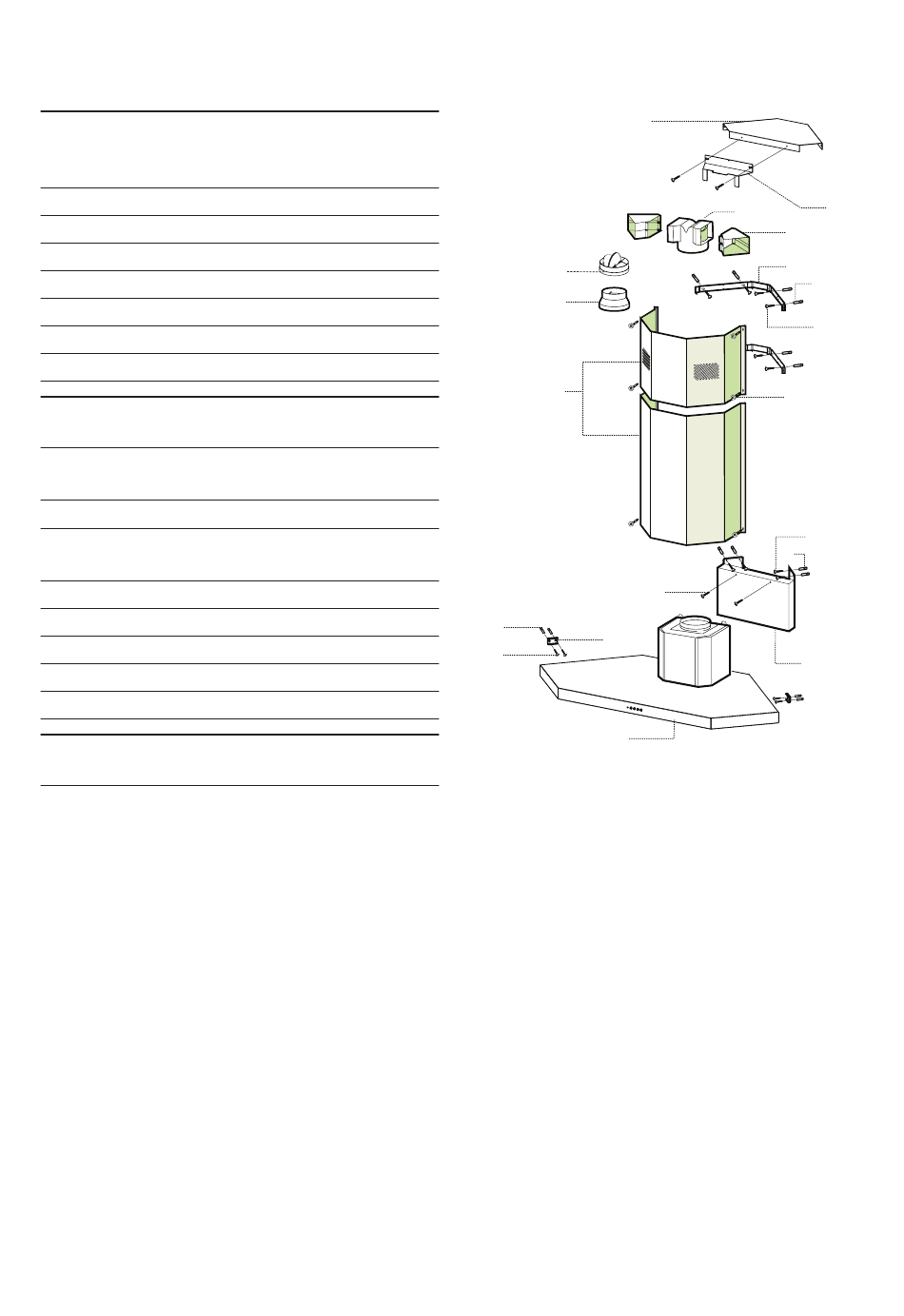

Components
Ref. Q.ty Product Components
1 1 Hood Body, with: Controls, Light,
Blower, Filters
2
1 Telescopic Chimney:
2.1 1 Upper Section
2.2 1 Lower Section
9 1 Reducer Flange ø 150-120 mm
10 1 Damper
14.1 2 Air Outlet Connection Extension
15 1 Air Outlet Connection
Ref. Q.ty Installation Components
7.1
1 Hood Coupling Support
7.2.1 2
Upper Chimney Section Fixing
Brackets
7.3 1 Air Outlet Connection Support
7.4 1 Support Air Outlet Connection
Brackets
7.5 2 Safety Brackets
11 16 Plugs
12a 16 Screws 4.2 x 44.4
12c 8 Screws 2.9 x 9.5
12r 2 Screws 4.2 x 12.7
Q.ty Documentation
1 Instruction Manual
7.4
10
9
2.1
2
2.2
12r
11
7.5
12a
1
7.3
15
14.1
7.2.1
11
12a
12c
12a
11
7.1
