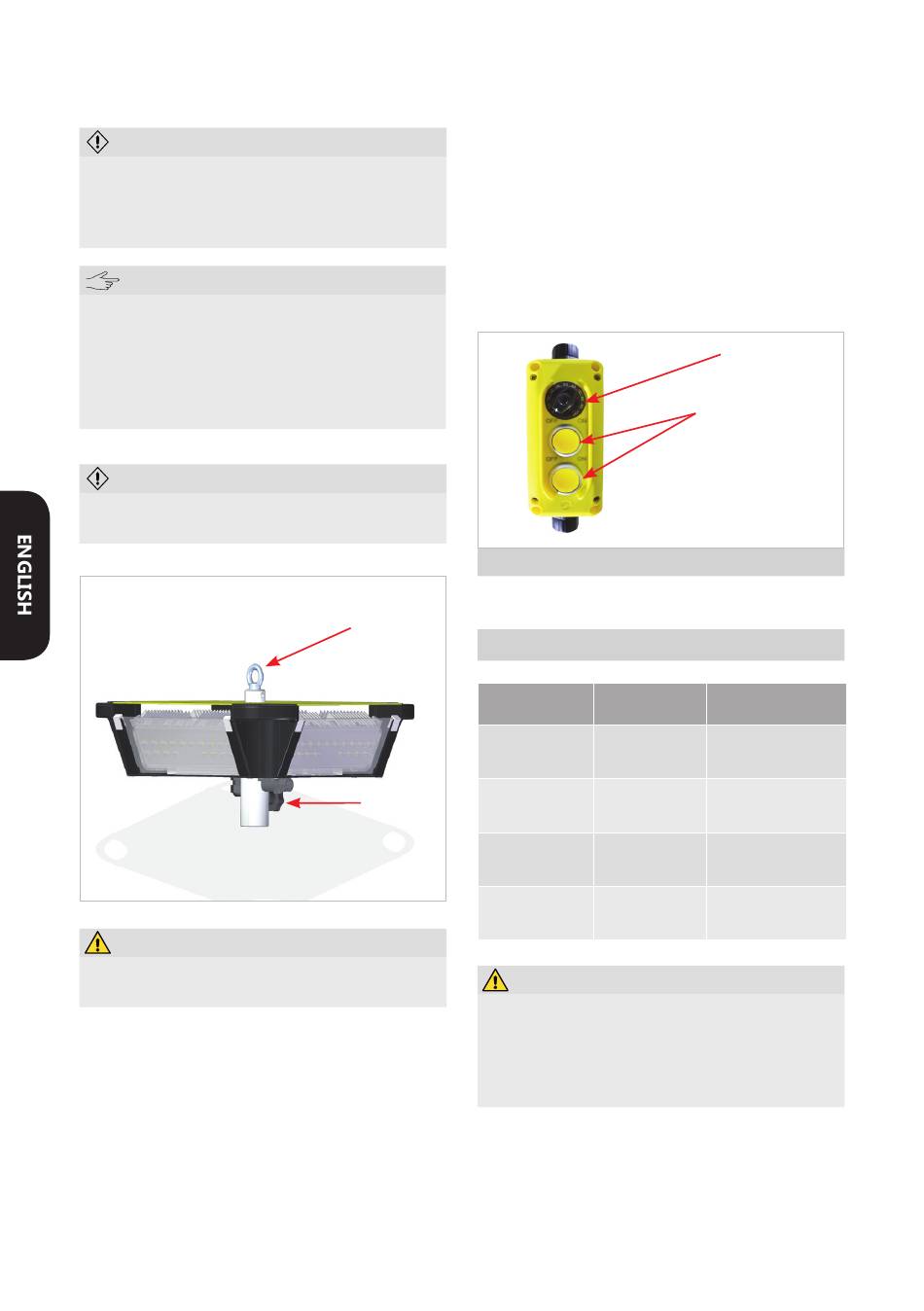

2. Installation suspended use
ATTENTION!
The ALDEBARAN
air for proper operation. The luminaire must be
installed freestanding with at least 0.5m distance
to all sides.
NOTE!
The luminaire can also be used in suspended
mode. This is only permitted in conjunc-
tion with the optional accessory (Item no.:
1410926011). For this purpose, the ring nut is
to be used as a fixture.
ATTENTION!
Make sure that your suspension point is desig-
ned for the weight of the light.
WARNING! Risk of injury!
Be sure to fix the star knob by tightening clockwise.
That way, you avoid accidents and injuries.
14
XLD requires room/ambient
®
Ring nut
Star grip

Service

The ALDEBARAN XLD COmpACT luminaire can be
®
controlled via the two switches (only with SWITCH
versions) and the rotary control (only with DIM
versions) on the control unit. The operating unit
is integrated in the supply line. For each switch, 2
lighting modules are switched. (ON/OFF). Turning the
potentiometer clockwise increases the illuminance,
counterclockwise decreases the illuminance. (only
with DIM versions)
Control element

Failure

Failure possible
cause
Floodlight wit- Disconnection
hout function from the supply
network
Failure of just Faulty LED
one LED module module
Failure of two Faulty power
LED modules supply or rotary
switch faulty
Luminaire cannot Failure of the
be dimmed rotary knob (po-
tentiometer)
DANGER! Electrical current!
Maintenance or repair works on the luminaire
may only be carried out by qualified electricians.
Disconnect the mains plug before opening the
lamp! The relevant safety regulations for working
on electrical systems apply.
Potentiometer
Switch ON / OFF
Solution
Check the connection
to the mains con-
nection
Repair necessary
Repair necessary
Repair necessary
