Original Instruction Manual

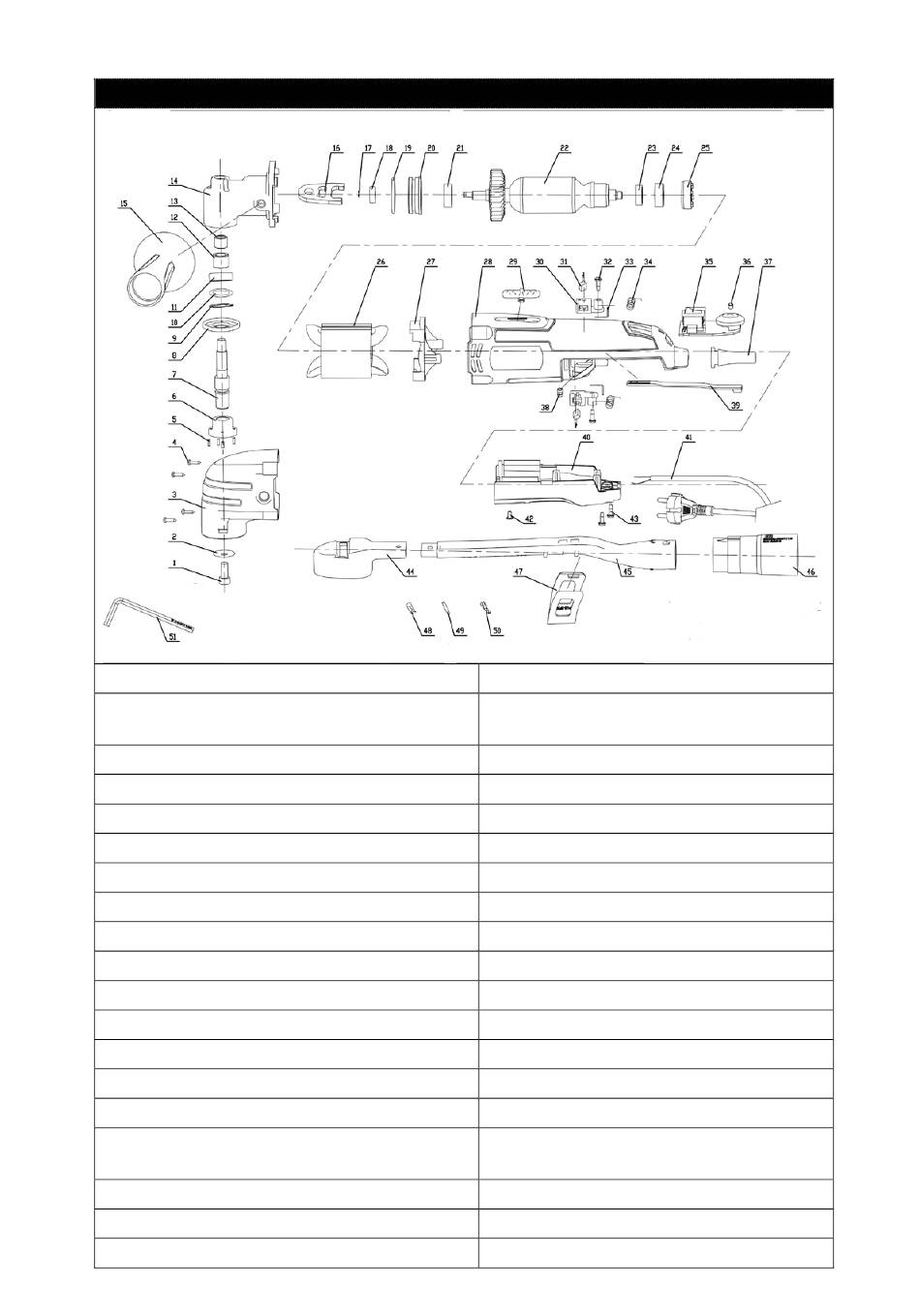

EXPLODED VIEW AND PART LIST
1.clamoing screw
3. head housing
5. round pin
7. output shaft
9. circlip for hole
11.bearing
13. bearing
15. side handle
17. spring
19. O ring
21. bearing
23. bearing
25. bearing holder inserts
27. wind break ring
29. on/off switch
31. carbon brush
33. lug plate
35. speed regular
37. cable shield
12
2. retaining ring
4. cross r ecessed pa n h ead t apping
screw
6. press table
8. dust cover
10. wave washer
12. shifting fork ring
14. head
16. oscillating axle
18. bearing
20. middle cover
22. rotor
24. bearing holder
26. stator
28. housing
30. brush box
32. cross recessed p an he ad tapping
screw
34. coil of wire
36. rubber column
38. copper inserts
