TUBELED_40 II RGB-W

5 | Connection

Suitable connection material, cables and accessories can be found in the accessory
range of LED2WORK.
PIN assignment of the M12 connector is as follows:

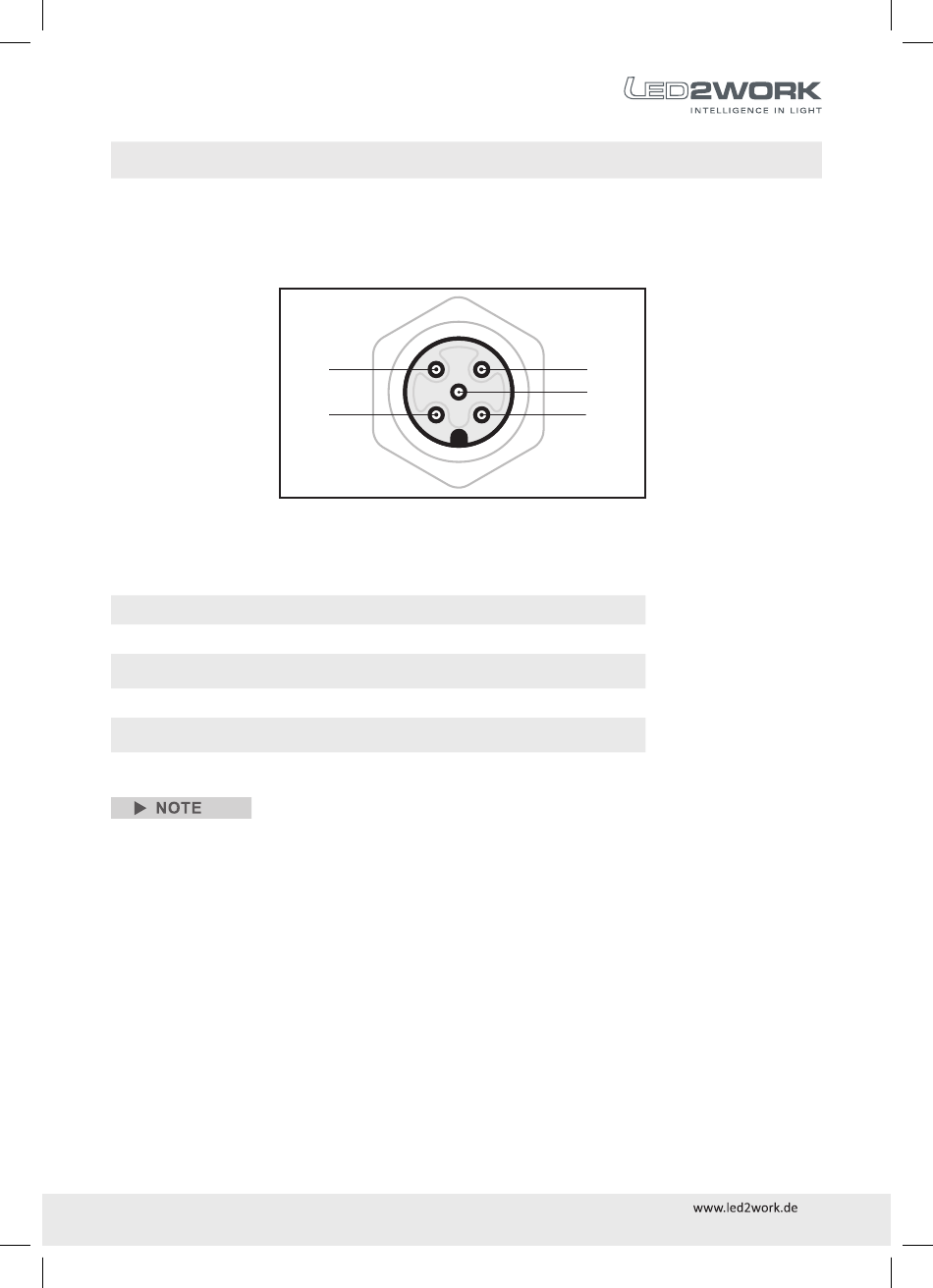

Schematic drawing of M12 plug
RGB - W
PIN 1 = 24V DC
PIN 2 = 24V DC
PIN 3 = GND
PIN 4 = 24V DC
PIN 5 24V DC
Other colours can be displayed by gating two or three
pins simultaneously.
4
1
LED colour:
LED colour:
LED colour:
LED colour:
3
5
2
green
blue
red
white
