ENGLISH
8

CONNECTIONS

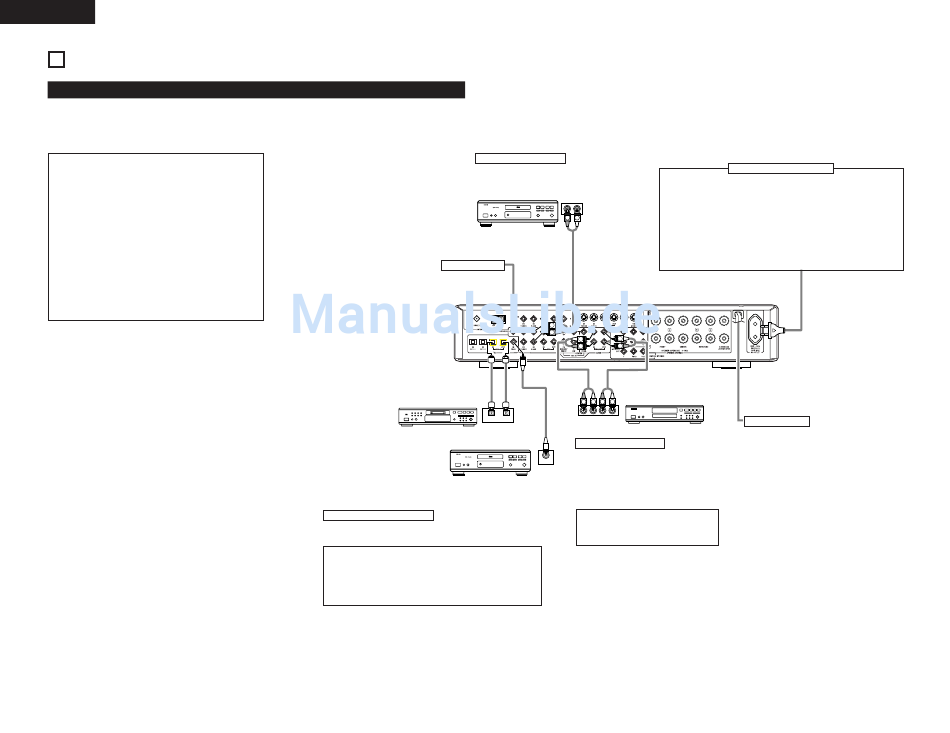

Connecting the audio components
• When making connections, also refer to the operating instructions of the other components.
The power to these outlets is turned on and off when the power is switched between on and standby from
the remote control unit or power switch.
• Do not plug in the AC cord until all connections have
been completed.
• Be sure to connect the left and right channels
properly (left with left, right with right).
• Insert the plugs securely. Incomplete connections
will result in the generation of noise.
• Use the AC OUTLET for audio equipment only.
Do not use them for hair driers, etc.
• Note that binding pin plug cords together with AC
cords or placing them near a power transformer will
result in generating hum or other noise.
• Noise or humming may be generated if a connected
audio equipment is used independently without
turning the power of this unit on. If this happens,
turn on the power of the this unit.
6
Connecting a CD player
Connect the CD player's analog output
jacks (ANALOG OUTPUT) to this unit's
V. AUX jacks using pin plug cords.
Subwoofer jack
Connect the internal amplifier's subwoofer to
the subwoofer terminal. (Refer to page 10.)
MD recorder, CD recorder or
other component equipped with
digital input/output jack
B
OUTPUT INPUT
OPTICAL
DIGITAL AUDIO DIGITAL AUDIO
CD player or other component
equipped with digital output jacks
Connecting the DIGITAL jacks
Use these for connections to audio (video) equipment with digital
output. Refer to page 14 for instructions on setting this terminal.
NOTES:
• Use 75 Ω/ohms cable pin cords for coaxial connections.
• Use optical cables for optical connections, removing the cap
before connecting.
• The main unit's power must be turned on when recording the
AVR-770SD.
AC OUTLET
• SWITCHED (total capacity – 100 W)
The power to these outlets is turned on and off in conjunction with
OUTPUT
the POWER operation switch on the main unit, and when the power
R L
is switched between on and standby from the remote control unit.
DIGITAL AUDIO DIGITAL AUDIO
No power is supplied from these outlets when this unit's power is at
R L
standby. Never connect equipment whose total capacity is above 100
CD player W.
NOTE:
Only use the AC OUTLET for audio equipment. Never use them for
hair driers, TVs or other electrical appliances.
L
R
L
L
R R
CD recorder or Tape deck
R L R L
B
R L R L
OUTPUT INPUT
Connecting a tape deck
Connections for recording:
COAXIAL Connect the tape deck's recording input jacks (LINE IN or REC) to this unit's tape
OUTPUT
recording (CDR/TAPE OUT) jacks using pin plug cords.
Connections for playback:
Connect the tape deck's playback output jacks (LINE OUT or PB) to this unit's tape
playback (CDR/TAPE IN) jacks using pin plug cords.
NOTE:
If humming noise is generated by a tape
deck, etc., move the tape deck away.
Connecting the AC OUTLET
Power supply cord
AC 230V, 50Hz
