7.

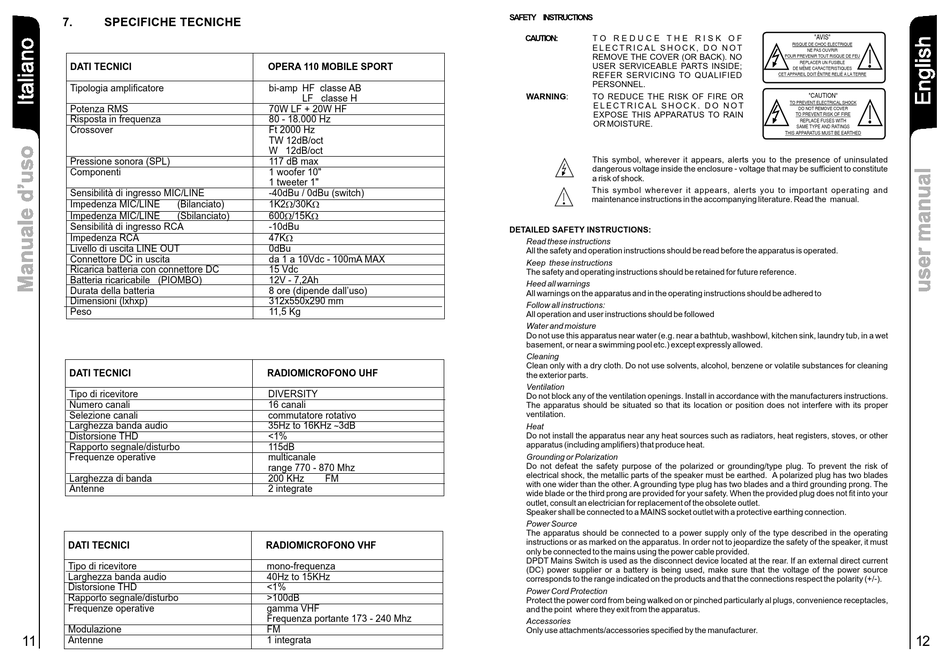

SPECIFICHE TECNICHE

DATI TECNICI
Tipologia amplificatore
Potenza RMS
Risposta in frequenza
Crossover
Pressione sonora (SPL)
Componenti
Sensibilità di ingresso MIC/LINE
Impedenza MIC/LINE (Bilanciato)
Impedenza MIC/LINE (Sbilanciato)
Sensibilità di ingresso RCA
Impedenza RCA
Livello di uscita LINE OUT
Connettore DC in uscita
Ricarica batteria con connettore DC
Batteria ricaricabile (PIOMBO)
Durata della batteria
Dimensioni (lxhxp)
Peso
DATI TECNICI
Tipo di ricevitore
Numero canali
Selezione canali
Larghezza banda audio
Distorsione THD
Rapporto segnale/disturbo
Frequenze operative
Larghezza di banda
Antenne
DATI TECNICI
Tipo di ricevitore
Larghezza banda audio
Distorsione THD
Rapporto segnale/disturbo
Frequenze operative
Modulazione
11
Antenne
OPERA 110 MOBILE SPORT
bi-amp HF classe AB
LF classe H
70W LF + 20W HF
80 - 18.000 Hz
Ft 2000 Hz
TW 12dB/oct
W 12dB/oct
117 dB max
1 woofer 10"
1 tweeter 1"
-40dBu / 0dBu (switch)
1K2W/30KW
600W/15KW
-10dBu
47KW
0dBu
da 1 a 10Vdc - 100mA MAX
15 Vdc
12V - 7,2Ah
8 ore (dipende dall'uso)
312x550x290 mm
11,5 Kg
RADIOMICROFONO UHF
DIVERSITY
16 canali
commutatore rotativo
35Hz to 16KHz 3dB
~
<1%
115dB
multicanale
range 770 - 870 Mhz
200 KHz FM
2 integrate
RADIOMICROFONO VHF
mono-frequenza
40Hz to 15KHz
<1%
>100dB
gamma VHF
Frequenza portante 173 - 240 Mhz
FM
1 integrata
SAFETY INSTRUCTIONS
CAUTION: T O R E D U C E T H E R I S K O F
E L E C T R I C A L S H O C K , D O N O T
REMOVE THE COVER (OR BACK). NO
USER SERVICEABLE PARTS INSIDE;
REFER SERVICING TO QUALIFIED
PERSONNEL.
WARNING: TO REDUCE THE RISK OF FIRE OR
E L E C T R I C A L S H O C K . D O N O T
EXPOSE THIS APPARATUS TO RAIN
OR MOISTURE.
This symbol, wherever it appears, alerts you to the presence of uninsulated
dangerous voltage inside the enclosure - voltage that may be sufficient to constitute
a risk of shock.
This symbol wherever it appears, alerts you to important operating and
maintenance instructions in the accompanying literature. Read the manual.
DETAILED SAFETY INSTRUCTIONS:
Read these instructions
All the safety and operation instructions should be read before the apparatus is operated.
Keep these instructions
The safety and operating instructions should be retained for future reference.
Heed all warnings
All warnings on the apparatus and in the operating instructions should be adhered to
Follow all instructions:
All operation and user instructions should be followed
Water and moisture
Do not use this apparatus near water (e.g. near a bathtub, washbowl, kitchen sink, laundry tub, in a wet
basement, or near a swimming pool etc.) except expressly allowed.
Cleaning
Clean only with a dry cloth. Do not use solvents, alcohol, benzene or volatile substances for cleaning
the exterior parts.
Ventilation
Do not block any of the ventilation openings. Install in accordance with the manufacturers instructions.
The apparatus should be situated so that its location or position does not interfere with its proper
ventilation.
Heat
Do not install the apparatus near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
Grounding or Polarization
Do not defeat the safety purpose of the polarized or grounding/type plug. To prevent the risk of
electrical shock, the metallic parts of the speaker must be earthed. A polarized plug has two blades
with one wider than the other. A grounding type plug has two blades and a third grounding prong. The
wide blade or the third prong are provided for your safety. When the provided plug does not fit into your
outlet, consult an electrician for replacement of the obsolete outlet.
Speaker shall be connected to a MAINS socket outlet with a protective earthing connection.
Power Source
The apparatus should be connected to a power supply only of the type described in the operating
instructions or as marked on the apparatus. In order not to jeopardize the safety of the speaker, it must
only be connected to the mains using the power cable provided.
DPDT Mains Switch is used as the disconnect device located at the rear. If an external direct current
(DC) power supplier or a battery is being used, make sure that the voltage of the power source
corresponds to the range indicated on the products and that the connections respect the polarity (+/-).
Power Cord Protection
Protect the power cord from being walked on or pinched particularly al plugs, convenience receptacles,
and the point where they exit from the apparatus.
Accessories
Only use attachments/accessories specified by the manufacturer.
"AVIS"
RISQUE DE CHOC ELECTRIQUE
NE PAS OUVRIR
POUR PREVENIR TOUT RISQUE DE FEU
REPLACER UN FUSIBLE
DE MÊME CARACTERISTIQUES
CET APPAREIL DOIT ÊNTRE RELIÉ A LA TERRE
"CAUTION"
TO PREVENT ELECTRICAL SHOCK
DO NOT REMOVE COVER
TO PREVENT RISK OF FIRE
REPLACE FUSES WITH
SAME TYPE AND RATINGS
THIS APPARATUS MUST BE EARTHED
12
