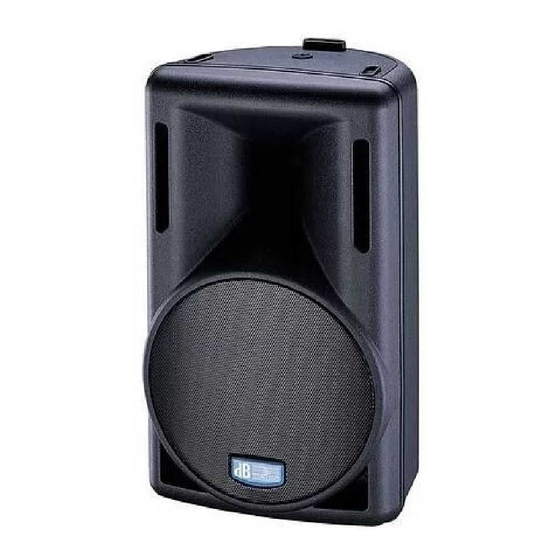

dB Technologies OPERA 110 MOBILE Bedienungsanleitung

Lautsprecherbox
Vorschau ausblenden Andere Handbücher für OPERA 110 MOBILE:

Werbung

Verfügbare Sprachen

Verfügbare Sprachen

IMPORTANT NOTES
Before connecting and using the speaker, please read the instructions in this manual
carefully and keep it for future reference.
This manual is to be considered an integral part of the product, and must always accompany
the speaker when it changes ownership as a reference for correct installation and operation
as well as for the safety regulations.
dB Technologies will not assume any responsibility for incorrect installation of the speaker.
CAUTION
To avoid the risk of fire or electrical shock, never allow the speaker to be exposed to rain or
dampness.
SAFETY PRECAUTIONS
1.
The power supply voltage of this speaker has a sufficiently high value to involve a risk
of electrocution; therefore,never install or connect the speaker with the power supply
switched on.
2.
Before using the speaker, make sure that your mains voltage corresponds to the value
indicated on the rear panel of the speaker.
3.
To prevent the risk of electrical shock, the metallic parts of the speaker must be
earthed. If the current outlet used for supplying the speaker, is equipped with an earth
terminal, the speaker is earthed by means of the power cable.
4.
To avoid the risk of fire or electrical shock, make sure that the power supply cable
cannot be stepped on or crushed by objects, and to prevent any damage to the cable,
never bend it excessively, jerk or cut it.
5.
To prevent the risk of electrical shock, never open the speaker. There are no parts on
the inside that need to be accessed by the user.
6.
Make sure that no objects or liquids can get into the speaker, as this could cause the
risk of fire or electrical shock.
7.
Never attempt to make repairs that are not described in this manual. Contact your
authorized service centre or qualified personnel should any of the following occur:
A.
The speaker does not function (or functions in an anomalous way).
B.
The power supply cable has been damaged.
C.
Objects or liquids have got into the speaker.
D.
The speaker has been subject to heavy impact.
8.
When the speaker is not to be used for long periods of time, switch it off and
disconnect the power supply cable.
9.
If the speaker begins to emit any strange odours or smoke, switch it off immediately
and disconnect the power supply cable.
10.
To prevent the risk of electrical shock, never connect or disconnect the power cable
with your hands wet.Always grasp the plug directly, and never pull on the cable.
11.
The speaker is capable of producing high acoustic pressure levels that may damage
the hearing; we thus recommend that you regulate the volume attentively.
12.
In order not to jeopardize the safety of the speaker, it must only be connected to the
mains using the power cable provided. If the power cable plug does not fit your
electrical outlet, contact a qualified electrician to replace the outlet with a suitable one.
10

Werbung

Inhaltsverzeichnis
loading

Inhaltszusammenfassung für dB Technologies OPERA 110 MOBILE

  • Seite 1 Technologies will not assume any responsibility for incorrect installation of the speaker. CAUTION To avoid the risk of fire or electrical shock, never allow the speaker to be exposed to rain or dampness.
  • Seite 2: Operating Precautions

    OPERATING PRECAUTIONS Do not force the amplifier incorporated in the speaker to work in overload for extended periods of time. Never force the control elements (switches, controls, etc.). Do not use solvents, alcohol, benzene, or other volatile substances for cleaning the exterior parts of the speaker.
  • Seite 3: Power Supply

    1. CONTROLS AND FUNCTIONS (Fig.1) “VARIABLE VOLTAGE ” OUTPUT D.C. POWER CONNECTOR From this connector take the power voltage for CD players, cassette recorders..or for the active steerable antenna. “OVERLOAD” INDICATOR “12-20VDC” INPUT D.C. POWER CONNECTOR The indicator lights up red to indicate that the internal limiting circuit has tripped to By means of this connector, the battery can be recharged with variable power prevent amplifier distortion and protect the speakers against overloads.
  • Seite 4 Mains power supply volume of the signal/s at input and the general volume. The OPERA 110 MOBILE can be used connected directly to the mains like any speaker Tone control involves the microphone channel inputs to permit adjusting voice tones.
  • Seite 5: Technical Specification

    By connecting the mixed audio signal of one of the speakers to an MS 110 KIT repeater, Weight 12 Kg the radio signal can be launched to several OPERA 110 MOBILE units at the same time, covering a maximum distance of about 100 m (free range). The same work frequency TECHNICAL DETAILS...
  • Seite 6 Vermeiden Sie bei der Reinigung der Außenflächen die Verwendung von Alkohol, Sicherheitshinweise informieren kann. Benzin oder sonstigen flüchtigen Substanzen. Bei einer fehlerhaften Installation der Lautsprecherbox lehnt dB Technologies jegliche Haftung ab. ACHTUNG Stellen Sie die Lautsprecherbox stabil und sicher auf, so dass Gefahren für Personen oder Gegenstände unter allen Umständen vermieden werden.
  • Seite 7 BEDIENELEMENTE UND FUNKTIONEN (Abb. 1) OVERLOAD-ANZEIGE Die rote LED leuchtet auf, um das Ansprechen der Begrenzerschaltung zu signalisieren, die die Übersteuerung des Verstärkers verhindert und die Lautsprecher gegen Überbelastung schützt. REGLER”MASTERVOLUME” Dieser Regler dient zum Einstellen der Gesamtlautstärke des Lautsprechers. REGLER ”CD-AUX VOLUME”...
  • Seite 8 F u n k m i k r o f o n s w ä h l e n ( s i e h e d a s E t i k e t t f ü r d i e E n ts p r e c h u n g d e r Der OPERA 110 MOBILE kann wie jeder beliebige Aktivlautsprecher für den Betrieb auch Arbeitsfrequenzen).
  • Seite 9 1/4”-Klinkenstecker (6,3 mm) verwenden. Wenn es sich um einen Festfrequenzsender handelt, müssen Sie den der Sie können mehrere Lautsprecher vom Typ OPERA 110 MOBILE mit einem einzigen Arbeitsfrequenz des Senders entsprechenden Kanal aus den 16 verfügbaren Kanälen Funkmikrofonsender verwenden, wenn Sie alle Empfänger auf dieselbe Arbeitsfrequenz des Lautsprechers auswählen.
  • Seite 10: Technische Daten

    TECHNISCHE DATEN TECHNISCHE DATEN OPERA 110 MOBILE Verstärkertyp Bi-Amp HF Klasse AB LF Klasse H Musikleistung 40W LF + 10W HF Frequenzgang 80 - 18.000 Hz Crossover Ft 2000 Hz TW 12dB/oct W 12dB/oct Schalldruck (SPL) 117 dB max Komponenten 1 woofer 10"...
  • Seite 11 Fig. 1 Abb. 1...
  • Seite 12 SCHEMA A BLOCCHI COLLEGAMENTI ANTENNA MS 110 KIT MS 110 KIT ANTENNA CONNECTIONS BLOCK DIAGRAM ANSCHLÜSSE ANTENNE MS 110 KIT BLOCKSCHALTBILD CONEXIONES ANTENA MS 110 KIT SCHEMAS FONCTIONNELS CONNEXION ANTENNE MS 110 KIT DIAGRAMA EM BLOQUES Integrated AntennaTransmitter 16 Channels 9-12VDC UNBAL AUDIO LINE INPUT...
