LE100/1
24
Commissioning

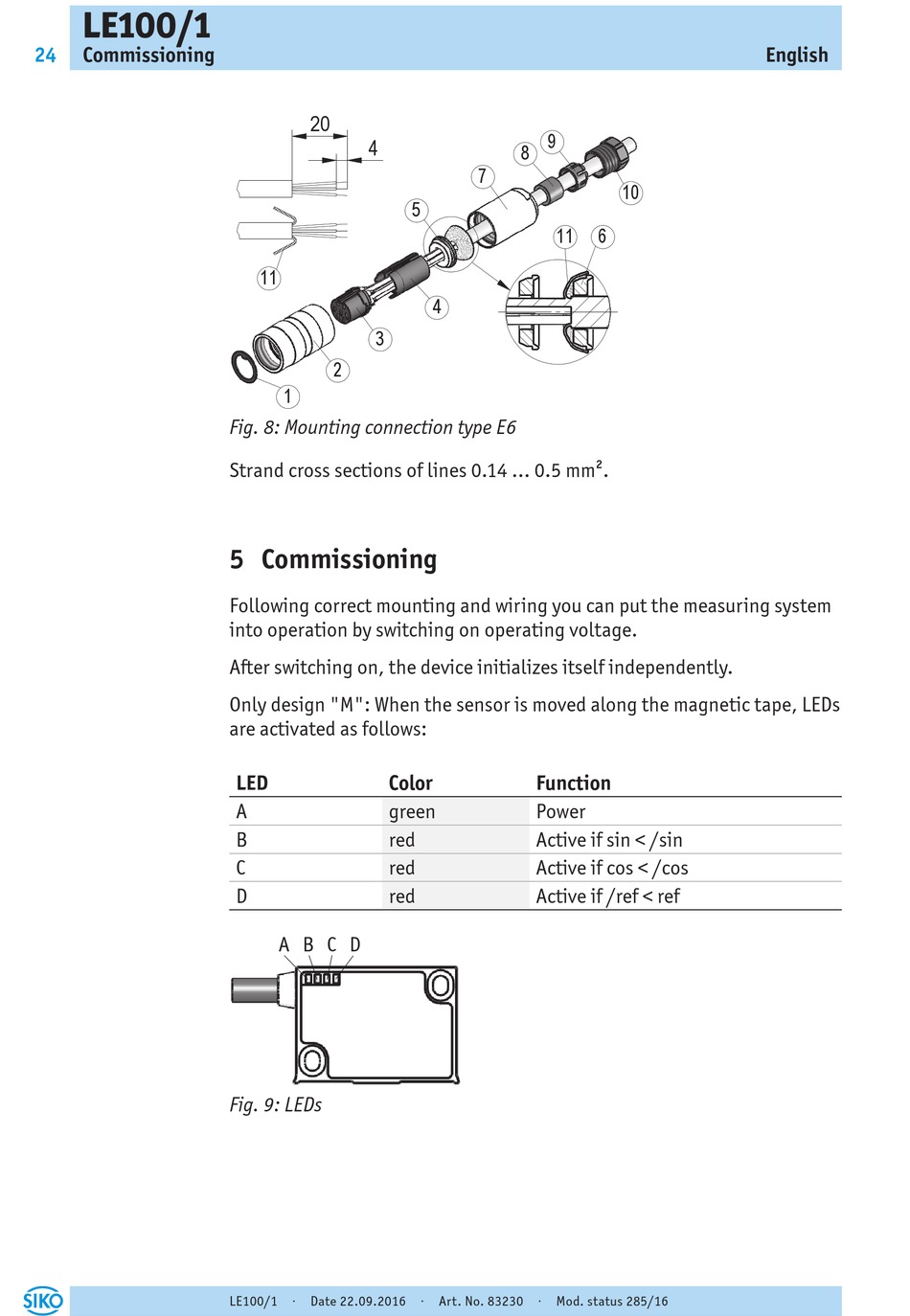

Fig. 8: Mounting connection type E6
Strand cross sections of lines 0.14 ... 0.5 mm².
5 Commissioning
Following correct mounting and wiring you can put the measuring system
into operation by switching on operating voltage.
After switching on, the device initializes itself independently.
Only design "M": When the sensor is moved along the magnetic tape, LEDs
are activated as follows:
LED
Color
A
green
B
red
C
red
D
red
A B C D
Fig. 9: LEDs
LE100/1 · Date 22.09.2016 · Art. No. 83230 · Mod. status 285/16
Function
Power
Active if sin < /sin
Active if cos < /cos
Active if /ref < ref
English
