4 STOVE USE
The stove has the advantage of combining heat from a wood flame with the convenience of automatic control of
temperature and the possibility of programming lighting and shutdown.
4.1 Introduction
For safe and reliable use:

when lighting the first time, unpleasant odors may be created, therefore ensure good ventilation of the room,
especially during the first period of operation;

the hopper must only be filled with pellets; make sure the bag does not come into contact with the hot
surfaces of the insert;

do not put any type of fuel other than recommended wood pellets in the hopper;

the unit must not be used as a waste incinerator;

the insert must work only and exclusively with the fire door always closed;

the fire door seals should be checked periodically to ensure air tightness;

to ensure efficient and correct operation, it is necessary to clean the brazier whenever pellets are loaded;

when lighting the insert for the first time, make sure to allow it to get hot gradually without overheating;

during lighting, operation and shutdown, the insert may creak a little due to the heat expansion.
The insert is operated using a remote control provided with seven buttons and an LCD display. The remote control
enables insert lighting and shutdown, adjustment during operation and the setting of management programs.
The insert also has a button control panel, which can be used instead of the remote control if necessary, allowing
only some functions.

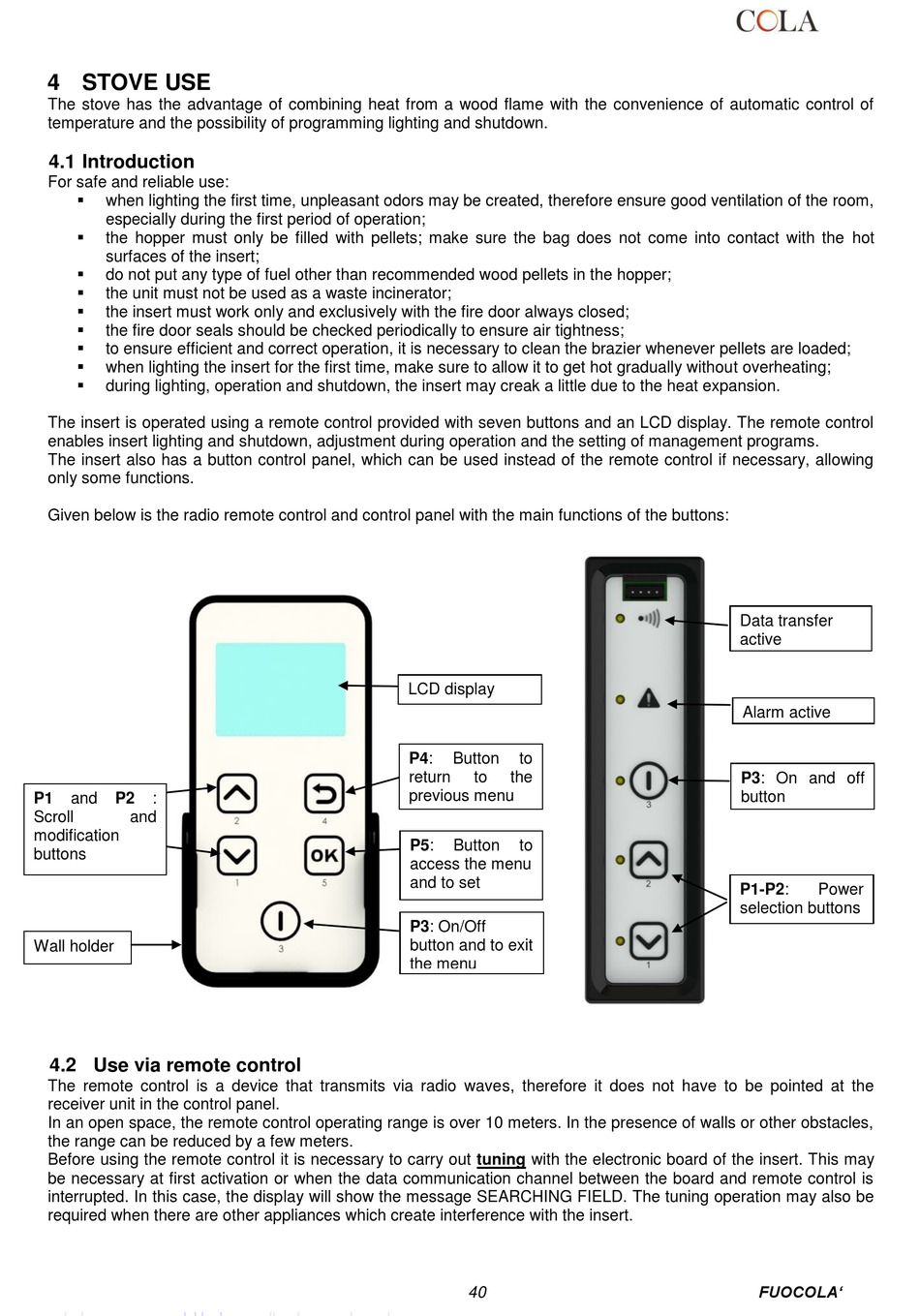

Given below is the radio remote control and control panel with the main functions of the buttons:
P1 and P2 :
Scroll and
modification
buttons
Wall holder
4.2 Use via remote control
The remote control is a device that transmits via radio waves, therefore it does not have to be pointed at the
receiver unit in the control panel.
In an open space, the remote control operating range is over 10 meters. In the presence of walls or other obstacles,
the range can be reduced by a few meters.
Before using the remote control it is necessary to carry out tuning with the electronic board of the insert. This may
be necessary at first activation or when the data communication channel between the board and remote control is
interrupted. In this case, the display will show the message SEARCHING FIELD. The tuning operation may also be
required when there are other appliances which create interference with the insert.
LCD display
P4: Button to
return to the
previous menu
P5: Button to
access the menu
and to set
P3: On/Off
button and to exit
the menu
40
Data transfer
active
Alarm active
P3: On and off
button
P1-P2: Power
selection buttons
FUOCOLA'
