Technical Characteristics; Características Técnicas; Caracteristiques Techniques; Technische Daten - Ecler MIMO88SG Bedienungsanleitung

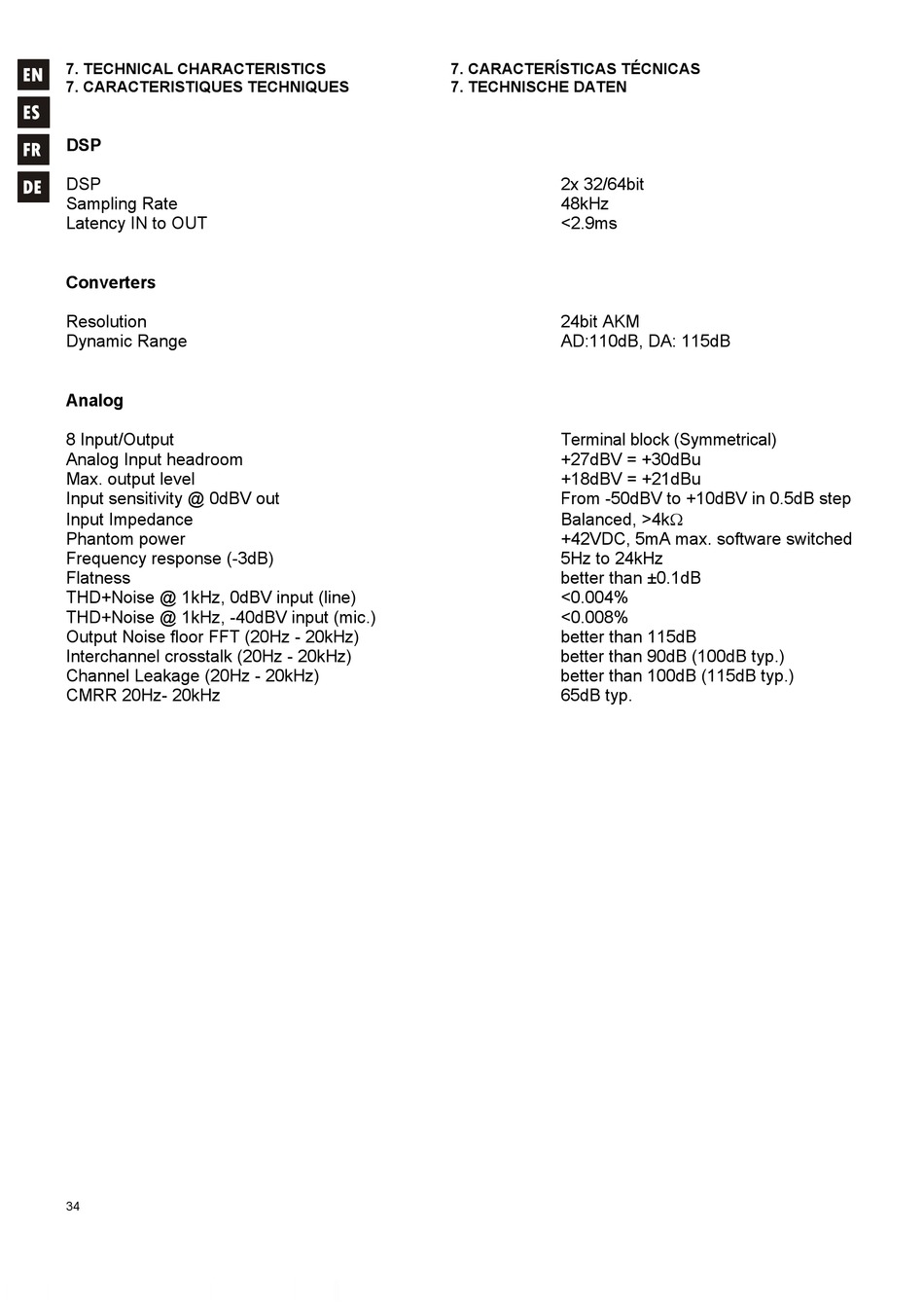

7. TECHNICAL CHARACTERISTICS

7. CARACTERISTIQUES TECHNIQUES

DSP
DSP
Sampling Rate
Latency IN to OUT
Converters
Resolution
Dynamic Range
Analog
8 Input/Output
Analog Input headroom
Max. output level
Input sensitivity @ 0dBV out
Input Impedance
Phantom power
Frequency response (-3dB)
Flatness
THD+Noise @ 1kHz, 0dBV input (line)
THD+Noise @ 1kHz, -40dBV input (mic.)
Output Noise floor FFT (20Hz - 20kHz)
Interchannel crosstalk (20Hz - 20kHz)
Channel Leakage (20Hz - 20kHz)
CMRR 20Hz- 20kHz
34
7. CARACTERÍSTICAS TÉCNICAS

7. TECHNISCHE DATEN

2x 32/64bit
48kHz
<2.9ms
24bit AKM
AD:110dB, DA: 115dB
Terminal block (Symmetrical)
+27dBV = +30dBu
+18dBV = +21dBu
From -50dBV to +10dBV in 0.5dB step
Balanced, >4k
+42VDC, 5mA max. software switched
5Hz to 24kHz
better than ±0.1dB
<0.004%
<0.008%
better than 115dB
better than 90dB (100dB typ.)
better than 100dB (115dB typ.)
65dB typ.
