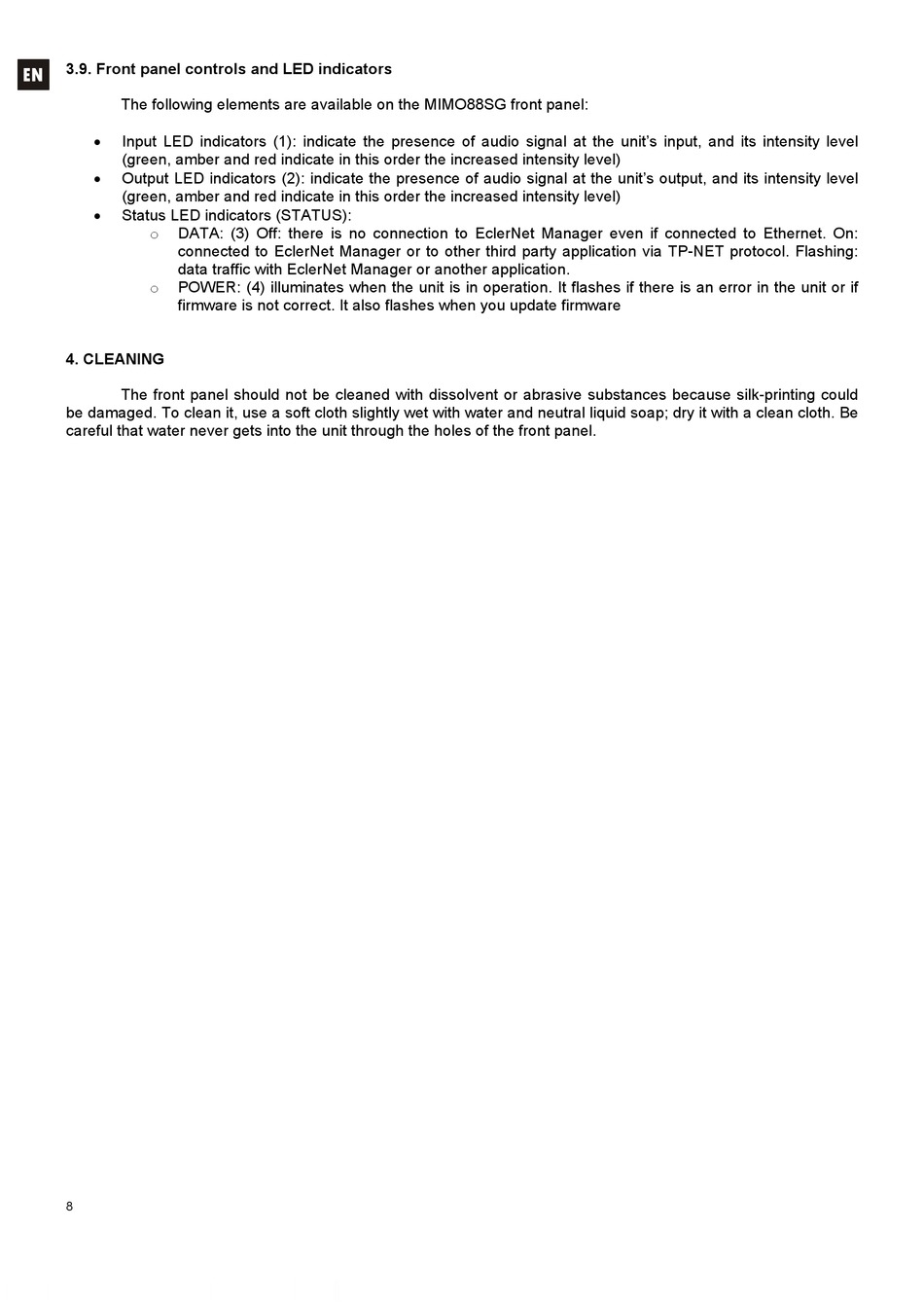

3.9. Front panel controls and LED indicators
The following elements are available on the MIMO88SG front panel:
Input LED indicators (1): indicate the presence of audio signal at the unit's input, and its intensity level
(green, amber and red indicate in this order the increased intensity level)
Output LED indicators (2): indicate the presence of audio signal at the unit's output, and its intensity level
(green, amber and red indicate in this order the increased intensity level)
Status LED indicators (STATUS):
DATA: (3) Off: there is no connection to EclerNet Manager even if connected to Ethernet. On:
o
connected to EclerNet Manager or to other third party application via TP-NET protocol. Flashing:
data traffic with EclerNet Manager or another application.
POWER: (4) illuminates when the unit is in operation. It flashes if there is an error in the unit or if
o
firmware is not correct. It also flashes when you update firmware
4. CLEANING
The front panel should not be cleaned with dissolvent or abrasive substances because silk-printing could
be damaged. To clean it, use a soft cloth slightly wet with water and neutral liquid soap; dry it with a clean cloth. Be
careful that water never gets into the unit through the holes of the front panel.
