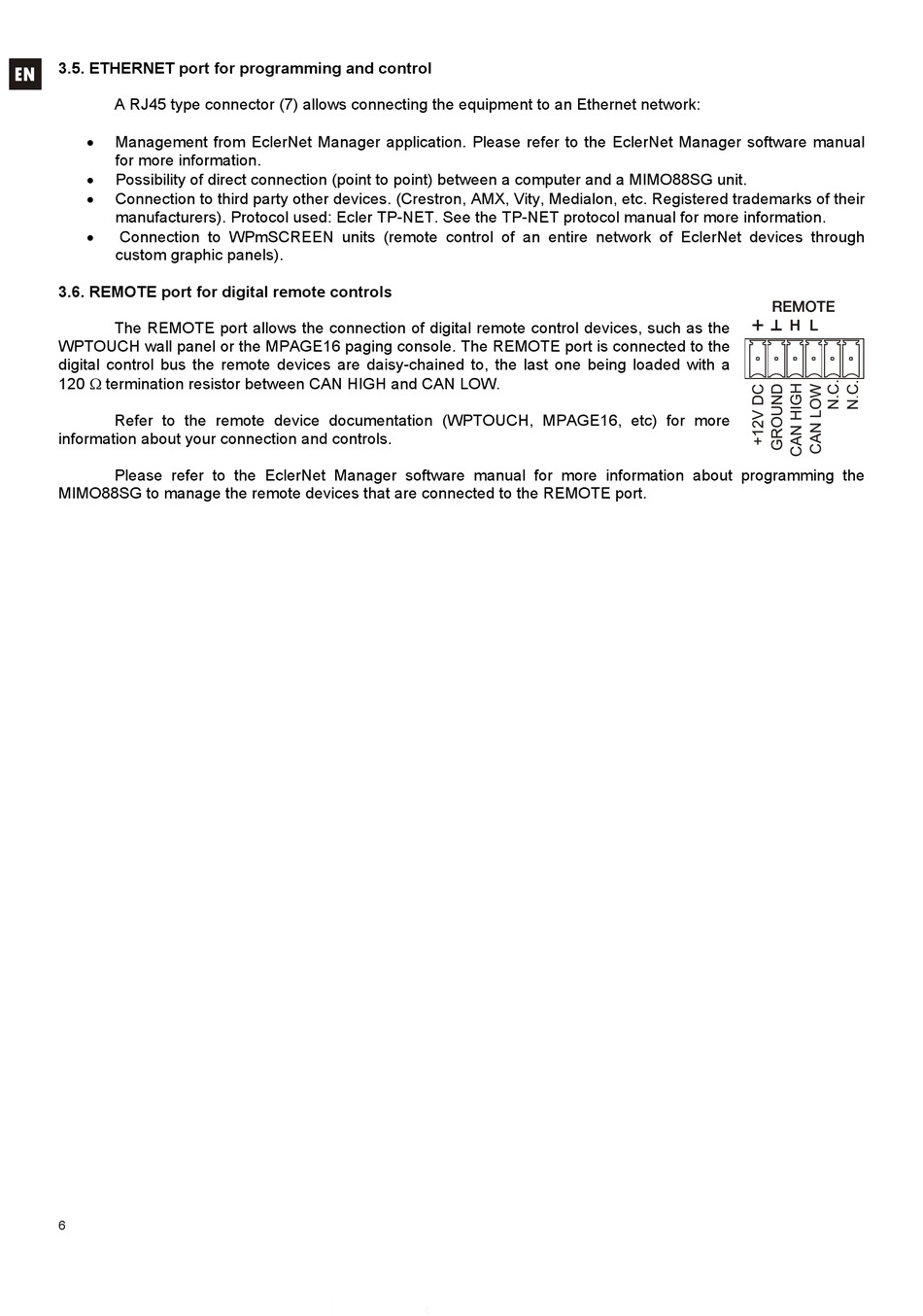

3.5. ETHERNET port for programming and control

A RJ45 type connector (7) allows connecting the equipment to an Ethernet network:

Management from EclerNet Manager application. Please refer to the EclerNet Manager software manual
for more information.

Possibility of direct connection (point to point) between a computer and a MIMO88SG unit.

Connection to third party other devices. (Crestron, AMX, Vity, Medialon, etc. Registered trademarks of their
manufacturers). Protocol used: Ecler TP-NET. See the TP-NET protocol manual for more information.

Connection to WPmSCREEN units (remote control of an entire network of EclerNet devices through
custom graphic panels).

3.6. REMOTE port for digital remote controls

The REMOTE port allows the connection of digital remote control devices, such as the
WPTOUCH wall panel or the MPAGE16 paging console. The REMOTE port is connected to the
digital control bus the remote devices are daisy-chained to, the last one being loaded with a
120  termination resistor between CAN HIGH and CAN LOW.
Refer to the remote device documentation (WPTOUCH, MPAGE16, etc) for more
information about your connection and controls.
Please refer to the EclerNet Manager software manual for more information about programming the
MIMO88SG to manage the remote devices that are connected to the REMOTE port.
6
