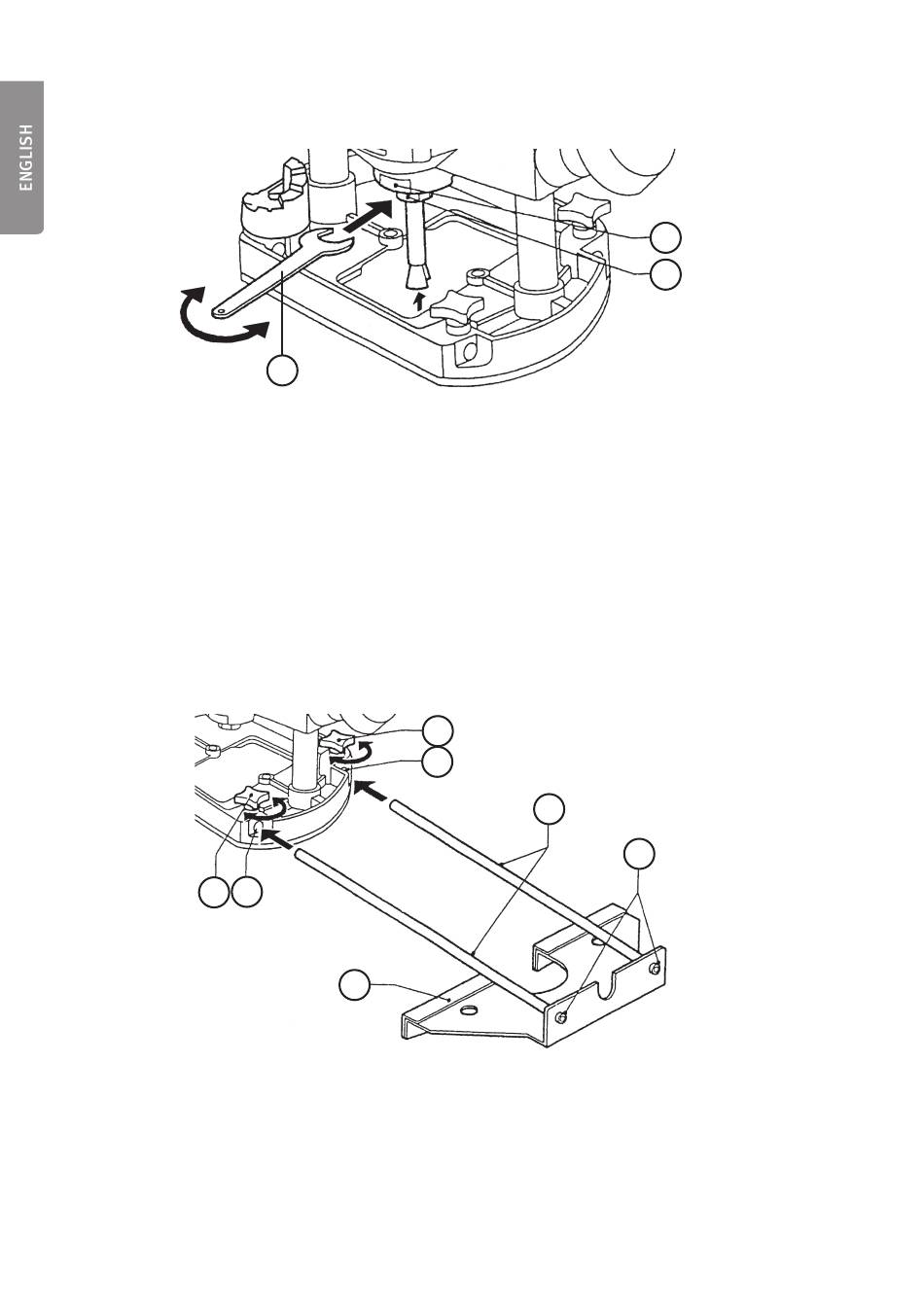

Router cutting fitting
15
Important!
• Unplug the router before any service or adjustment.
• Bear in mind that the cutter shank diameter must be compatible with
both the collet size and speed.
• Turn the router upside down.
• Press in the spindle lock button (11).
• Undo the nut (12) using the spanner (15).
• Insert the cutter using the appropriate collet, 6 or 8 mm.
• Tighten the collet nut using the spanner.
Attaching and adjusting the parallel guide
14 13
• Secure the two guide rods (18) to the parallel guide (17) using the screws (19).
• Undo the locking knobs (14).
• Slide the parallel guide rods through the holes (13).
• Adjust to a suitable setting.
• Tighten the locking knobs (14).
14
13
17
