WARNING
EN
• Install the equipment by carefully following the instructions given by the manufacturer and in compliance with the standards in
force.
• All the equipment must only be used for the purpose it was designed for. Comelit Group S.p.A. declines any responsibility for
improper use of the apparatus, for any alterations made by others for any reason or for the use of non-original accessories or
materials.
• All the products comply with the requirements of Directive 2006/95/EC, as certifi ed by the CE mark they carry.
• Installation, mounting and assistance procedures for electrical devices must only be performed by specialised electricians.
• Cut off the power supply before carrying out any maintenance work.

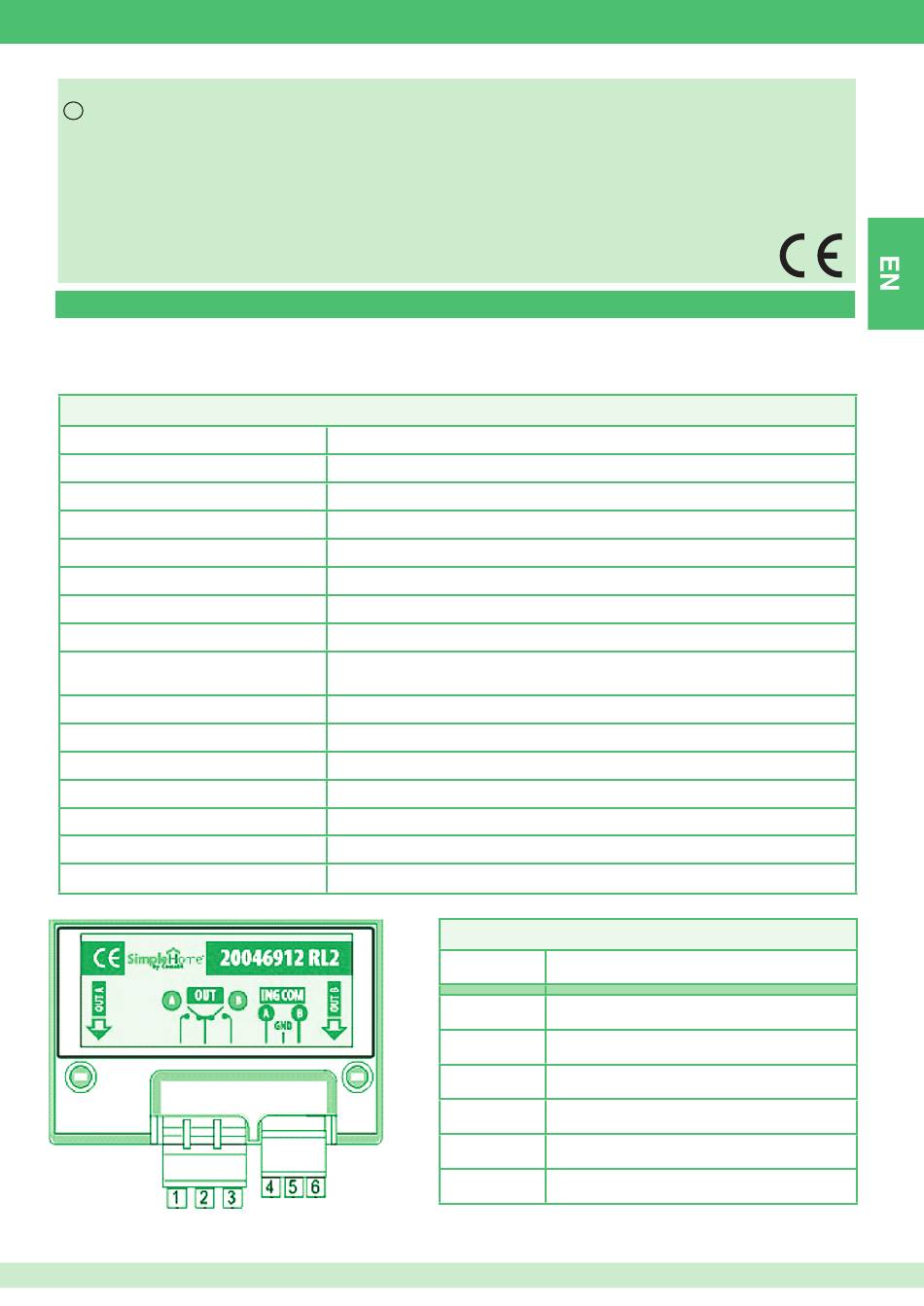

ART. 20046912 – SIMPLEHOME FLUSH-MOUNTED INTERFACE MODULE WITH 2 RELAYS (RL2)
Interface with two 6A resistive relays (cosϕ=1) for connection to bus modules with open-collector outputs, for example those controlling a
rolling shutter motor. The outputs on the device are not suitable for controlling particularly heavy loads or halogen and fl uorescent lamps.
When controlling these load types, a support relay must be used at each output.
Power supply voltage
Absorption
Inputs
Outputs
Protection
Indications
Terminals
Positioning
Applicable standards
Approvals
Operating temperature
Storage temperature
Relative air humidity
Accessories included
Weight
Dimensions

TECHNICAL CHARACTERISTICS

24 Vdc ± 5%
18 mA
2 for interfacing with two open collector outputs for input/output modules on bus
2 relay 230 Vac, resistive 6A (cos ϕ = 1)
against reverse polarity
2 output status indicator LEDs
removable
in fl ush-mounted boxes
electromagnetic compatibility: EN 50081-1 (interference emission)
and EN50082-2 (resistance to interference)
CE
0° to 50°C
-10° to +70°C
5 to 95% with no condensation
RT current transformer
42 g (not including packaging)
41x29x9 mm
Term.
1
2
3
4
5
6

CONNECTION TERMINALS

Function
Relay output 6A
Common
Relay output 6A
Relay control + 24 Vdc
Relay control common
Relay control + 24 Vdc
