ART. 20022611 - SIMPLEHOME/RS232 INTERFACE
Serial interface for SimpleHome system programming; to use it, plug the 9-pin connector into the serial port (RS232)
on the PC or another programming device and connect the 3 bus wires to the numbered terminal, observing the
correspondence indicated in the table below.
SimpleProg software is required to program SimpleHome automation devices.
Power supply voltage
Absorption
Serial side transmission speed
BUS side transmission speed
Serial side connector
BUS side connector
Operating temperature
Storage temperature
Relative air humidity
Indications
Dimensions
Weight
The software Simpleprog used to program SimpleHome modules and the Planux Manager device is available, free of
charge, from the website: www.comelitgroup.com
After installing the software, enter "comelit" in the username and password boxes to access the service.
The software is compatible with PC operating systems Windows XP, Windows Vista, Windows 7 and Windows 8.
If installing the software with a Windows Vista, Windows 7 or Windows 8 operating system, you will need to perform the
installation as the "Administrator".
4

TECHNICAL CHARACTERISTICS

24 Vdc ± 5%
20 mA
19200 bps
2400 bps
9-pin, for connection to RS232 serial port
removable terminal board
0° to 50°C
-10° to +70°C
5 to 95% with no condensation
1 indicator LED: when fl ashing, indicates data transmission via bus, when lit steadily indicates lack
of power supply negative or incorrect device connection
41 x 30 x 9 mm
60 g (module + connectors)
Time
232
BUS
1
2
3
Specifi cations are subject to change without notice.
3 2 1

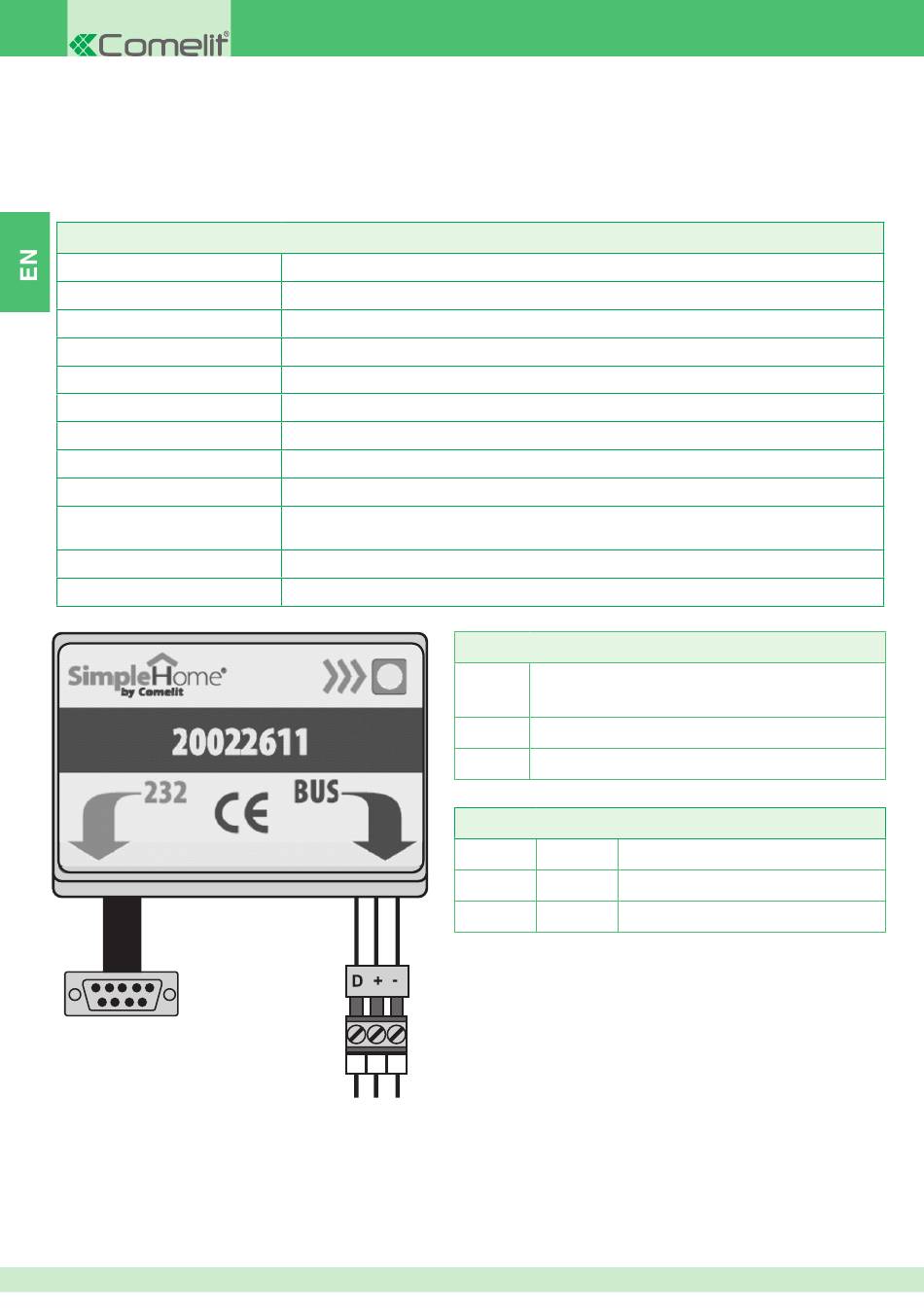

INTERFACE MODULE

- Flashing: indicates data transmission over the bus
- Lit steadily: indicates lack of power supply negative or
incorrect connection of the device
RS232 connector
SIMPLEHOME bus terminal board

CONNECTION TERMINALS

- BUS power supply negative
+ BUS power supply +24 Vdc
D BUS data line
