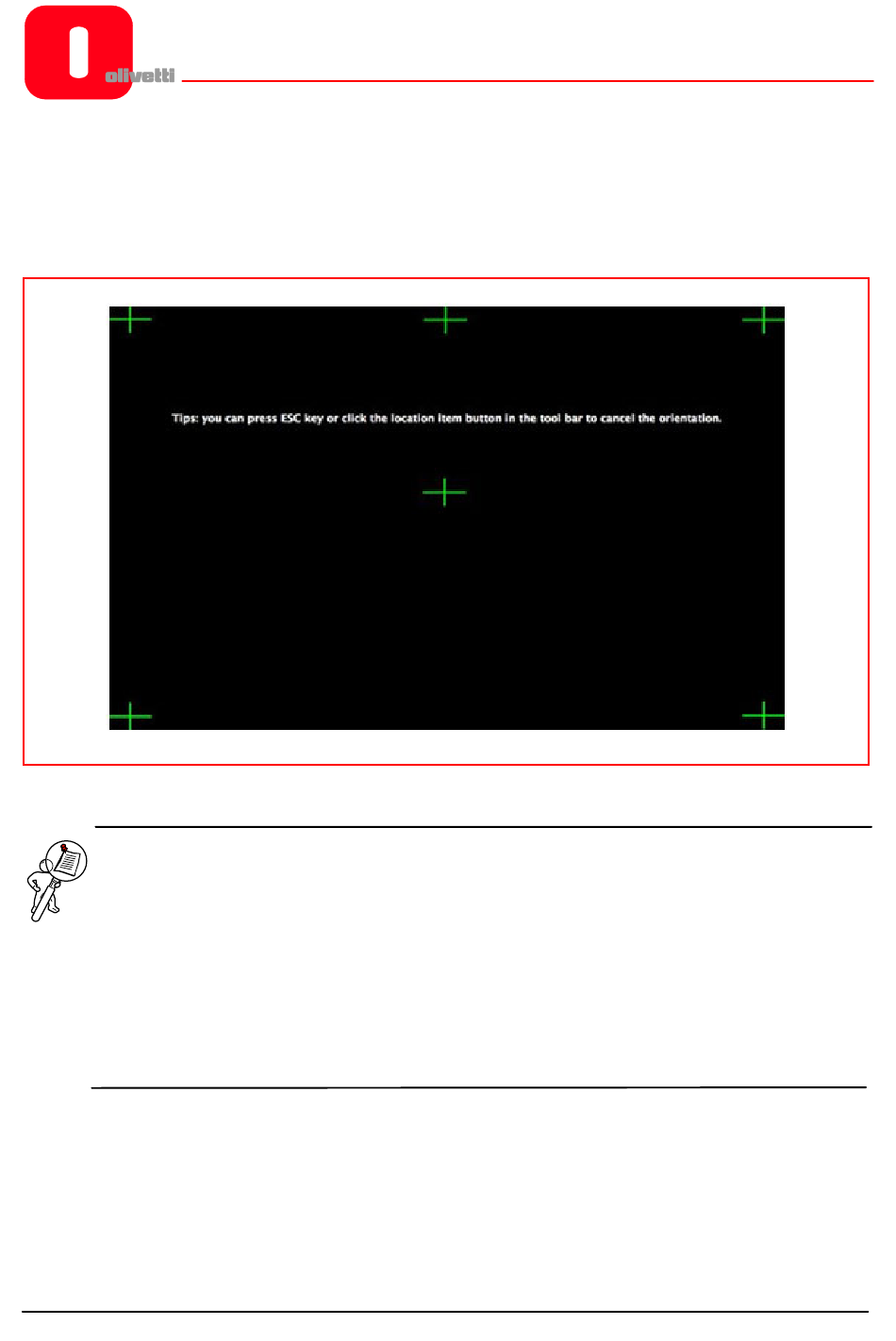

2. With the mouse left button click on "Re-orientation" to open the popup
window for Orientation shown below. With the electronic pen, click at the mid-
point of the flashing cross "+" on the whiteboard. Repeat the same operation for
all the other orientation points (there are six in all), being careful to center
precisely the mid-point of the flashing cross with the electronic pen.
INSTRUCTION: Select "Re-orientation" the first time you install the Oliboard
34
Driver, when the position of the projector or the Interactive
Whiteboard changes or when the display mode changes (e.g.
the image size or resolution).
To perform a rapid re-orientation, you can select "Previous re-
orientation record" as long as no changes have been made
since it was last used. If an accurate orientation is not required,
select "Default orientation".
OLIBOARD - Interactive Whiteboards
