Operation

A

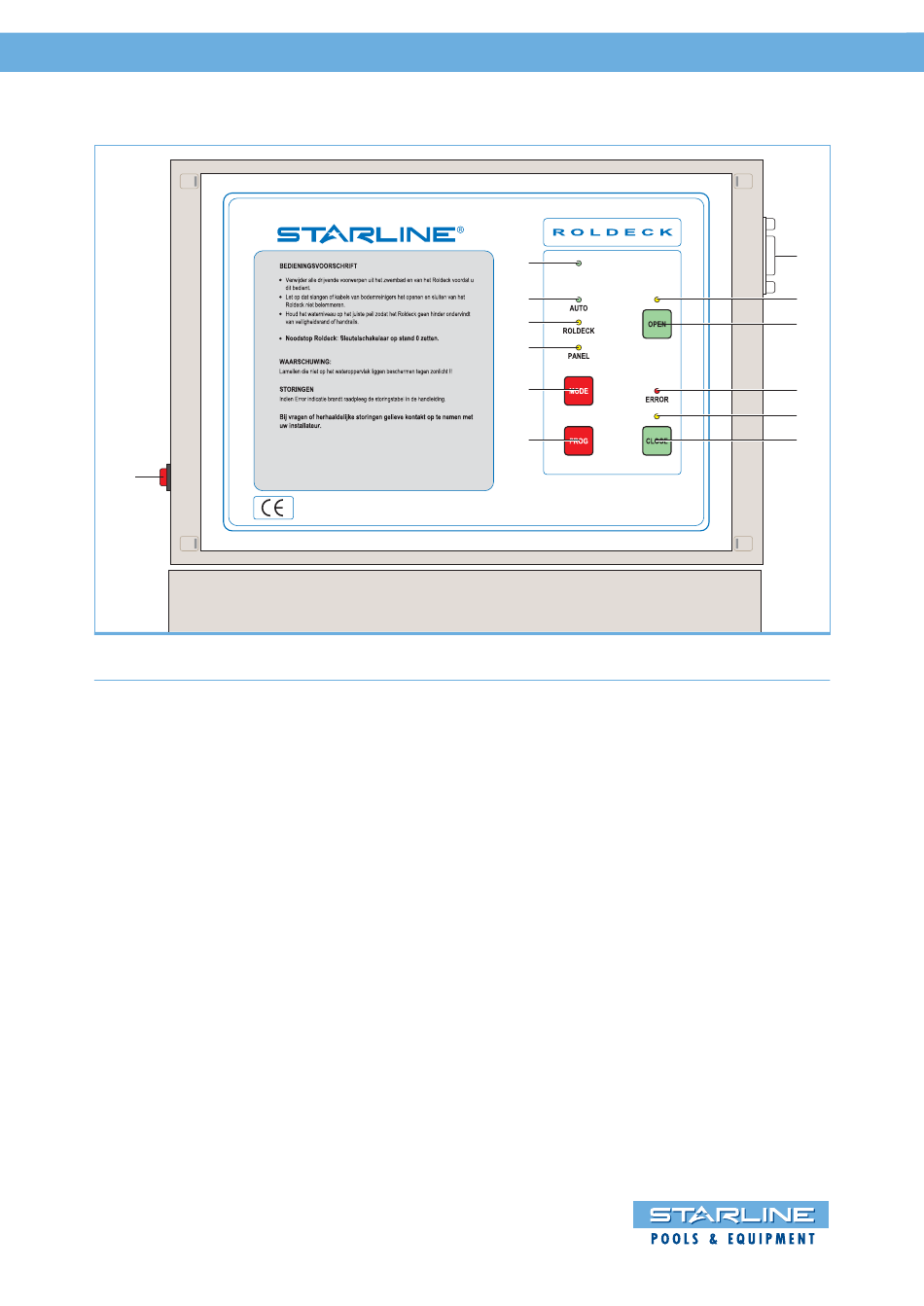

4.1 RD 2006 Roldeck Control

A On/Off switch
B LED indicator (ON)
C LED indicator (AUTO)
D LED indicator (ROLDECK)
E LED indicator (PANEL)
F LED indicator (ERROR)
G LED indicator (CLOSE)
H LED indicator (OPEN)
I MODE key (Programming)
J PROG key (Programming)
K OPEN key
L CLOSE key
M Connector
8
User manual Starline Roldeck
Control was enabled.
Control has been programmed.
Roldeck motor is running (LED is flashing).
Pit Cover motor is running.
System failure (LED will flash a number of times).
Roldeck is closing (LED is flashing)/is closed
(LED will light continuously).
Roldeck is opening (LED is flashing)/is open
(LED will light continuously).
Switching between various operation functions.
Programming of start and end positions of
Roldeck motor and Pit Cover motor.
Opening of the Roldeck.
Closing of the Roldeck.
For the programming plug and accessory connection.
RDCM – V01
B
C
D
E
I
J
M
H
K
F
G
L
