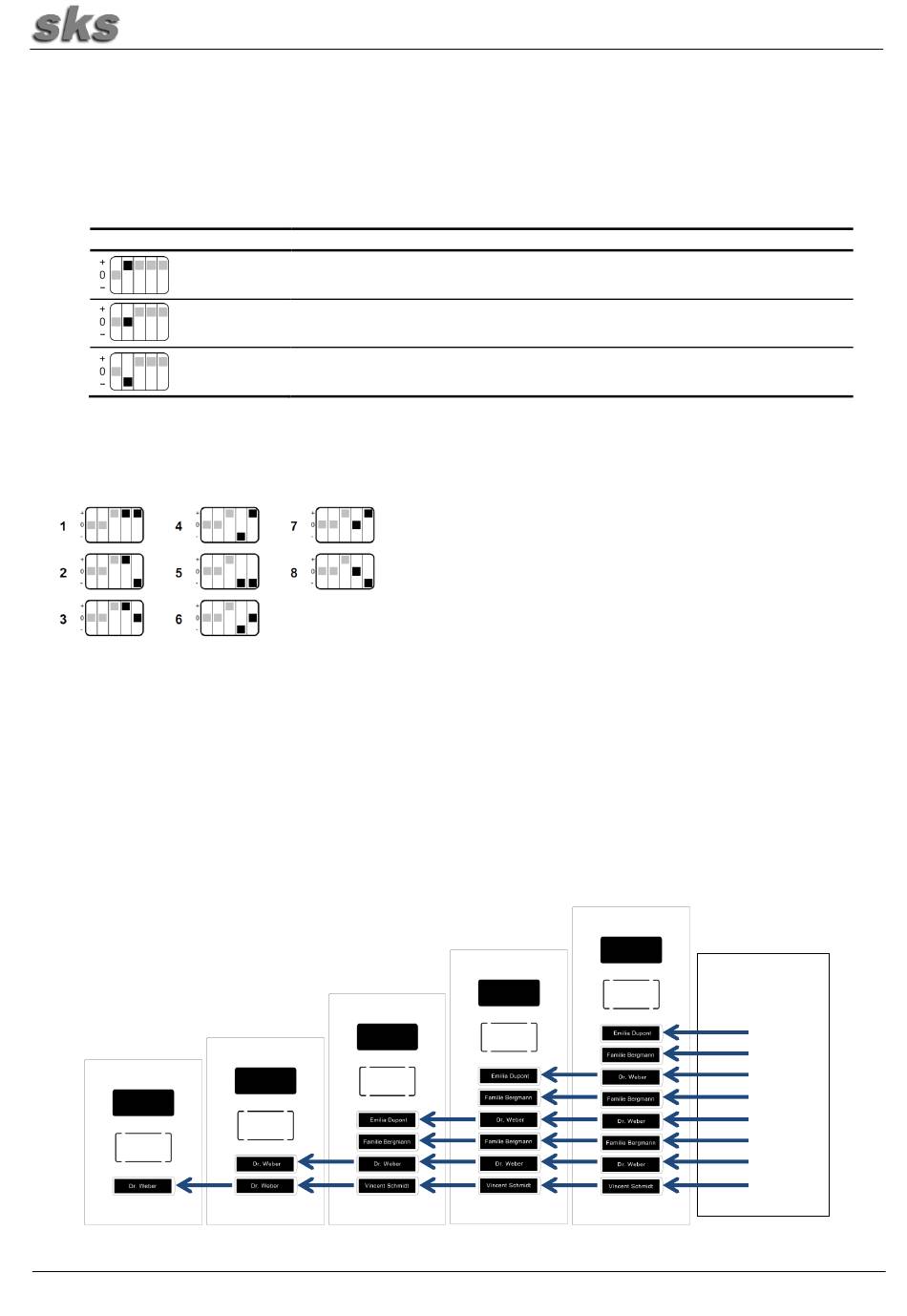

7. DIP switch settings

7.1 Setting the door opening interval

DIP switch No. 2 may be used to set the delay in the opening time of the door to 2 to 5 seconds. The
table shows the interval the door will stay open and the corresponding DIP switch settings
DIP switch position
(standard)

7.2 Door station address

8. Addresses of the bell buttons

If there was no special order, the addresses always begin with A1. The pictures below show the
addresses in accordance with the number of bell buttons at the door station. The indoor stations also
have a DIP switch at which the call address is set. Once the call address at the door station bell button is
the same as the call address set at the DIP switch at the indoor station, programming has been
completed. When the bell button is pushed, the respective indoor station will ring. The DIP switch
settings for each call address are listed in the Appendix. Additional information can also be found in the
instructions for mounting the individual stations.
dooropening time
2.0 seconds
3.5 seconds
5.0 seconds
The picture on the left shows the DIP switch setting for the door
station address. If only one door station is used, address 1 is
required. If several door stations are used, every door station
must have a different door station address. Only the DIP
switches 4 and 5 are used for the door station address.
~ 23 ~
Call address
of bell buttons
A8
A7
A6
A5
A4
A3
A2
A1
