Abgleich Leitungswiderstand Art. Nr.: 099-MM01LW-EW520 Der Widerstandswert der Leitungen kann direkt eingestellt oder auch durch die Stromquelle abgeglichen werden. Im Auslieferungszustand ist der Leitungswiderstand der Stromquellen auf 8 mOhm eingestellt. Dieser Wert entspricht einer 5 m Masseleitung, einem 1,5 m Zwischenschlauchpaket und einem 3 m wassergekühlten Schweißbrenner.
Seite 2

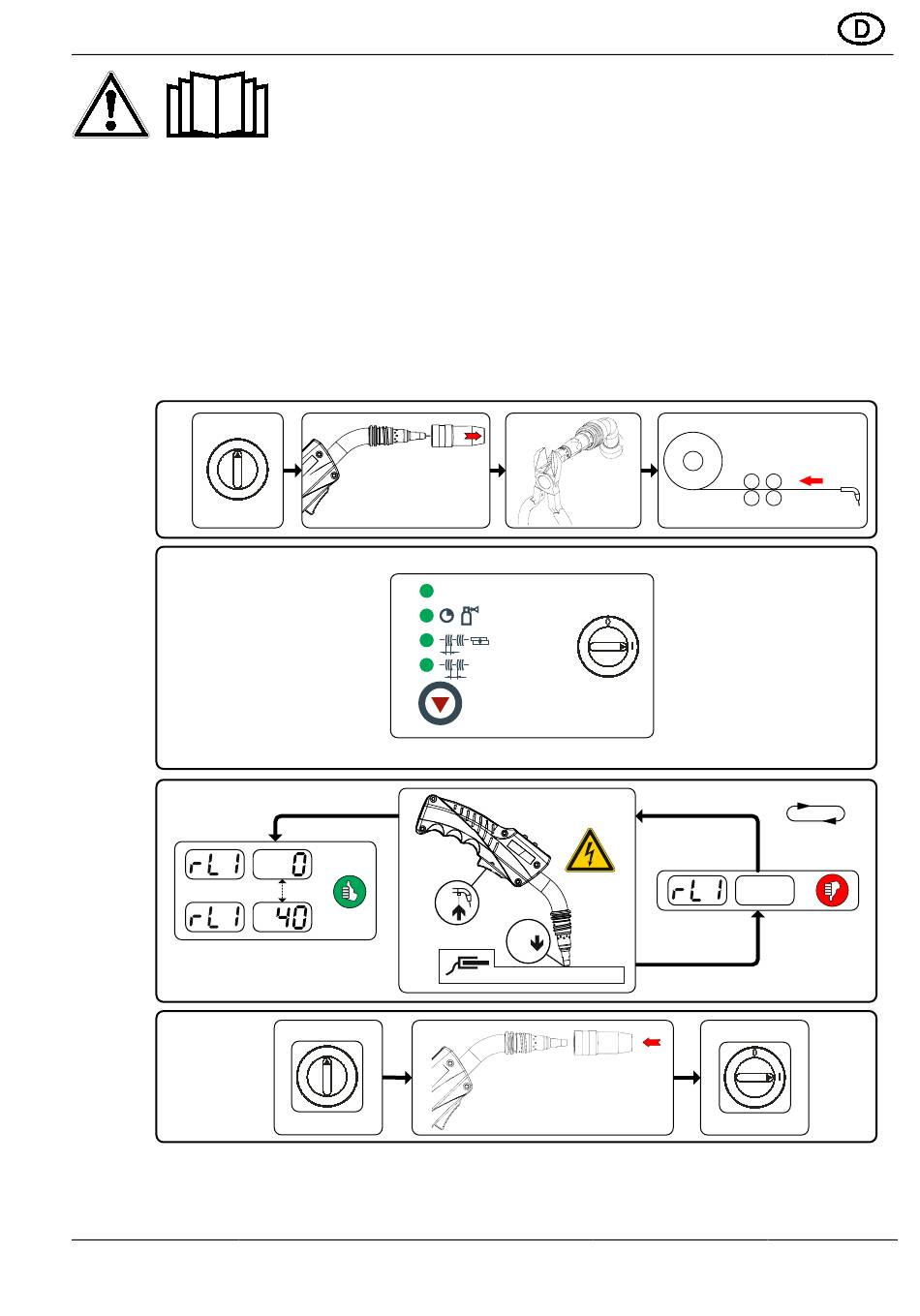

Abgleich Leitungswiderstand Art. Nr.: 099-MM01LW-EW520 1 Vorbereitung • Schweißgerät ausschalten. • Gasdüse des Schweißbrenners abschrauben. • Schweißdraht an der Stromdüse bündig abschneiden. • Schweißdraht am Drahtvorschubgerät ein Stück (ca. 50 mm) zurückziehen. In der Stromdüse sollte sich jetzt kein Schweißdraht mehr befinden.
Seite 3
Aligning the cable resistance Art. Nr.: 099-MM01LW-EW520 The resistance value of cables can either be set directly or it can be aligned using the power source. The factory setting of the power sources is 8 m-ohm. This value correponds to a 5 m earth cable, a 1.5 m intermediate hose package and a 3 m water-cooled welding torch.
Seite 4
Aligning the cable resistance Art. Nr.: 099-MM01LW-EW520 1 Preparation • Switch off the welding machine. • Unscrew the gas nozzle of the welding torch. • Cut off the welding wire to be flush with the contact tip. • Retract the welding wire a bit (approx. 50 mm) on the wire feeder. Now there should be no more welding wire in the contact tip.
