Speaker Out; Iec Mains Socket With Built-In Fuse Holder; Power On/Off; Mix6G3 Connection - LD Systems LDMIX62AG3 Bedienungsanleitung

22

SPEAKER OUT

Output (6.3 mm jack) with 70W RMS amplifier output for the passive speaker LDMIX6G3. The impedance of the connected speaker may
not be less than 4 ohms. The volume is adjusted parallel to the main volume using the MAIN LEVEL volume control (no. 17). The signal is
identical to the main signal.
23
REC OUT
Line output with cinch sockets. The signal received is identical to the main signal and picked up before the volume control of the main channel
(MAIN LEVEL) so it can be adjusted independently.
24
110 – 120 V / 220 – 240 V
Switch to set the operating voltage. The mains voltage provided by your energy supplier and the operating voltage of your device must be
the same!
25

IEC MAINS SOCKET WITH BUILT-IN FUSE HOLDER

IMPORTANT: BEFORE you use the device make sure that the mains voltage provided by your energy supplier and the operating voltage of
your device are the same! Replace the fuse only with a fuse of the same type and the same supply voltage (see label)!
In the event of repeated fuse failure, please contact an authorised service centre.
26
POWER ON / OFF
On / off switch for power supply to the device.
There is a 16 mm tripod flange (tripod optional) on two side panels for tripod mounting.

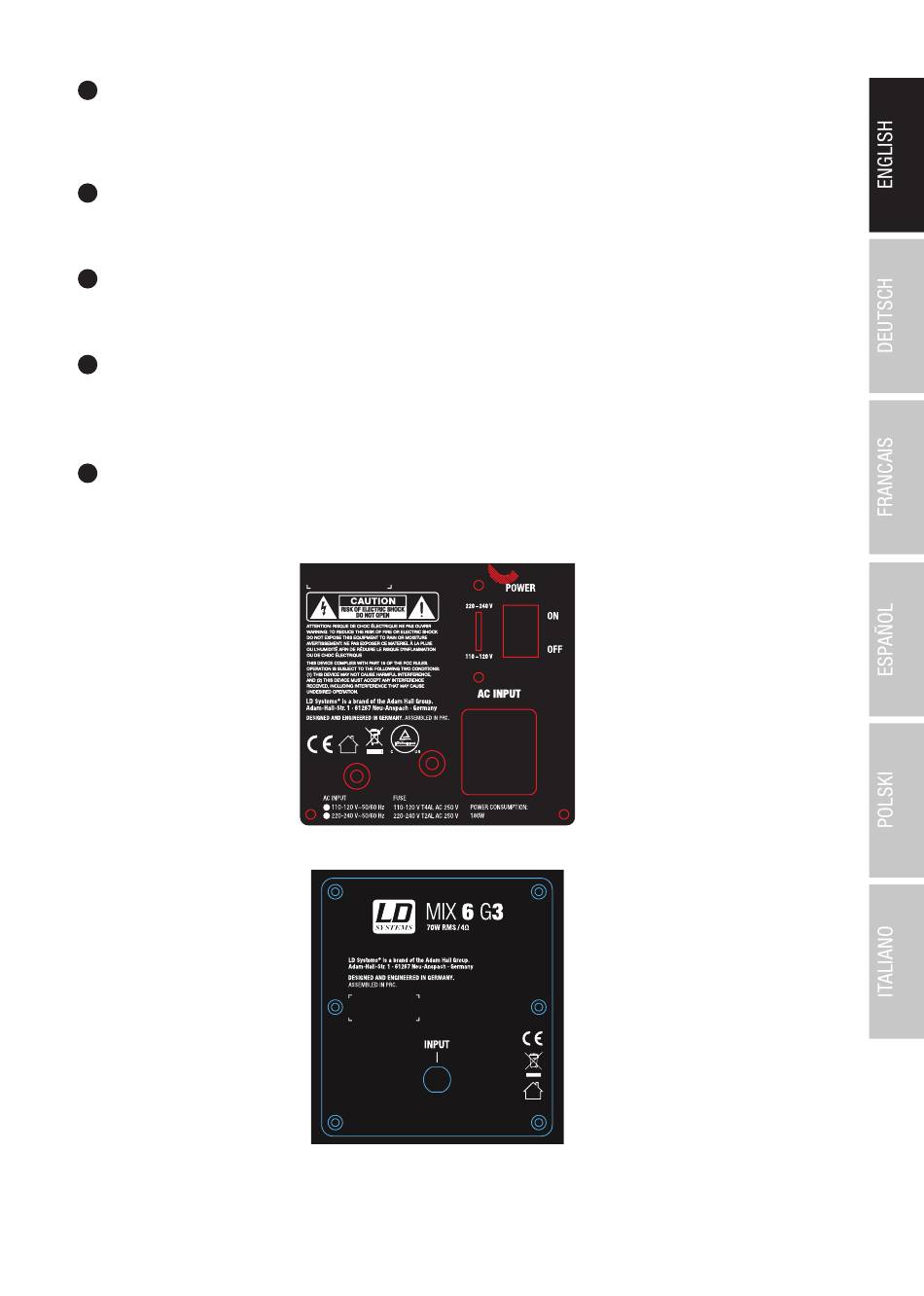

MIX6G3 CONNECTION

INPUT
The speaker input (6.3 mm jack socket) is on the back of the passive MIX6G3 speaker.
There is a 16 mm tripod flange (tripod optional) on two side panels for tripod mounting.
