Technische Daten
8.7 Anschlüsse
8.7.1 Eingangsanschluss X1
4-polig (codiert) Phoenix PCV 4 / 5-G-7.62 mit
Gegenstecker (mitgeliefert) PC 5 / 4-STF-7.62 (Drahtstärke
bis zu 6 mm
2
)
1
2
3
4

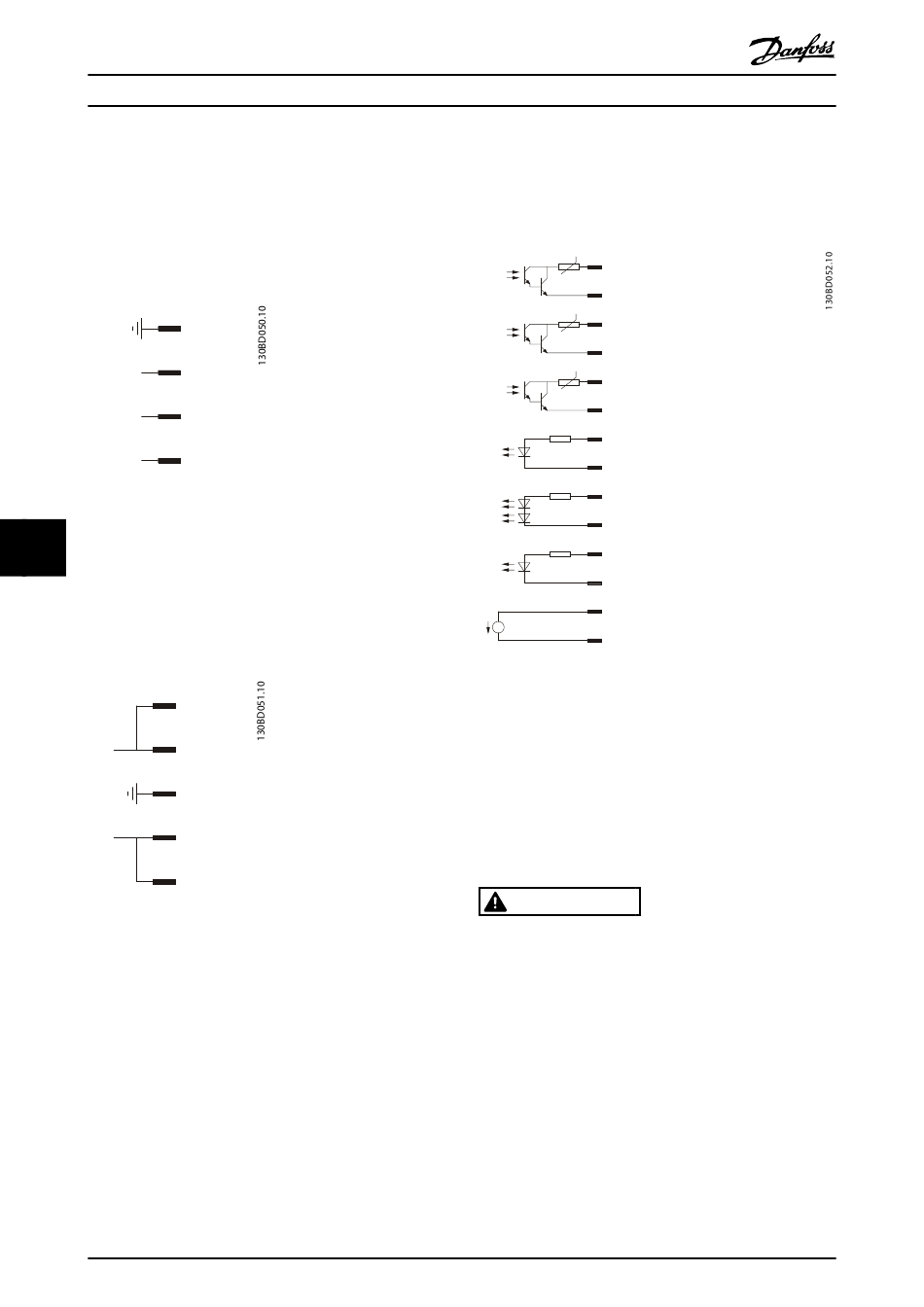

Abbildung 8.3 Eingangsanschluss X1
8
8
8.7.2 Ausgangsanschluss X2
5-polig, kann ebenfalls zum Durchschleifen verwendet
werden (max. 20 A). Phoenix PCV 4 / 5-G-7.62 mit
Gegenstecker (mitgeliefert) PC 5 / 5-STF-7.62 (Drahtstärke
2
bis zu 6 mm
)
1
2
3
4
5
Abbildung 8.4 Eingangsanschluss X2
24
VLT
PE
L1
L2
L3
+Uo.1
+Uo.2
PE
-Uo.1
-Uo.2
MG75H103 - VLT
®
ISD Spannungsversorgungsmodul Produkthandbuch
8.7.3 Signalanschluss X3
14-polig Phoenix MSTB 2.5 / 14-GF-5.08 mit Gegenstecker
(mitgeliefert) MSTB 2.5 / 14-STF-5.08
Internal Auxiliary Supply (12 V)
Abbildung 8.5 Signalanschluss X3
Nachstehend ein Beispiel für die Verdrahtung von Signal-
stecker X3 zur Aktivierung der Hardware:
•
Pin 13 an 11 an 9 an 7
•
Pin 14 an 12 an 10 an 8
WARNUNG
HOCHSPANNUNG!
Bei Verwendung des obigen Verdrahtungsbeispiels steht
die Ausgangsspannung von DC 300 V sofort zur
Verfügung, sobald die AC 400 V Versorgungsspannung
angeschlossen ist.
Verwenden Sie ein Relais zwischen Pins 9 und 7, um die
Ausgangspannung zu regeln. Die Ausgangsspannung von
DC 300 V wird aktiviert, wenn das Relais geschlossen wird.
®
ist eine eingetragene Marke von Danfoss
1
90 V OK+
Optocoupler active if output
voltage U o reduced (90 V) is OK
2
(Not valid for ISD 410)
90 V OK–
3
300 V OK+
Optocoupler active if output
voltage U o nominal (300 V) is OK
4
300 V OK–
5
Error+
Optocoupler active in case of
any failure / error
6
Error–
7
+12 V in
Output will be switched on if
10-28 V applied here
8
GND in
9
Setpoint U o nominal (300 V) if
+12 V in
10-28 V applied here, otherwise
10
U o reduced (90 V)
GND in
11
+12 V in
Setpoint I o limited nominal (10.2 A)
if 10-28 V applied here, otherwise
12
I o limited reduced (7.8 A)
GND in
13
+12 V out
This potential-free 12 V auxiliary
voltage can be used to supply the
14
above mentioned optocoupler
GND out
inputs
