121 4612 050 E

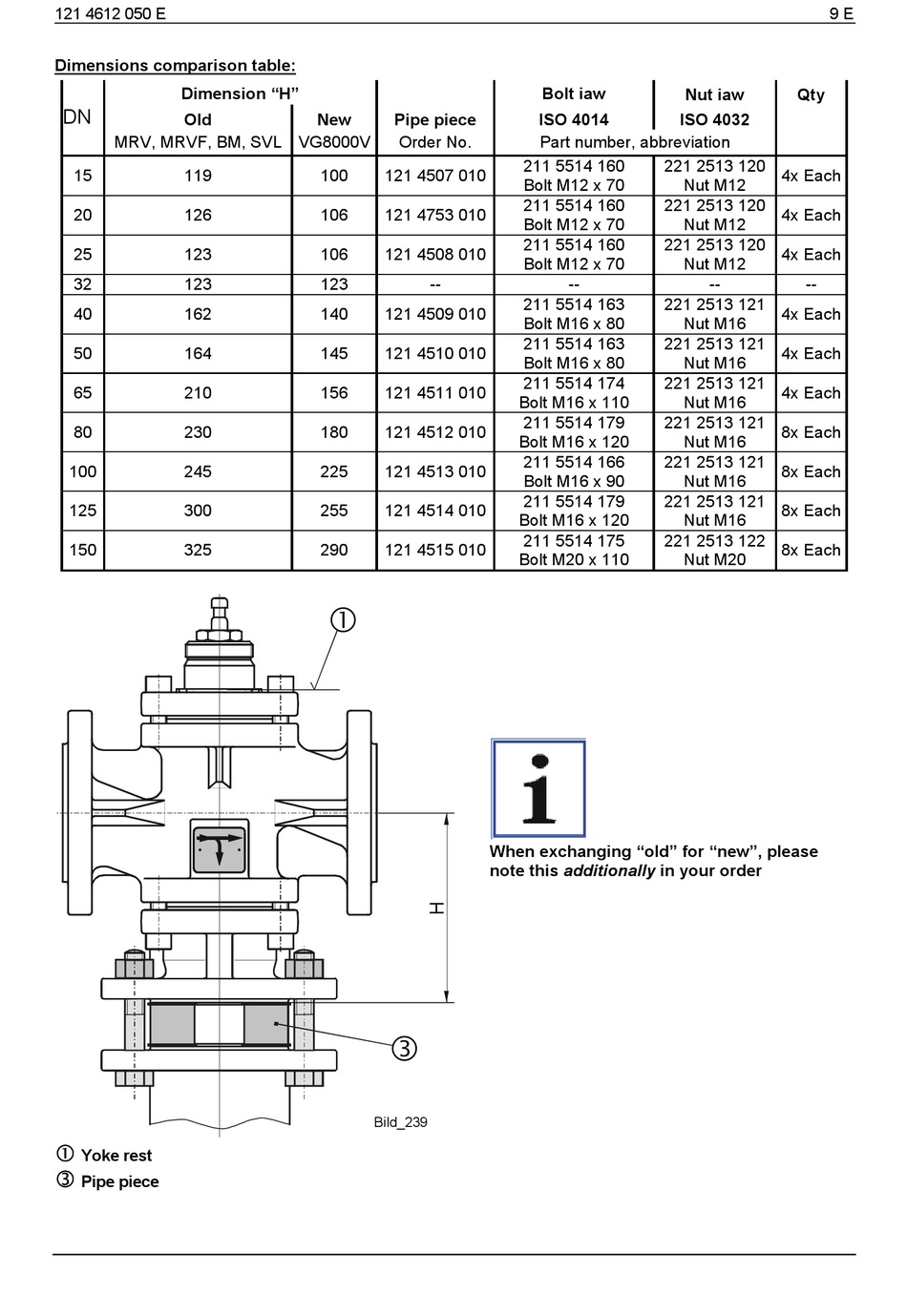

Dimensions comparison table:
Dimension "H"
DN
Old
MRV, MRVF, BM, SVL VG8000V
15
119
20
126
25
123
32
123
40
162
50
164
65
210
80
230
100
245
125
300
150
325
Yoke rest
Pipe piece
New
Pipe piece
Order No.
100
121 4507 010
106
121 4753 010
106
121 4508 010
123
--
140
121 4509 010
145
121 4510 010
156
121 4511 010
180
121 4512 010
225
121 4513 010
255
121 4514 010
290
121 4515 010
Bild_239
Bolt iaw
ISO 4014
Part number, abbreviation
211 5514 160
Bolt M12 x 70
211 5514 160
Bolt M12 x 70
211 5514 160
Bolt M12 x 70
--
211 5514 163
Bolt M16 x 80
211 5514 163
Bolt M16 x 80
211 5514 174
Bolt M16 x 110
211 5514 179
Bolt M16 x 120
211 5514 166
Bolt M16 x 90
211 5514 179
Bolt M16 x 120
211 5514 175
Bolt M20 x 110
When exchanging "old" for "new", please
note this additionally in your order
9 E
Nut iaw
Qty
ISO 4032
221 2513 120
4x Each
Nut M12
221 2513 120
4x Each
Nut M12
221 2513 120
4x Each
Nut M12
--
--
221 2513 121
4x Each
Nut M16
221 2513 121
4x Each
Nut M16
221 2513 121
4x Each
Nut M16
221 2513 121
8x Each
Nut M16
221 2513 121
8x Each
Nut M16
221 2513 121
8x Each
Nut M16
221 2513 122
8x Each
Nut M20
