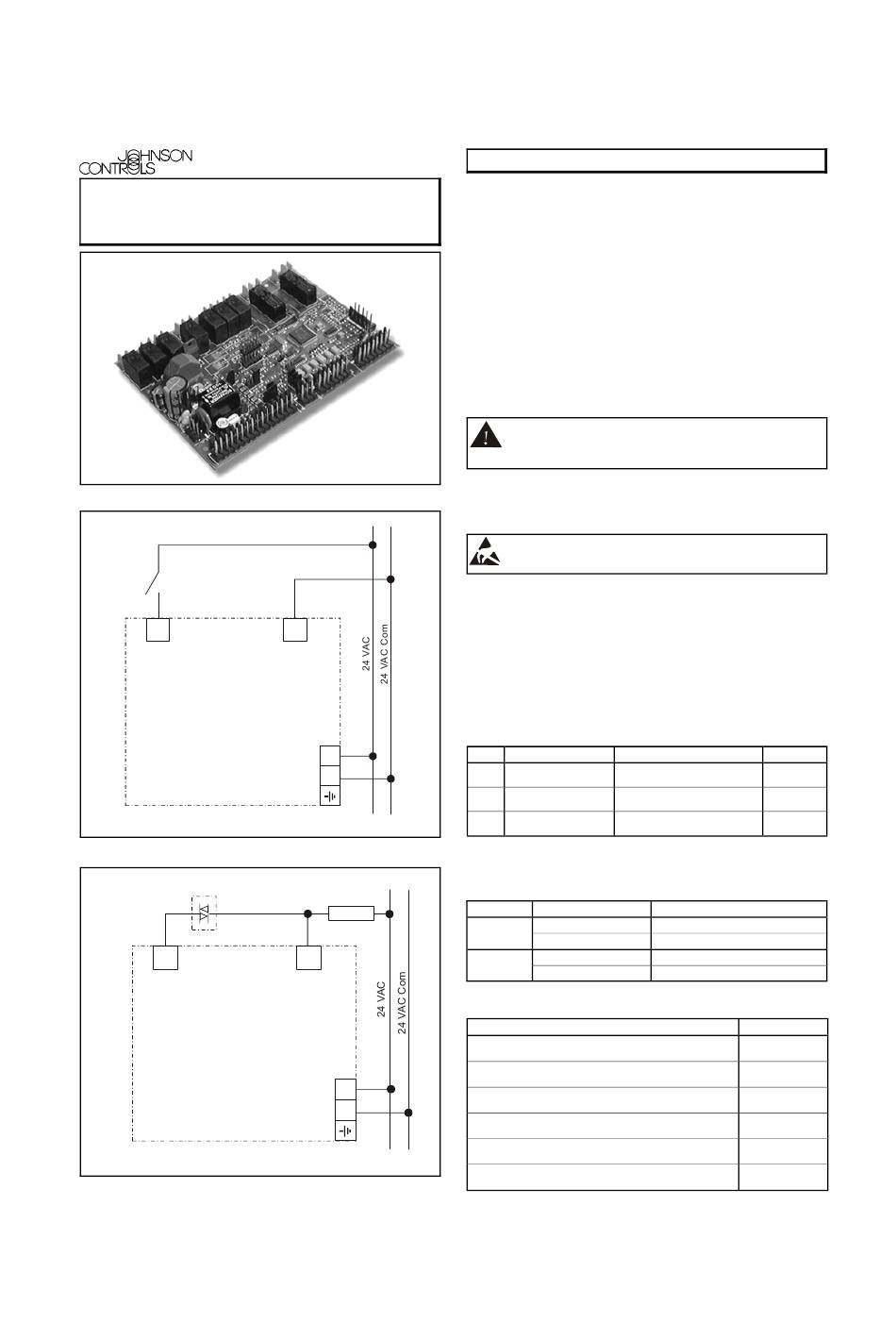

Johnson Controls FX10 Advanced Anleitung

FX10 "Advanced"
Programmable Electronic Controller
for HVAC and Refrigeration Applications
48
DI 7
FX10-003_03 2003
Figure 1: Digital Input wiring with relays
24 VAC triac
(from thermostat)
48
DI7
FX10-004_03 2003
Figure 2: Digital Input with 24 VAC Triacs outputs of a thermostat
P/N 24-85737-564 Rev. C
Issue Date: 06 2004
42
24 V Com
24 V
22
24 V
21
Com
Load
42
24 V Com
24 V
22
24 V
21
Com
ENGLISH
READ THIS INSTRUCTION SHEET
AND THE SAFETY WARNINGS CAREFULLY BEFORE INSTALLING AND SAVE
IT FOR FUTURE USE.
In accordance to EN 60730 the FX10 is an incorporated electronic controller
of type 1B action. It is suitable for use
in normal polluted environments.
For more information please refer to the FX10 "Advanced" Product Bulletin.
General Features

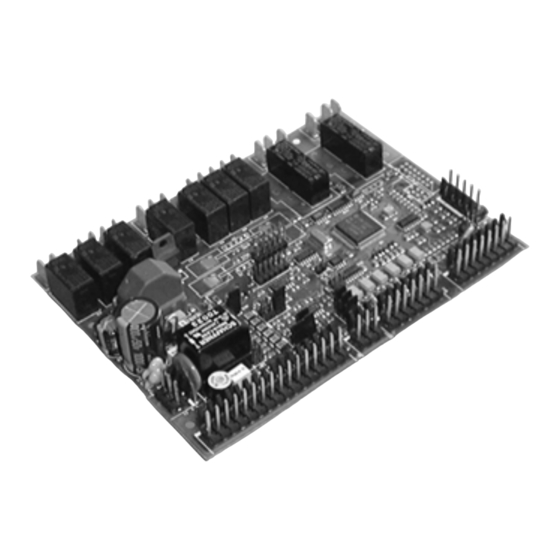

The FX10 "Advanced" is a high performance, programmable controller.
It is freely configurable and can adapt to virtually any applications, thanks to its
configuration software FX-Tools.
Expansion Board
An expansion board is available to increase the I/O count of the FX10 "Advanced"
Controller of additional 4 AI's and 8 DO's. (see "Ordering Code").
The expansion board is connected to the main board via jumper (provided with the
expansion board).
For more information please refer to the FX10 "Advanced" Product Bulletin.
Wiring
WARNING
Power off the Controller
(hot connection and disconnection not allowed).
Figure 1: Digital Input wiring with relays.
Figure 2: Digital Input with 24 VAC Triacs outputs of a thermostat.
Figure 3: Drilling template and board dimensions
Figure 4: Main board and expansion board connection.
Figure 5: Wiring Diagram.
WARNING
The CMOS integrated circuits in the controller are sensitive to static cur-
rents. Take necessary precautions.
Mounting
1. Electrical panel mounting:
Prepare the holes on the electrical panel in order to fit the board holders.
See "Drilling template and board dimensions" in Figure 3.
2. Insert the board holders within the appropriate holes in the PCB and snap the
controller on the electrical panel. Make sure that all board holders snap in place.
3. Wiring terminations are made by detachable connectors, which accept 18 AWG
cable in case the Molex type is selected or 20 AWG, in case the cage clamp
®
connection model is chosen.
4. Verify that the wiring has been correctly installed, and that voltage levels are
appropriate for the various input signals according to the application.
Analog Input Pin-strip Configuration
Input A99 NTC 10k
A11, A12, A13: closed; A11, A12, A13, A14, A15:
AI1
A14, A15: open. closed.
A21, A22, A23: closed; A21, A22, A23, A24, A25:
AI2
A24, A25: open. closed.
A31, A32, A33: closed; A31, A32, A33, A34, A35:
AI3
A34, A35: open. closed.
Safety features Pin-strip Configuration
If enabled DO1 and DO2 will be automatically disenergized whenever the relative DI
(DI1 or DI2) signals an alarm.
Pin Strip Pins
1 & 2
W1
2 & 3
1 & 2
W2
2 & 3
Ordering Codes
For the complete list of Ordering Codes please see the official JCI price list.
Device
FX10 "Advanced" Controller, 9 low power relays,
Molex connectors, application-less
®
FX10 "Advanced" Controller, 7 low power relays + 2 triacs,
Molex connectors, application-less
®
FX10 "Advanced" Controller, 9 low power relays,
Wago connectors, application-less
FX10 "Advanced" Controller, 7 low power relays + 2 triacs,
Wago connectors, application-less
XP Expansion, 4 low power relays + 4 triacs + 4 AI,
Molex connectors
®
XP Expansion, 4 low power relays + 4 triacs + 4 AI,
Wago connectors
(Figure 5)
Ratiometric
All open
All open
All open
(Figure 5)
Safety on DO1 disabled
Safety on DO1 enabled
Safety on DO2 disabled
Safety on DO2 enabled
Part Number
LP-FX10B31-002C
LP-FX10B32-002C
LP-FX10B33-002C
LP-FX10B34-002C
LP-XP10B10-000C
LP-XP10B11-000C
