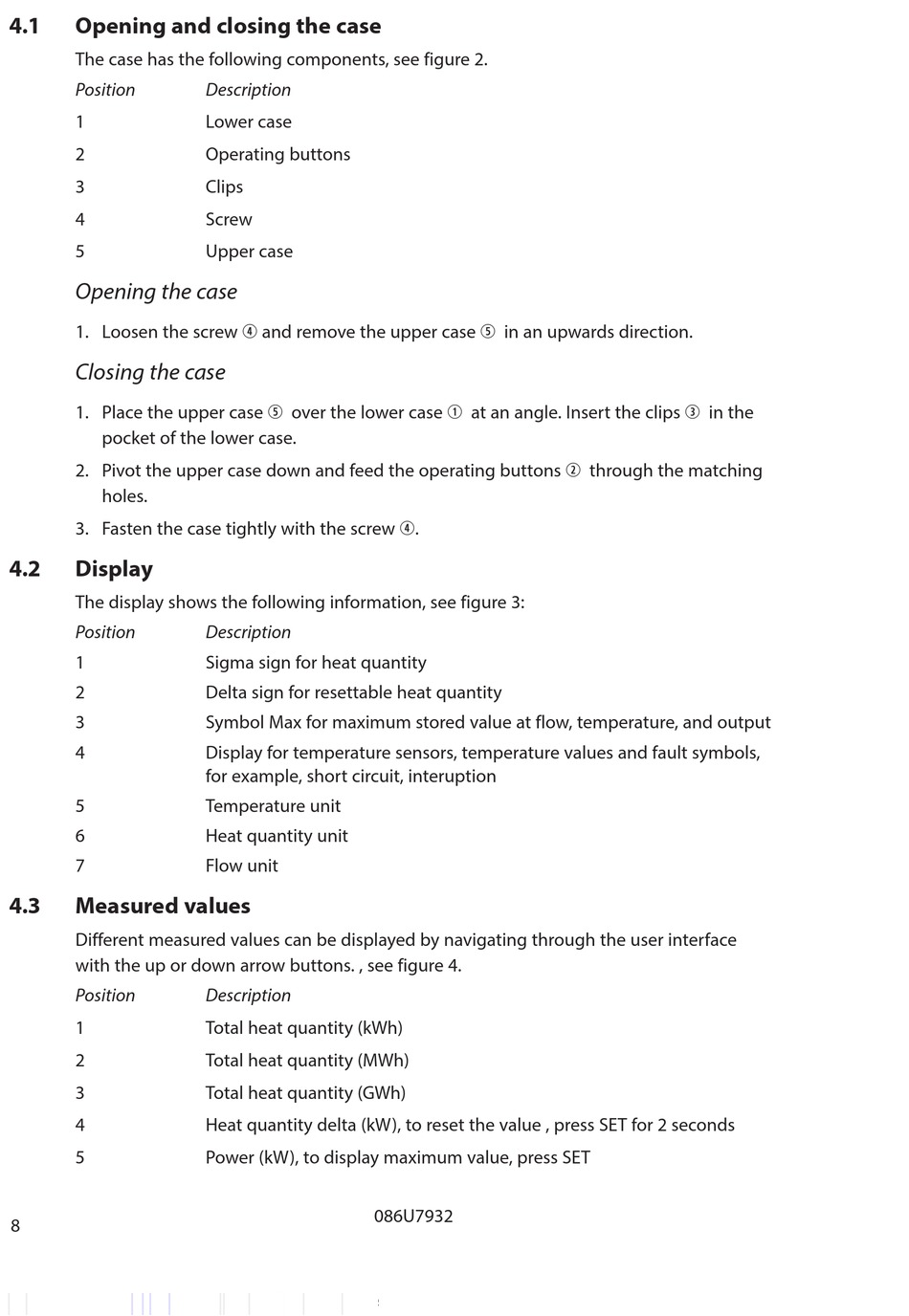

4.1 Opening and closing the case
The case has the following components, see figure 2 .
Position
1
2
3
4
5
Opening the case
1 . Loosen the screw r and remove the upper case t in an upwards direction .
Closing the case
1 . Place the upper case t over the lower case q at an angle . Insert the clips e in the
pocket of the lower case .
2 . Pivot the upper case down and feed the operating buttons w through the matching
holes .
3 . Fasten the case tightly with the screw r .
4.2 Display
The display shows the following information, see figure 3:
Position
1
2
3
4
5
6
7
4.3

Measured values

Different measured values can be displayed by navigating through the user interface
with the up or down arrow buttons . , see figure 4 .
Position
1
2
3
4
5
8
Description
Lower case
Operating buttons
Clips
Screw
Upper case
Description
Sigma sign for heat quantity
Delta sign for resettable heat quantity
Symbol Max for maximum stored value at flow, temperature, and output
Display for temperature sensors, temperature values and fault symbols,
for example, short circuit, interuption
Temperature unit
Heat quantity unit
Flow unit
Description
Total heat quantity (kWh)
Total heat quantity (MWh)
Total heat quantity (GWh)
Heat quantity delta (kW), to reset the value , press SET for 2 seconds
Power (kW), to display maximum value, press SET
