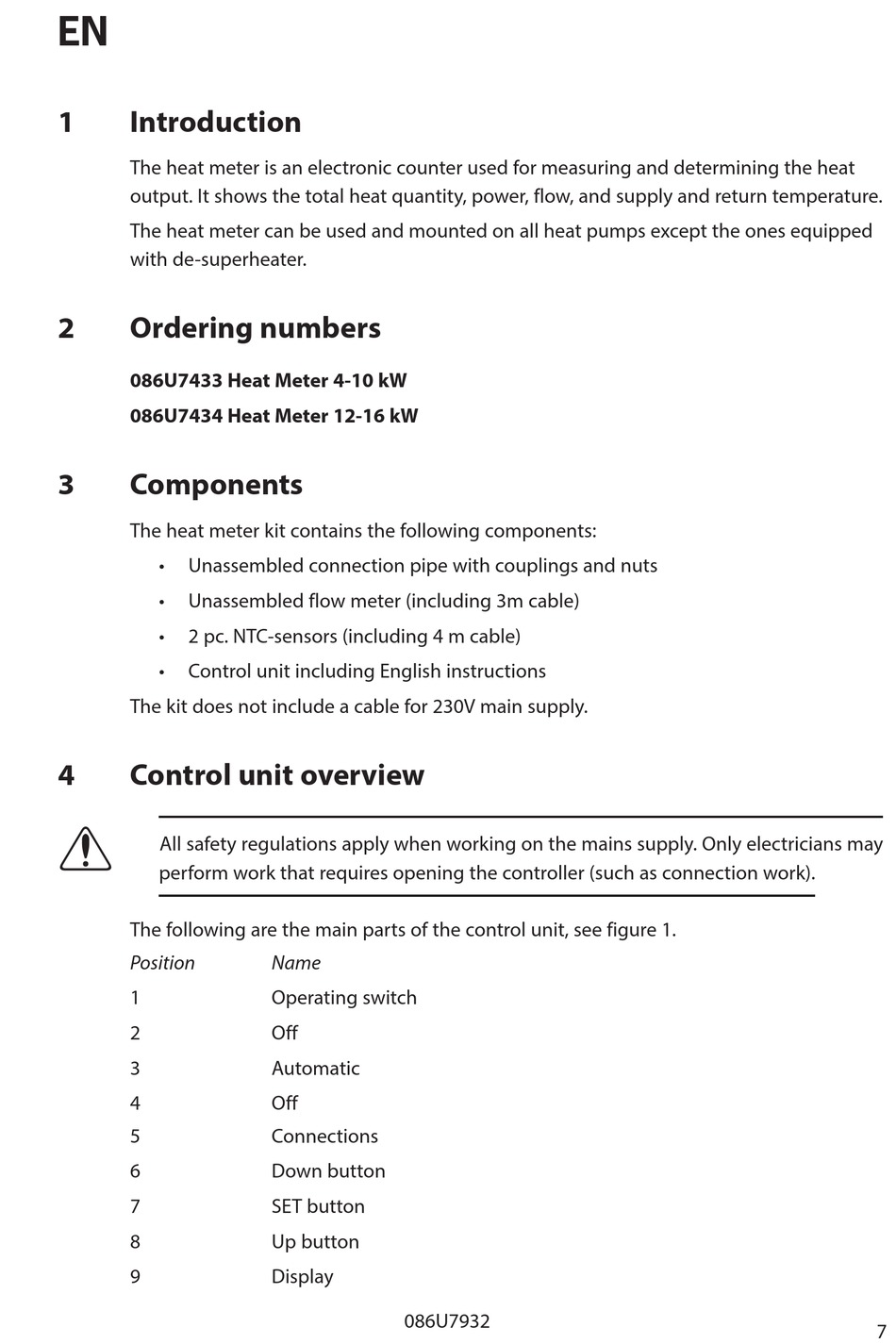

EN
1
Introduction
The heat meter is an electronic counter used for measuring and determining the heat
output . It shows the total heat quantity, power, flow, and supply and return temperature .
The heat meter can be used and mounted on all heat pumps except the ones equipped
with de-superheater .
2
Ordering numbers
086U7433 Heat Meter 4-10 kW
086U7434 Heat Meter 12-16 kW
3
Components
The heat meter kit contains the following components:
•
U nassembled connection pipe with couplings and nuts
•
U nassembled flow meter (including 3m cable)
•
2 pc . NTC-sensors (including 4 m cable)
•
C ontrol unit including English instructions
The kit does not include a cable for 230V main supply .
4
Control unit overview
⚠ ⚠
⚠ ⚠
All safety regulations apply when working on the mains supply . Only electricians may
perform work that requires opening the controller (such as connection work) .
The following are the main parts of the control unit, see figure 1 .
Position
1
2
3
4
5
6
7
8
9
Name
Operating switch
Off
Automatic
Off
Connections
Down button
SET button
Up button
Display
086U7932
7
