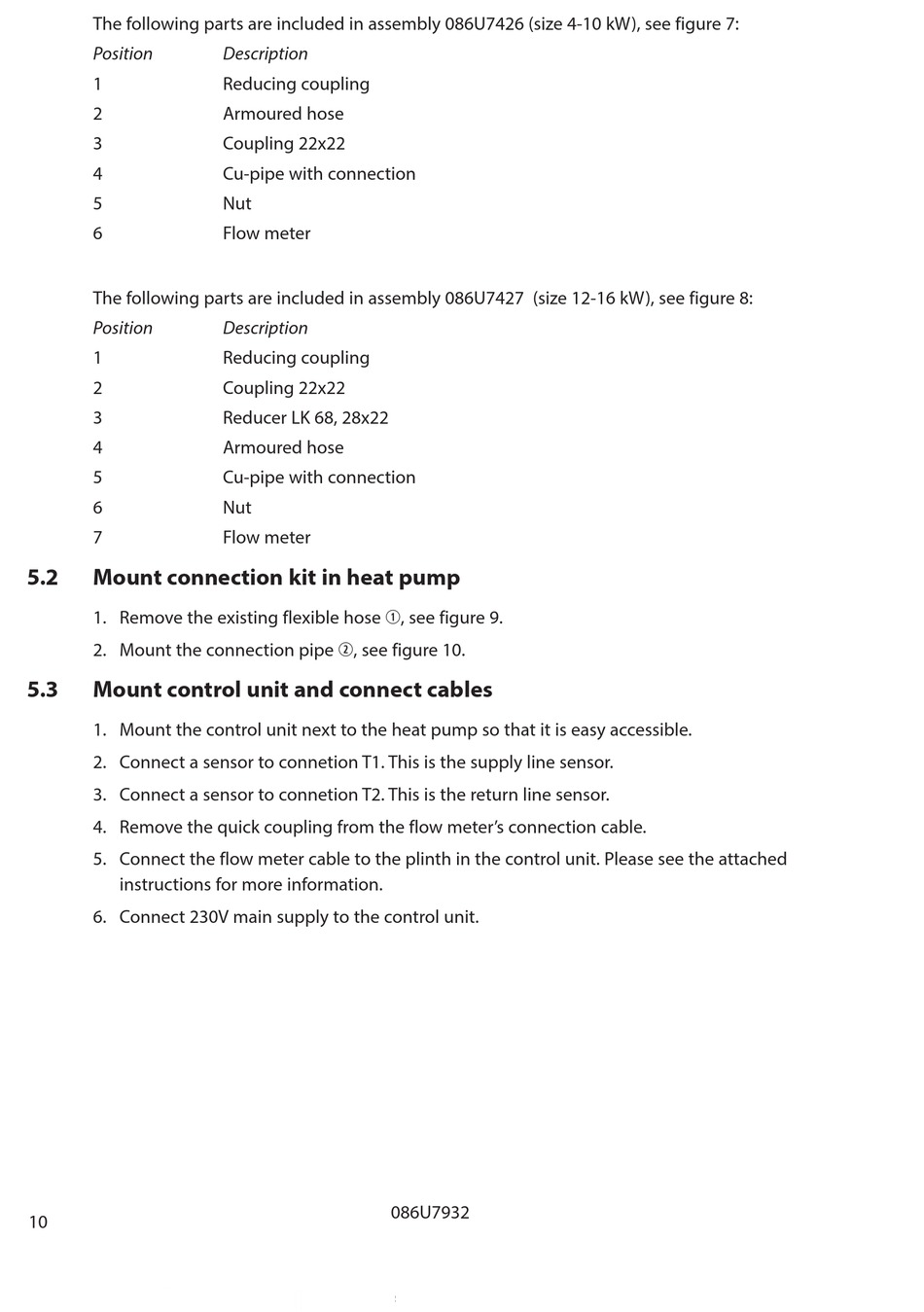

The following parts are included in assembly 086U7426 (size 4-10 kW), see figure 7:
Position
1
2
3
4
5
6
The following parts are included in assembly 086U7427 (size 12-16 kW), see figure 8:
Position
1
2
3
4
5
6
7
5.2 Mount connection kit in heat pump
1 . Remove the existing flexible hose q, see figure 9 .
2 . Mount the connection pipe w, see figure 10 .
5.3 Mount control unit and connect cables
1 . Mount the control unit next to the heat pump so that it is easy accessible .
2 . Connect a sensor to connetion T1 . This is the supply line sensor .
3 . Connect a sensor to connetion T2 . This is the return line sensor .
4 . Remove the quick coupling from the flow meter's connection cable .
5 . Connect the flow meter cable to the plinth in the control unit . Please see the attached
instructions for more information .
6 . Connect 230V main supply to the control unit .
10
Description
Reducing coupling
Armoured hose
Coupling 22x22
Cu-pipe with connection
Nut
Flow meter
Description
Reducing coupling
Coupling 22x22
Reducer LK 68, 28x22
Armoured hose
Cu-pipe with connection
Nut
Flow meter
