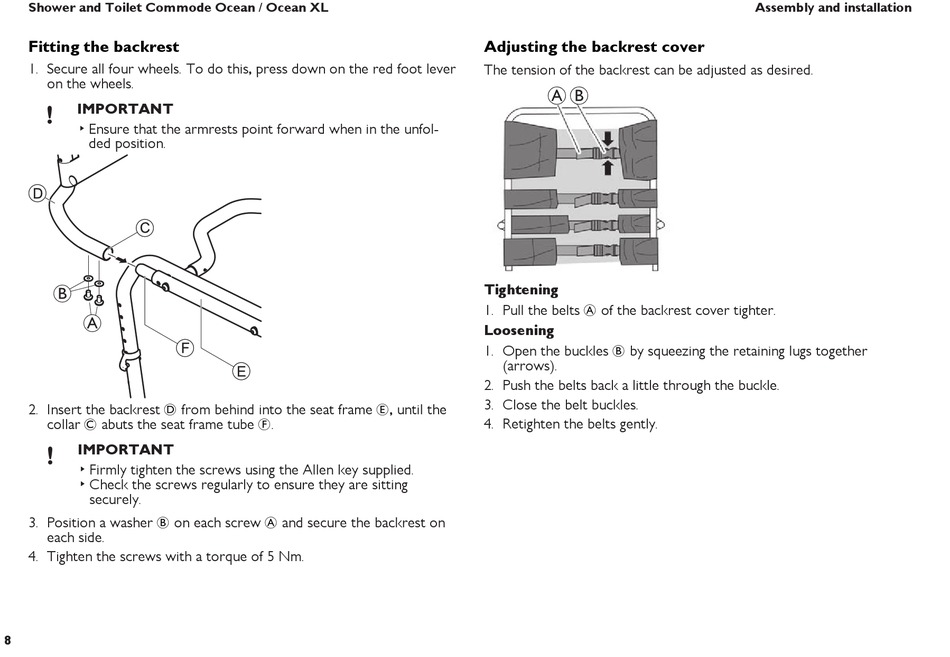

Shower and Toilet Commode Ocean / Ocean XL

Fitting the backrest

1. Secure all four wheels. To do this, press down on the red foot lever
on the wheels.
!
IMPORTANT
▸ Ensure that the armrests point forward when in the unfol-
ded position.
B
A
2. Insert the backrest
from behind into the seat frame E, until the
D
collar
abuts the seat frame tube F.
C
!
IMPORTANT
▸ Firmly tighten the screws using the Allen key supplied.
▸ Check the screws regularly to ensure they are sitting
securely.
3. Position a washer
on each screw
B
each side.
4. Tighten the screws with a torque of 5 Nm.
8
and secure the backrest on
A

Adjusting the backrest cover

The tension of the backrest can be adjusted as desired.
Tightening
1. Pull the belts
of the backrest cover tighter.
A
Loosening
1. Open the buckles
by squeezing the retaining lugs together
B
(arrows).
2. Push the belts back a little through the buckle.
3. Close the belt buckles.
4. Retighten the belts gently.
