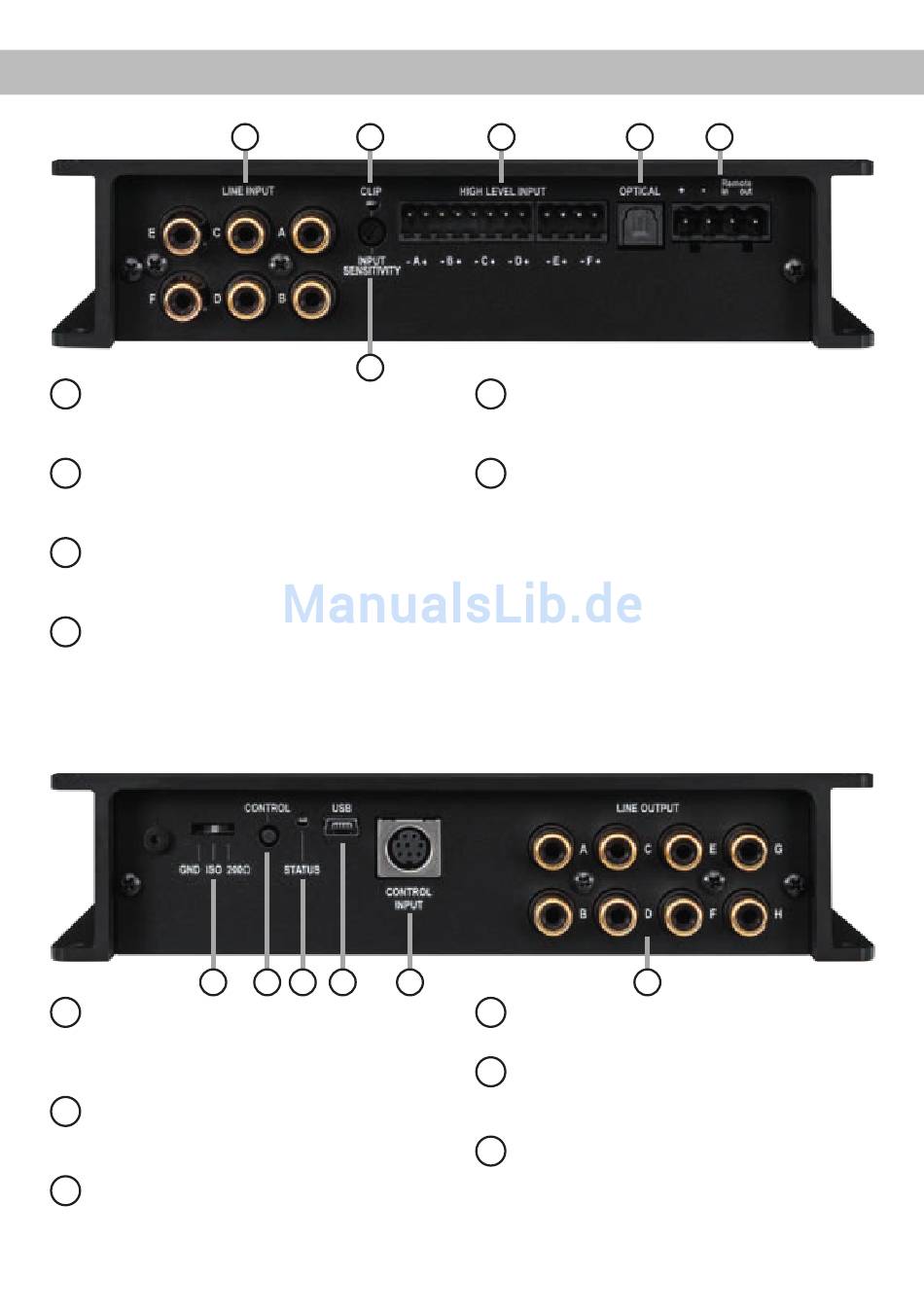

Connectors and control units
Line Input
1
RCA inputs for connecting pre-amplifier
signals.
Clipping LED
2
This LED lights up red if one of the analog
inputs is overdriven.
.
Input Sensitivity
3
Control for adjusting the input sensitivity of
the low- and highlevel inputs.
Highlevel Input
4
Highlevel speaker inputs for connecting a
factory radio or an aftermarket radio without
pre-amp / line outputs.
Ground lift switch
7
Can be used to define the connection be-
tween the grounding of the inputs and out-
puts.
Control pushbutton
8
Use this button to either switch between the
setups or initiate a reset of the device.
Status LED
9
This LED indicates the operating mode of the
DSP and which setup has been chosen.
14
1
2
3
7
8
9
10
4
Optical Input
5
Optical input for digital stereo signals (SPDIF
format).
Power Input
6
Connector for the DC power supply with an
additional remote in- and output. The remote
output has to be used to switch on external
amplifiers.
11
USB input
10
Connects the HELIX DSP.2 to your PC.
Control Input
11
Multifunction interface for e.g. an optional
remote control or other HELIX accessory.
Line Output
12
Line outputs for connecting amplifiers. Make
sure that the remote output is used to turn on
these devices.
