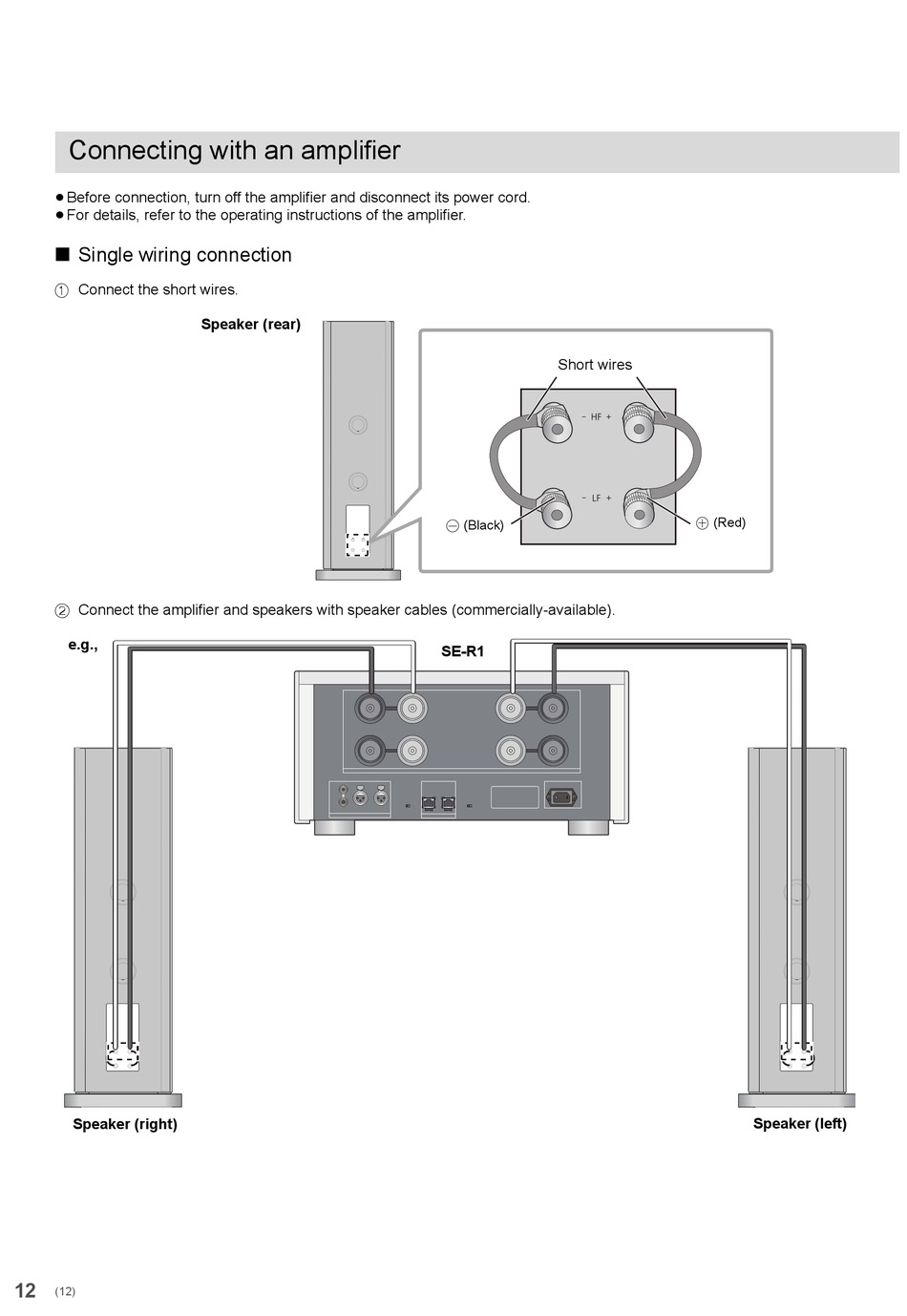

Connecting with an amplifier

≥ Before connection, turn off the amplifier and disconnect its power cord.
≥ For details, refer to the operating instructions of the amplifier.
∫ Single wiring connection
1 Connect the short wires.
2 Connect the amplifier and speakers with speaker cables (commercially-available).
e.g.,
Speaker (right)
12
(12)
Speaker (rear)
Short wires
- (Black)
SE-R1
+ (Red)
Speaker (left)
