1. Introduction
To all residents of the European Union
Important environmental information about this product
This symbol on the device or the package indicates that disposal of the
device after its lifecycle could harm the environment. Do not dispose of the
unit (or batteries) as unsorted municipal waste; it should be taken to a
specialized company for recycling. This device should be returned to your
distributor or to a local recycling service. Respect the local environmental
rules.
If in doubt, contact your local waste disposal authorities.
Thank you for choosing Velleman! Please read the manual thoroughly before bringing this
device into service. If the device was damaged in transit, don't install or use it and contact
your dealer. Your HDMIAMP comes with 1 x HDMI™ repeater, 1 x PSU and this manual.
The HDMIAMP is a professional HDMI™ amplifier with built-in equalizer. It uses gold-
plated connectors and allows you to connect two HDMI™ cables together and extend the
HDMI™ signal to up to 50 m (24 AWG cable @ 1.65 Gbps). The HDMIAMP is the best
solution for extended HDMI™ connections up to 50 m.
2. Features
• supports 1080p HDTV
• extendable connection length up to 50 m (24 AWG HDMI™ cable @ 1.65 Gbps)
• HDMI™ 1.3 compliant (pixel clock rate up to 2.25 Gbps)
• HDCP compliant
• DTS™ and Dolby
• gold-plated connectors
• maintains same image quality as source (up to 1080p)
• stylish metal housing, free of interference
• LED indication for cable orientation

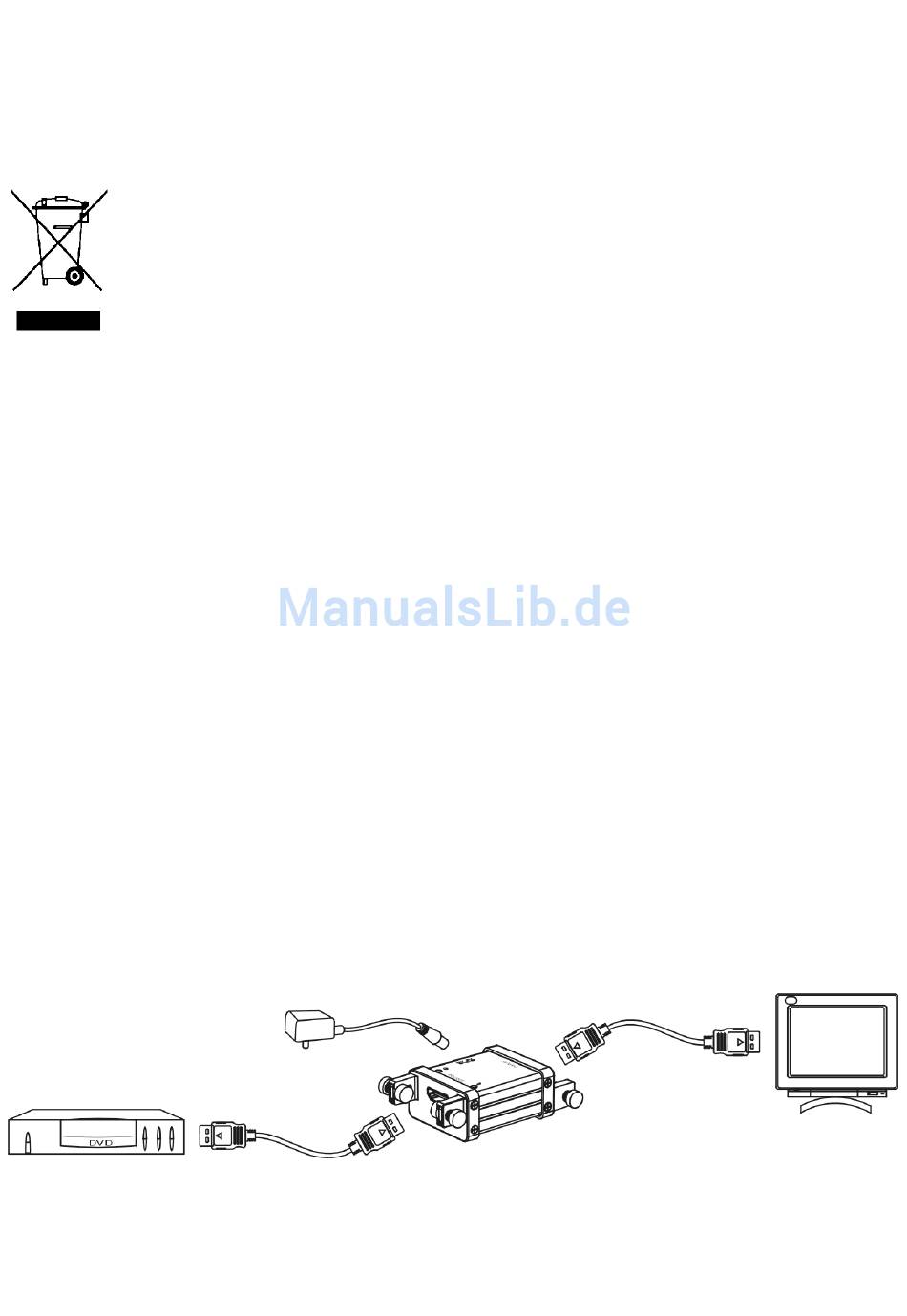

3. Connection Example

HD DVD

USER MANUAL

®
7.1 channel surround audio support
PSU
input
HDMI™ cable
(24 AWG – up to 50 m)
max. 10 m
output
HDTV
