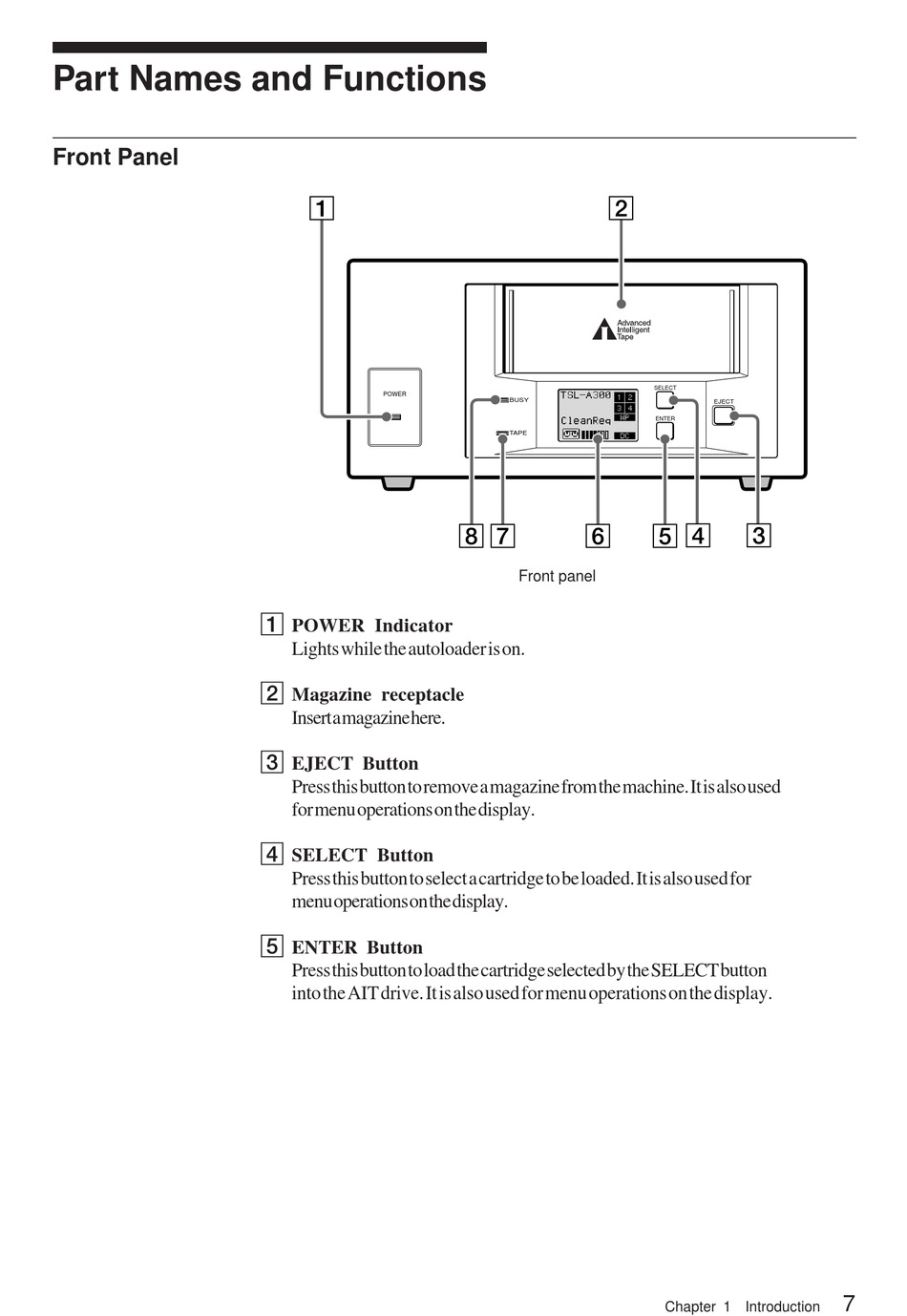

Part Names and Functions

Front Panel

1
POWER
1
POWER Indicator
Lights while the autoloader is on.
2
Magazine receptacle
Insert a magazine here.
3
EJECT Button
Press this button to remove a magazine from the machine. It is also used
for menu operations on the display.
4
SELECT Button
Press this button to select a cartridge to be loaded. It is also used for
menu operations on the display.
5
ENTER Button
Press this button to load the cartridge selected by the SELECT button
into the AIT drive. It is also used for menu operations on the display.
2
BUSY
TAPE
8 7 6
Front panel
SELECT
EJECT
ENTER
5 4 3
Chapter 1 Introduction
7
