Wiring - Becker Centronic VarioControl VC320 Montage- Und Betriebsanleitung

Caution
• Risk of injury due to electric shock.
• Connection may only be performed by a qualified electri-
cian!
•
When mounting the roller shutter, always ensure that the
cables cannot be damaged when operating the system.
Cover any sharp edges over which the cable runs with ap-
propriate protective tape. If the cable is damaged, it may
only be replaced by the manufacturer.
• If more than one drive is going to be operated by the radio
receiver, the drives must be decoupled by relay controls.
There is no need for decoupling in the case of our drives
with electronic limit switching.
•
Always take into account the device switching current.

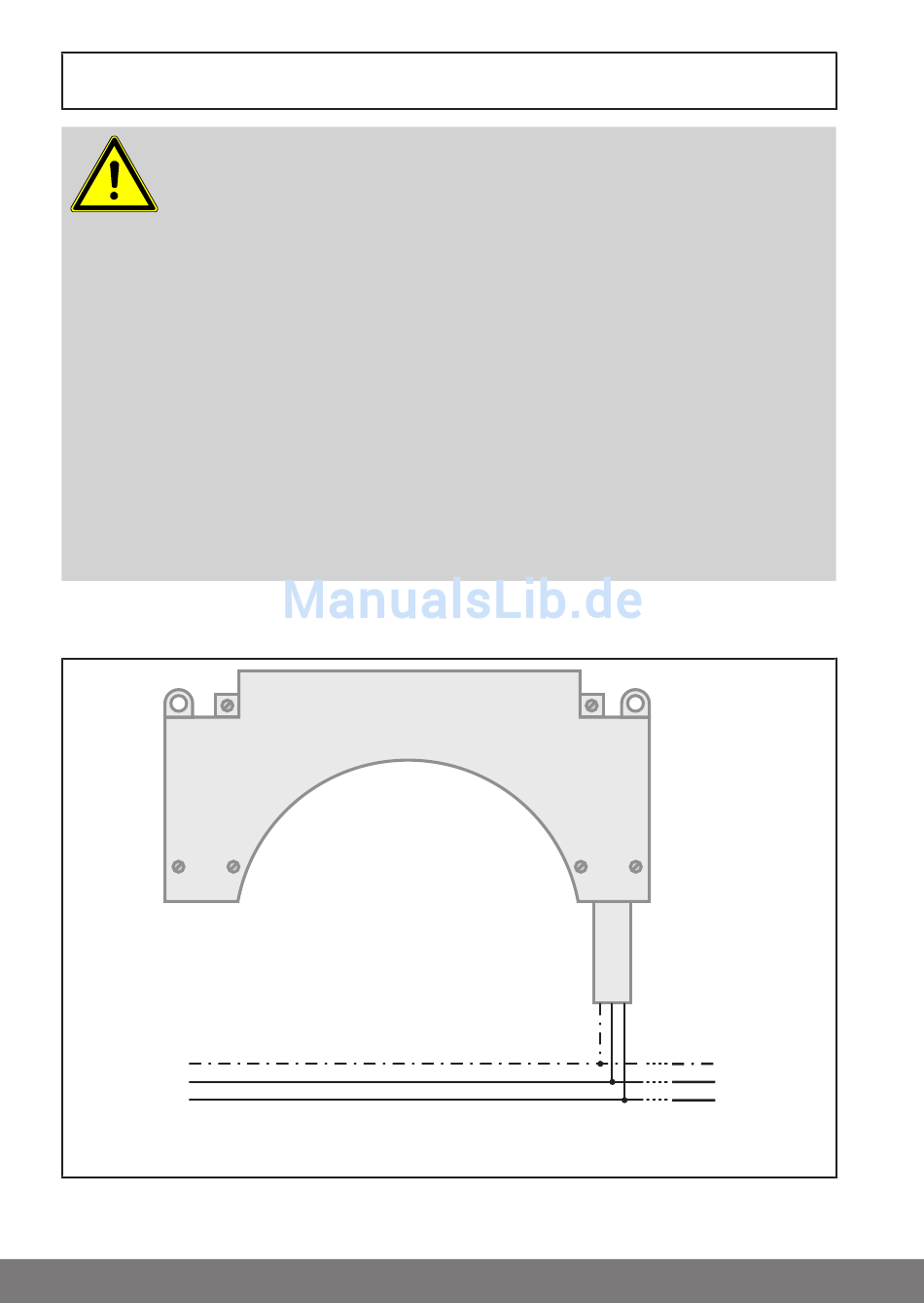

Switch the VC320 on as follows:
PE
N
L
20 - en

Wiring

Mains 230 V / 50 Hz
