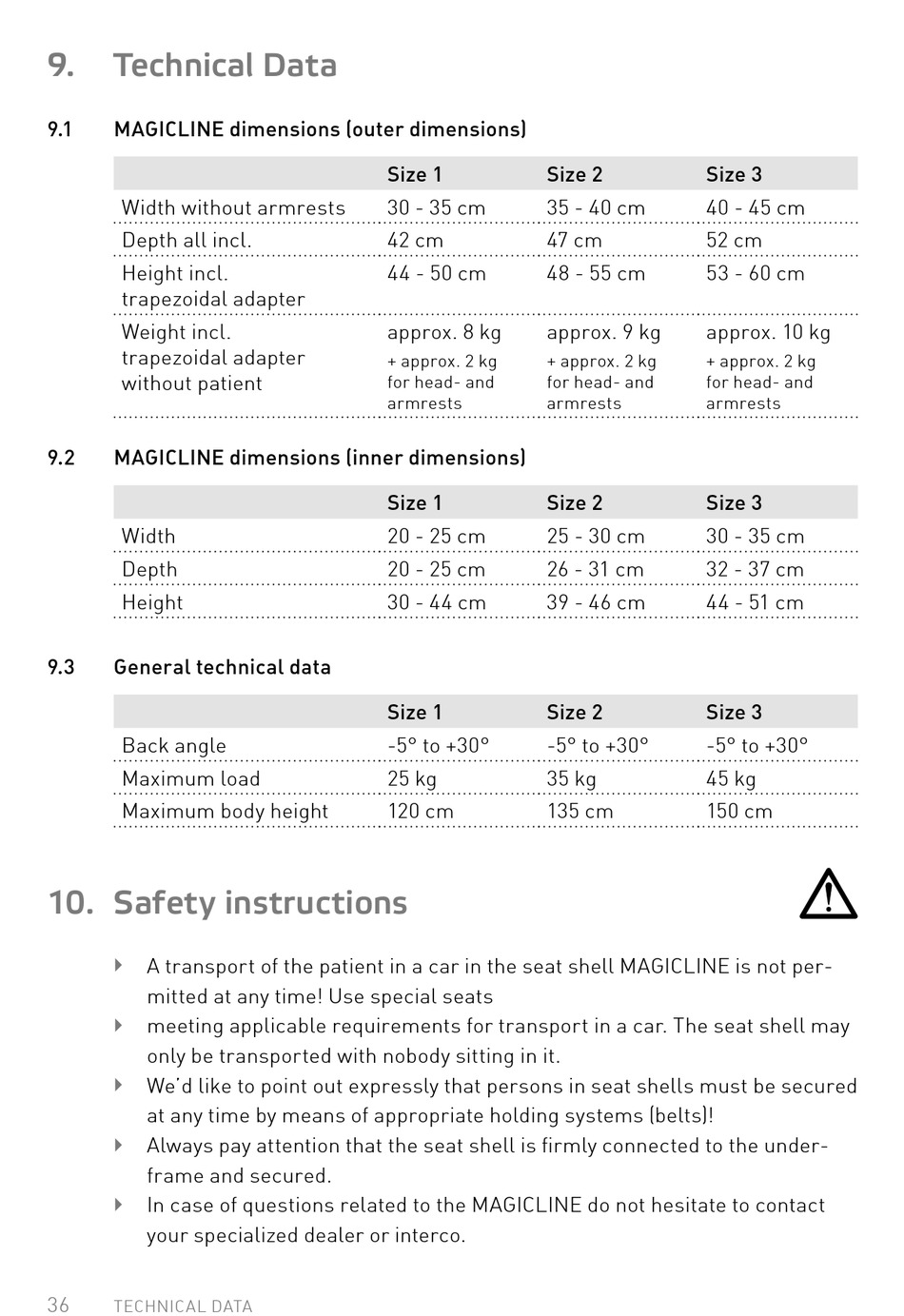

Technical Data

9.1 MAGICLINE dimensions (outer dimensions)
Width without armrests
Depth all incl
Height incl
trapezoidal adapter
Weight incl
trapezoidal adapter
without patient
9.2 MAGICLINE dimensions (inner dimensions)
Width
Depth
Height
9.3 General technical data
Back angle
Maximum load
Maximum body height

10. Safety instructions

A transport of the patient in a car in the seat shell MAGICLINE is not per-

mitted at any time! Use special seats
meeting applicable requirements for transport in a car� The seat shell may

only be transported with nobody sitting in it�
We'd like to point out expressly that persons in seat shells must be secured

at any time by means of appropriate holding systems (belts)!
Always pay attention that the seat shell is firmly connected to the under-

frame and secured�
In case of questions related to the MAGICLINE do not hesitate to contact

your specialized dealer or interco�
