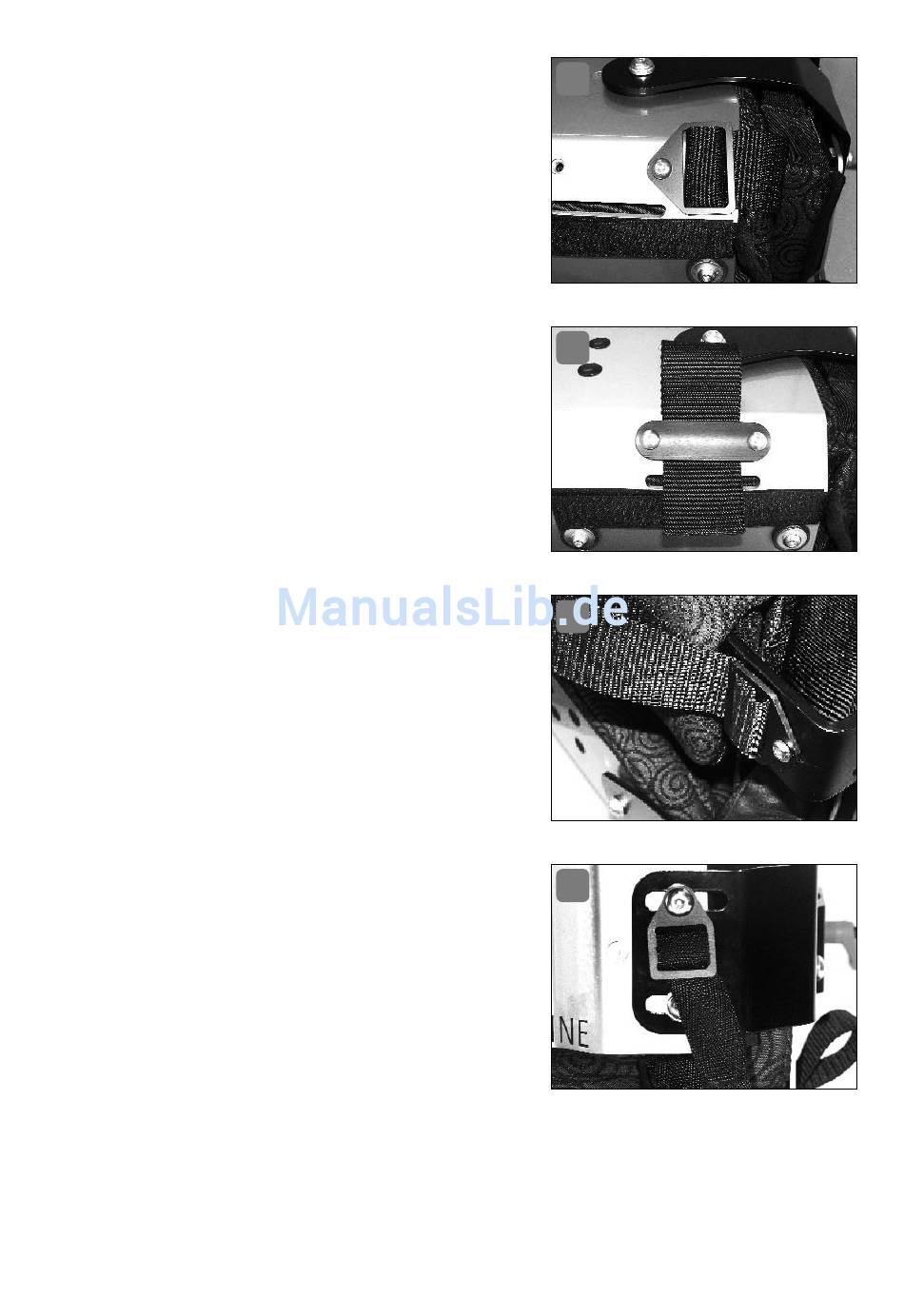

A belt is mounted at a 45°-angle after a belt
holding device has been mounted to the rear
threaded bore and the belt is inserted be-
tween backrest and lateral parts (Photo 21)�
Mounting at the 70°-angle is performed on
the lower side of the lateral parts after a belt
holding device has been mounted between
the two threaded bores and the belt is in-
serted through the guiding slots provided on
the lower side of the lateral parts and moved
upwards between lateral parts and seat area
(Photo 22)�
7.2 Belt for the breast
To mount a belt for the breast MAGICLINE is
provided with a mount on the lateral trunk
guiding pressure pads (thorax pressure
pads)� Fasten the belt for the breast to the
threaded bores provided (Photo 23)�
7.3 Brace Belt 4-point
Mounting at the brace belt 4-point is per-
formed on the lower side of the lateral parts�
After a belt holding device has been mounted
between the two threaded bores, the belt is
inserted through the guiding slots provided
on the lower side of the lateral parts and
moved upwards between lateral parts and
seat area�
32
OPTIONAL EQUIPMENT: MOUNTING AND OPERATION
21
22
23
24
