7.4 P ressure pad for breast
and shoulders

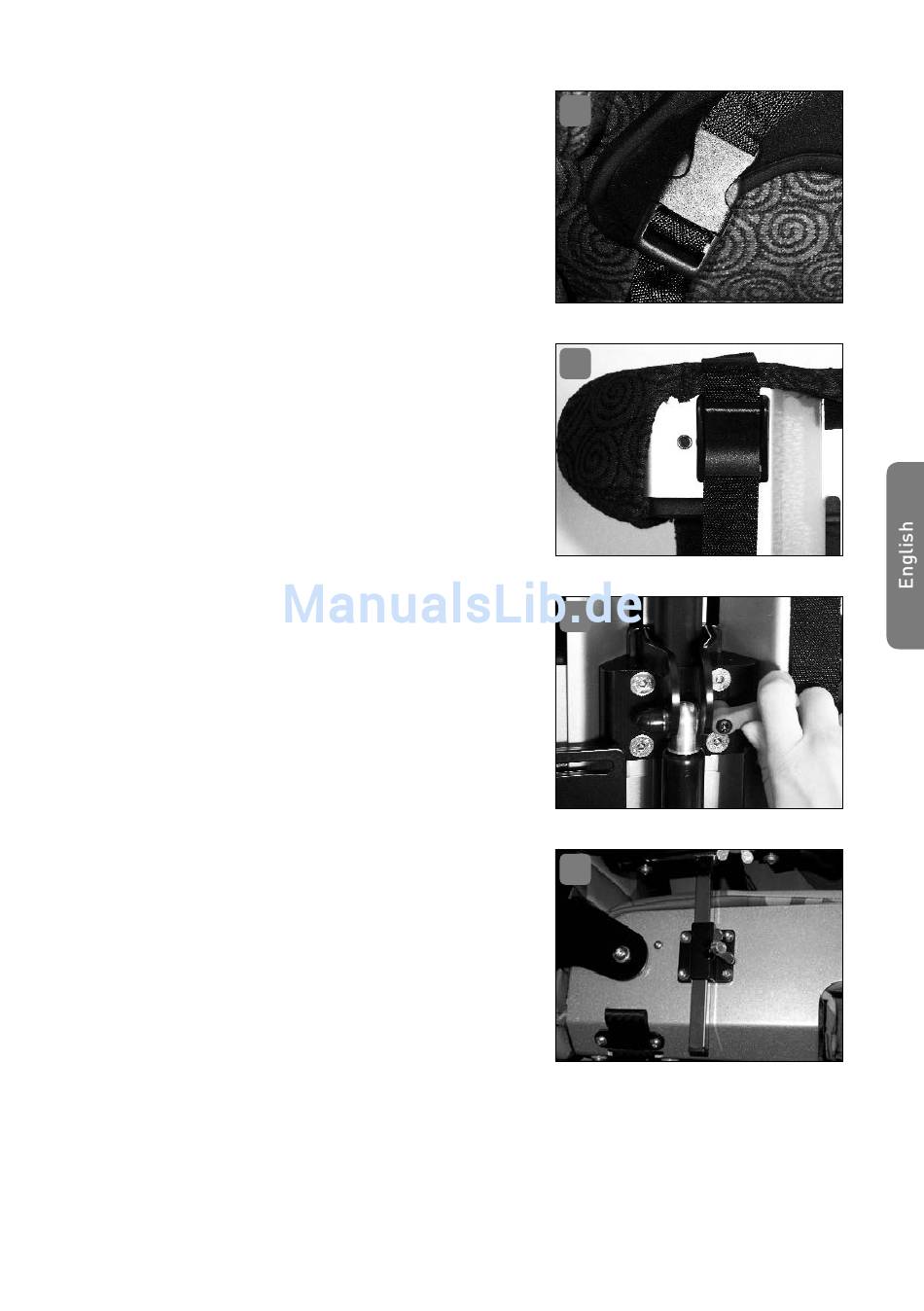

MAGICLINE can be equipped with different
pressure pads for breast and shoulders�
Fastening is identical with the different de-
signs�
The lower belts of the pressure pads for
breast and shoulders are fastened to the
fastening elements of the lateral parts on the
rear of the seat shell and moved to the front
between backrest and seat area (Photo 24)�
At the top, the belts are inserted into the tilt-
ing buckle on the rear of the seat shell and
fixed by the tilting buckle (Photo 26)�
To fasten the patient's belt firmly the pres-
sure pad for breast and shoulders is loos-
ened at the connecting elements (Photo 25)
to lay it over the patient� To adapt the pres-
sure pad as to length, use the tilting buckle
at the backrest (Photo 26)�
7.5 Headrest systems
MAGICLINE can be equipped with different
headrest pressure pads� The example shows
the ALULINE headrest system�
Fasten the headrest by loosening the fixing
lever at the headrest mount found at the up-
per part of the backrest (Photo 27), inserting
the headrest holding device and tightening
the lever again�
The same method is used when fixing the
head rest with a wing screw� First the screw
is loosened, the the head rest is adjusted, finally the screw is tightened once
again (Photo 28)�
