7.6 LWS support
MAGICLINE can be equipped with a bur-type
LWS support�
Simply fasten it by means of a bur-type con-
nection below the cover of the backrest at the
therapeutically required height (Photo 29)�
7.7

Armrests

MAGICLINE can be equipped with different
armrests� Fasten the armrest by loosen-
ing the fixing lever at the armrest mount
(Photo 30) on the right and left on the sides of
the seat shell, inserting the headrest holding
device and tightening the lever again�
7.8 Abduction wedge (spreading wedge)
Abduction wedges can be obtained in two
designs for MAGICLINE, rigid and swivel-
ling� Both are plugged onto the holding de-
vice (square pipe) to the lower side of the
seat shell and fixed by means of a fixing lever
(Photo 31)�
7.9 T runk guiding pressure pads
(thorax pressure pads)
For this item two designs can be obtained
for assembly to MAGICLINE, a rigid one
(Photo 32) and a design with swivelling de-
vice (Photo 33)�
Both are fastened to the mount rails on the
back of the seat shell by means of two hexagon
socket screw keys (Photo 32)�
34

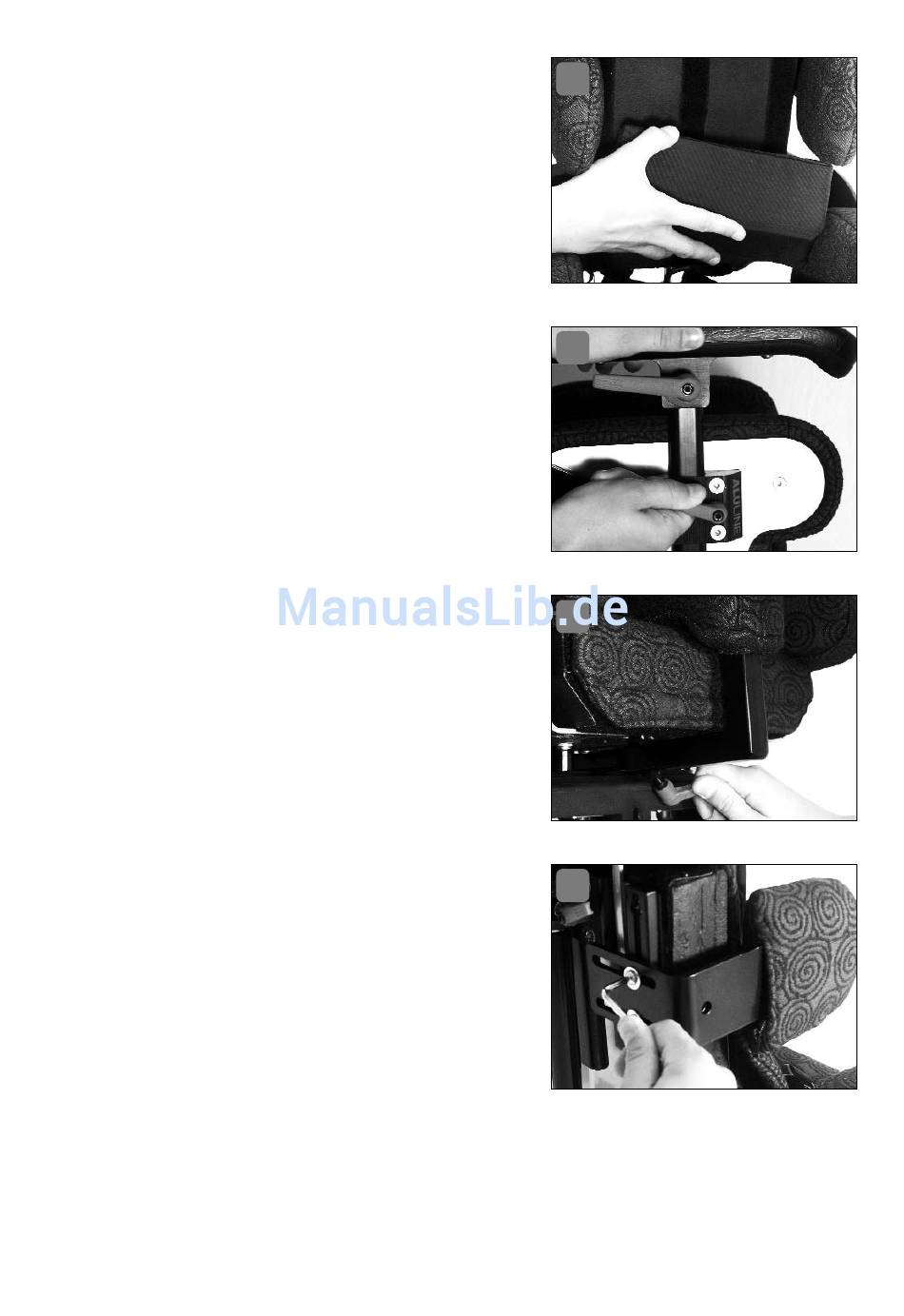

OPTIONAL EQUIPMENT: MOUNTING AND OPERATION
29
30
31
32
