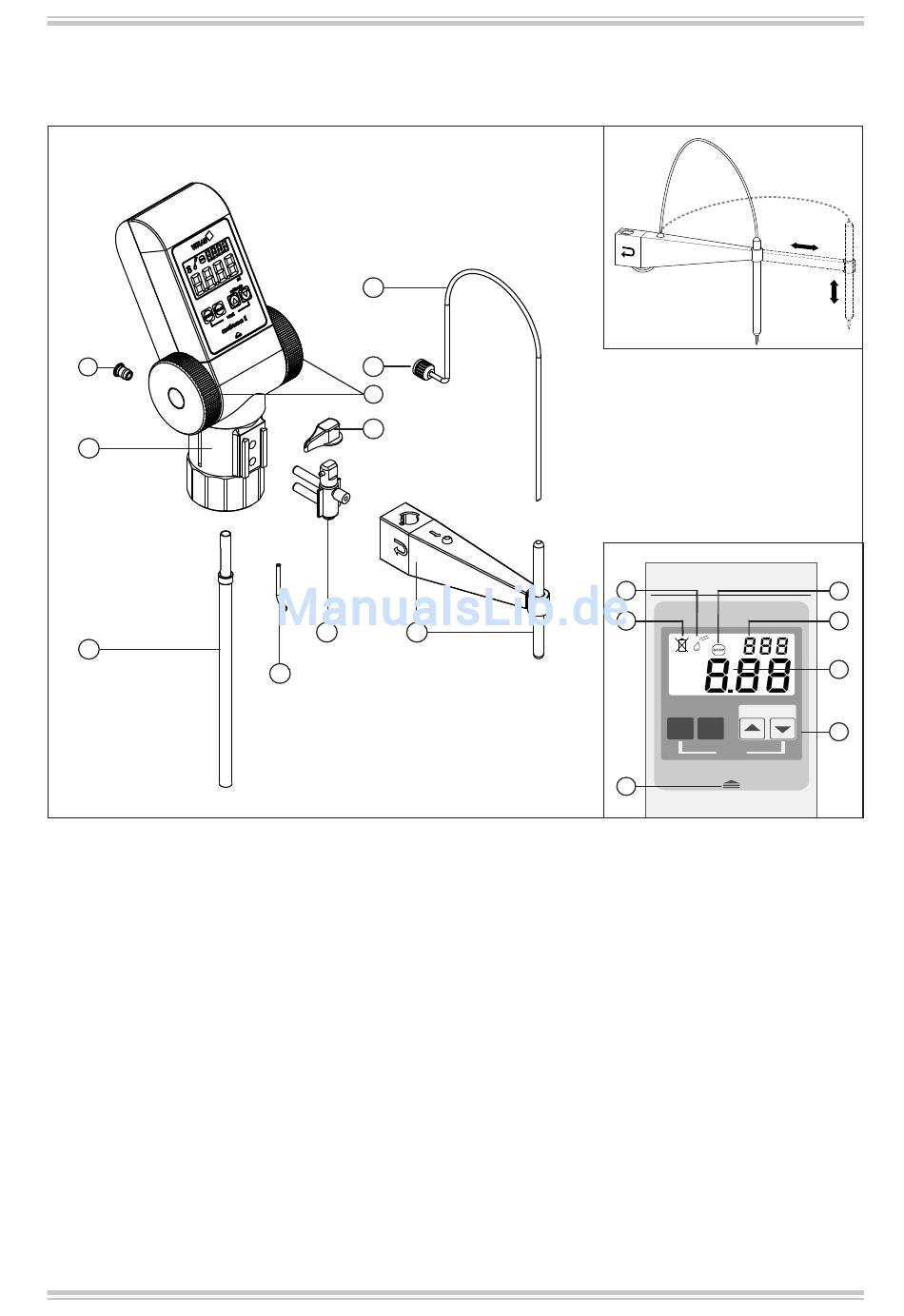

6. Components

9
10
11
1. Battery indicator
2. Titrating mode indicator
3. Pause indicator
4. Calibration mode indicator
5. Titrated volume display (0.00 to 999.9 ml)
6. Control keys
7. Lock
8. Hand wheels
9. Air vent opening cap (filter connection)
10. Valve head (GL 45)
11. Telescopic intake tube
12. Valve switch
15
14
8
12
13 16
17
2
1
7
13. Discharge/recirculation valve
14. Securing screw
15. Discharge tube
16. Discharge tube support, adjustable
17. Recirculation tube
3
4
5
ml
Calibrate
6
Start Pause
Reset
